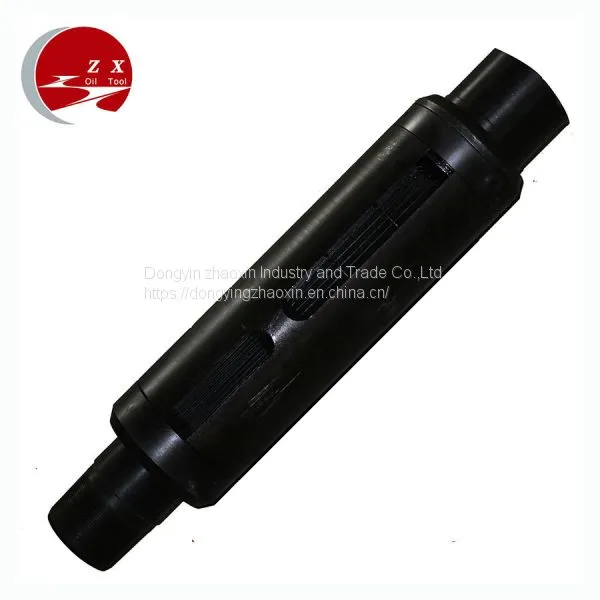

Oil Well Down Hole Tools Torque Anchor Used for Progressive Cavity Pump
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1999
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin or qingdao or shanghai or lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Torque Anchor for Pcp Pump/Oil Downhole Tools Torque Anchor for Screw Pump for Oil Drilling and GasNegotiableMOQ: 1 Piece -
High Quality Oil Well Pcp Pump Torque AnchorUS$ 1 - 800MOQ: 1 Set
-
Oil Well Pumping Unit Torque Anchor With Good Quality From Chinese ManfufacturerUS$ 450 - 600MOQ: 5 Pieces
-
Oil Down Hole Tools Pcp Pump Torque Anchor From China Professional ManufacturerNegotiableMOQ: 10 Pieces
-
Oil Well Down Hole Tools Torque Anchor Used for Progressive Cavity PumpNegotiableMOQ: 10 Pieces
Product Description
Torque anchor is used to take the reactive torque given by the friction created between the rotor and stator of the pump with progressive cavities, to prevent the tubing from unscrewing. It is mounted under or just above the pump. It uses the principle of a mandrel with two slips (one floating,one stationary) camming in opposite directions anchoring the tubing string to the inner casing wall.
The specifications and main parameters
Code |
Case setup dia.[mm] |
Connection[inch] |
5-1/2 |
119…139 |
2 – 7/8 EU |
7 |
152…172 |
2 – 7/8 EU or 3 – 1/2 EU |
9-5/8 I |
215…235 |
3 – 1/2 EU |
9-5/8 II |
220…240 |
3 – 1/2 EU |
Alternative connections and specially engineered sizes are available upon request | ||
product show :
