Technical Parameters
Full Size Coupling
Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Thread D.(in) | Length of Wrench Square (mm) | Hardness(HRA) |
5/8" | 38.10 | 101.6 | 15/16" | 31.8 | 56-62 |
3/4" | 41.28 | 1-1/16" | |||
7/8" | 46.00 | 1-3/16" | |||
1" | 55.60 | 1-3/8" | 38.1 | ||
1-1/8" | 60.33 | 114.3 | 1-9/16" |
Slim Hole Coupling
Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Thread D.(in) | Length of Wrench Square (mm) | Hardness(HRA) |
5/8" | 31.75 | 101.6 | 15/16" | 31.8 | 56-62 |
3/4" | 38.10 | 1-1/16" | |||
7/8" | 41.30 | 1-3/16" | |||
1" | 50.80 | 1-3/8" | 38.1 |
Full Size Sub-coupling
Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Small End Thread D. | Big End Thread D. | Hardness(HRA) |
5/8"-3/4" | 41.28 | 101.6 | 15/16" | 1-1/16" | 56-62 |
3/4"-7/8" | 46.00 | 1-1/16" | 1-3/16" | ||
7/8"-1" | 55.60 | 114.3 | 1-3/16" | 1-3/8" | |
1"-1-1/8" | 60.33 | 127.0 | 1-3/8" | 1-9/16" |
Slim Hole Sub-coupling
Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Small End Thread D. | Big End Thread D. | Hardness(HRA) |
5/8"-3/4" | 38.10 | 101.6 | 15/16" | 1-1/16" | 56-62 |
3/4"-7/8" | 41.30 | 1-1/16" | 1-3/16" | ||
7/8"-1" | 50.80 | 114.3 | 1-3/16" | 1-3/8" |
Full Size Polished Connection
Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Thread D.(in) | Vanish Cone | Hardness(HRA) |
5/8" | 38.10 | 101.6 | 15/16" | 9O | 56-62 |
3/4" | 41.28 | 1-1/16" | |||
7/8" | 46.00 | 1-3/16" | |||
1" | 55.60 | 1-3/8" | |||
1-1/8" | 60.33 | 114.3 | 1-9/16" |
Slim Hole Polished Connection
Size(in) | Coupling O.D W(mm) (+0.13,-0.25) | Length L(mm) (+1.57,-0.00) | Thread D.(in) | Vanish Cone | Hardness(HRA) |
5/8" | 31.75 | 101.6 | 15/16" | 9O | 56-62 |
3/4" | 38.10 | 1-1/16" | |||
7/8" | 41.30 | 1-3/16" | |||
1" | 50.80 | 1-3/8" |
Coupling Mechanical Properties
Tensile Strength Rm(Mpa) | Yield Strength Rel(Mpa) | Elongation Percentage A(%) | Reduction Percentage of Area Z(%) |
≥655 | ≥405 | ≥16 | ≥48 |

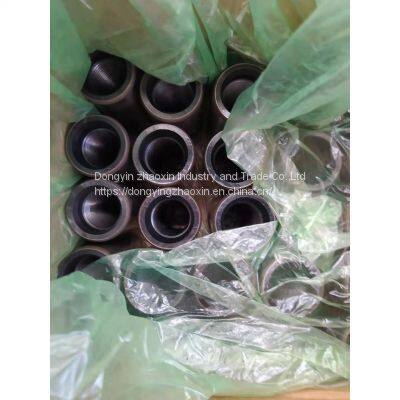

Picture :
We are a professional manufacturer of oil down hole tools , high quality and reasonable price .
Any problem about our products , welcome here .
Contact person :Alisa
