Home > Products > BM Series Analog Signal Isolator > Acrel BM-DV/VI One in and two out isolator powered DC 24V input DC 0-5V output 4-20mA TS35 rail mounting

Acrel BM-DV/VI One in and two out isolator powered DC 24V input DC 0-5V output 4-20mA TS35 rail mounting

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Introduction

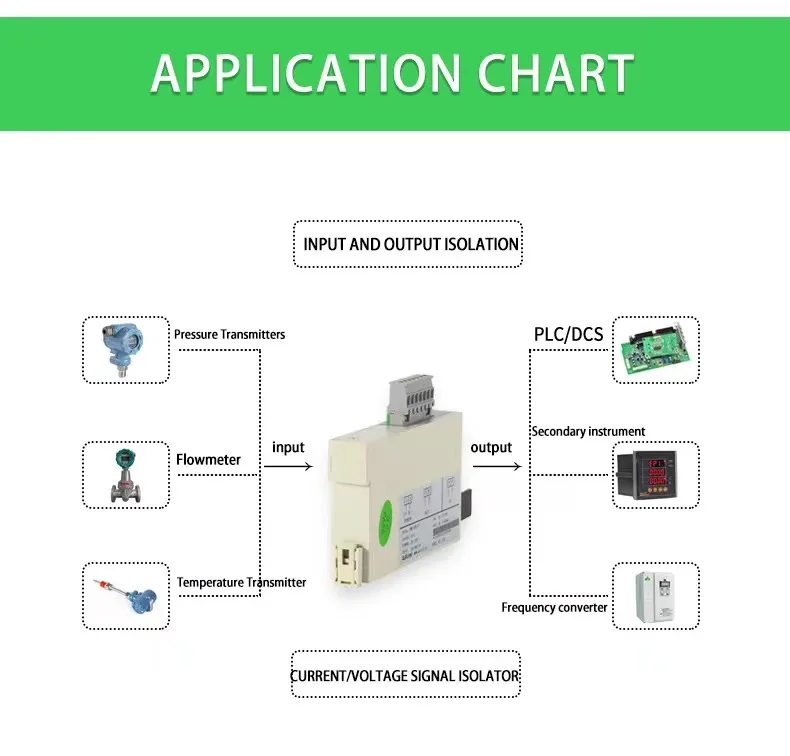

Analog signal transducer BM series can measure electrical parameters (e.g. current and voltage) and non-electrical parameters (e.g. temperature and resistance) rapidly and accurately and isolate and convert measured values to standard analogue output signal. It can be not only connected directly with pointer gauges and digital display meters but also integrated with automatic control instruments (e.g. PLC), various A/D converters and computer systems.

Model Feature		BM-DIS/I	BM-Al/IS BM-AV/IS	BM-TR/IS BM-TR/I	BM-R/IS BM-VR/IS	BM-DI/IS BM-DV/IS	BM-DI/I BM-DI/V BM-DV/I BM-DV/VI	BM-DI/II BM-DV/II BM-DI/VI BM-DV/VI
Precision		0.5% 0.2%
Input		DC4~20mA	AC.0~1A 0-5A AC 0~500V	PT100	Resistance 0-10kΩ Potertiometer 0~10kΩ	DC 4~20mA or 0~20mA, r DC. 0~5V or 0~10V
output	Type	DC 4~20mA				DC 4~20mA or 0~20mA,0~5V or 0~10V
	Load	≤500Ω(Current input): 21000Ω(Voltage input)
Power		DC 24V(range DC 18V~32V)
Temp draft		≤200ppm/C(Precision 0.5%);≤100ppm/C(Precision 0.2%)
Response time		＜400ms
Impedance		≥100MΩ
Isolateion		Power supply / input / output 2kV/1min,50Hz
Temp		Working.-10C~55C Stock:-25C~70C
Humd		≤93%RH
Alti		≤2500m
Fixing		TS35 DIN rail
