Help CenterGREATER Heater Supplier GT-JY24 Shrinking Machine With Larger Roller and Shafts for Large Heaters
Related Products
-
Zhaoqing 2024 Latest Shrinking Supplier GT-JYH12 Hot Runner CNC Shrinking MachineUS$ 1 - 2000MOQ: 1 Set -
GT-ETSK201 Empty Tube Shrinking Mahchine for Hot Runner HeaterUS$ 1 - 2000MOQ: 1 Set
-
Heater Supplier Equipment GT-JYC12 Cartridge Heater Shrinking MachineUS$ 1 - 2000MOQ: 1 Set
-
Zhaoqing Greater Supply Large Diameter Shrinking Machine for Electric Heater Manufacture GT-JY24 Shrinking Machine With Larger Roller and Shafts for Large HeatersUS$ 1 - 2000MOQ: 1 Set
-
GT-SGB1-12 12station Roll Reducing Machine Heater Shrinker Reducing MachineUS$ 1 - 2000MOQ: 1 Set
Description:

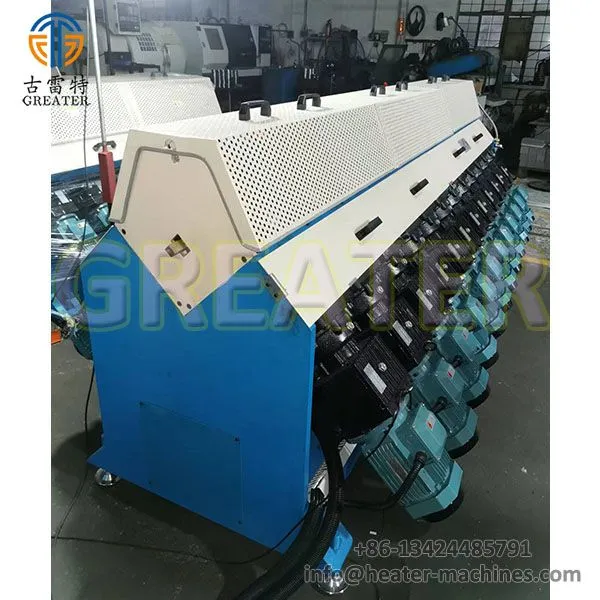

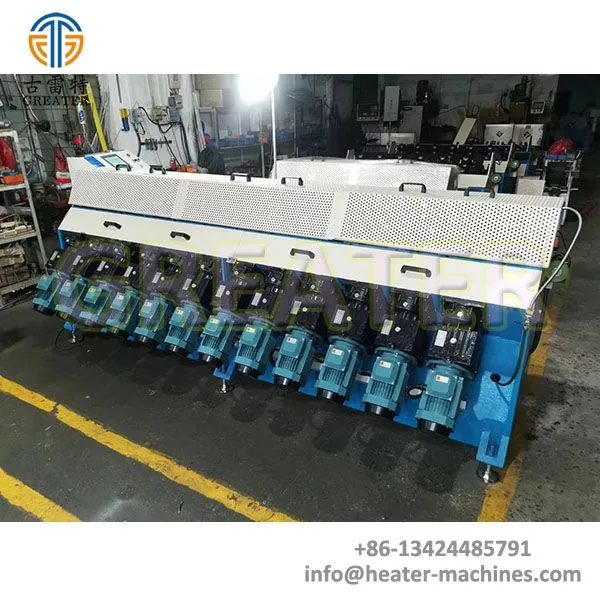

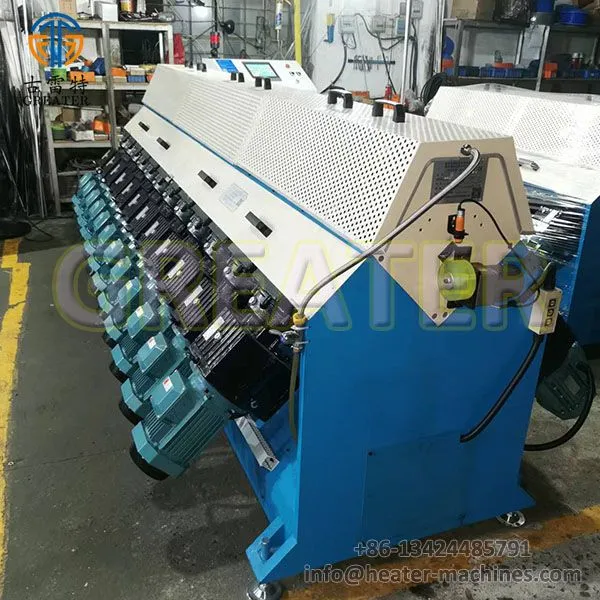

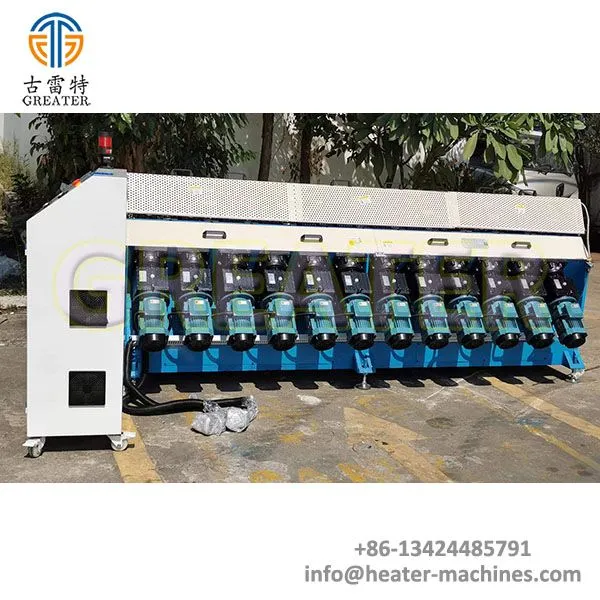

GT-JY Shrinking Machine (8-18 stations) is one popular tubular heater shrinking machine, with integrated cast iron casting bed. Because the rigidity and strength of the cast iron integral casting bed, so it is not easy to deform, which ensures stable use in future.
Main details:
1. Popular station in 12 stations, 16 stations, 18 stations, 21 stations.
2. Gearbox can choose uniform speed, or un-uniform speed according to order;
3. Change rollers can reduce different diameters, rollers can choose steel rollers or tungsten carbide rollers.
4. Machine will auto stop if heater blocked.
5. Change molds, can reduce tubes in round, square, flat shapes.
6. Diameters after shrinking from Φ5-Φ20mm (for 12station).
7. Max diameter before shrink: Φ23mm (for 12 station).
8. Min length before shrink: 120mm.
9. Speed can shrink: 17.5 meters / min or according to order.
10. Machine can be customized with CNC system to control.
