YCD-2 Hydraulic Rail Turnout Tamping Machine
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Material:
Stainless Steel
Dimensions (L x W x H) (mm):
1420*660*1380mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NCM-5.1 Frog and Switch Point GrinderNegotiableMOQ: 1 Piece -
NGM-4.8 Internal Combustion Digital Rail Grinding MachineNegotiableMOQ: 1 Piece
-
Railway Petrol Universal Impact WrenchNegotiableMOQ: 1 Piece
-
NGYM-I Internal Combustion Rail WaistNegotiableMOQ: 1 Piece
-
Hydraulic Rail Shearing MachineNegotiableMOQ: 1 Piece
Place of Origin
China
Material
Stainless Steel
Dimensions (L x W x H) (mm)
1420*660*1380mm

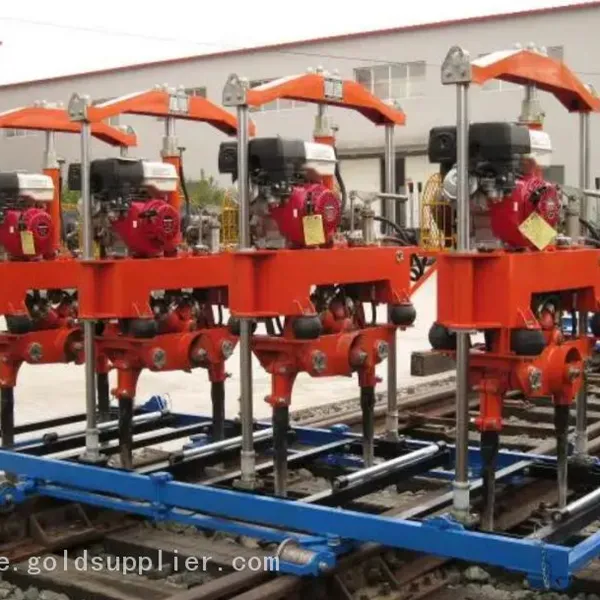

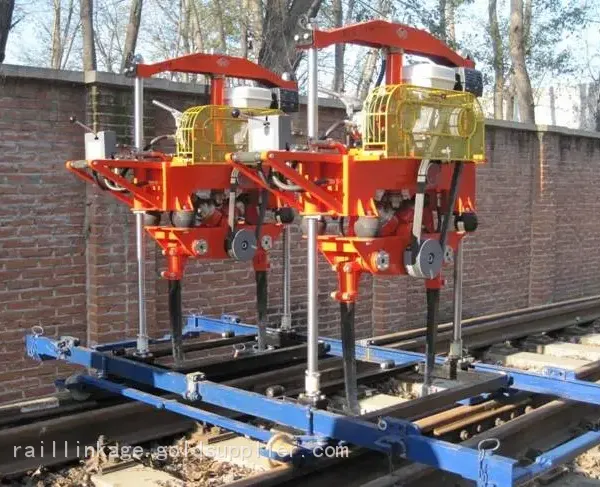

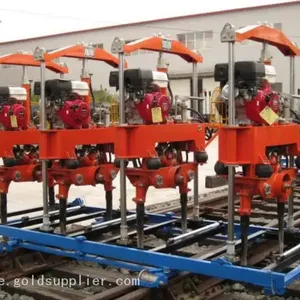

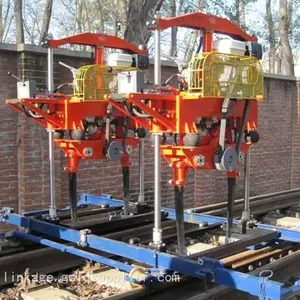

YCD-2 Hydraulic Tamping Machine
YCD-2 hydraulic tumout tamping machine is a special mainenance mechanical equipment for railway turmouts. it is mainly used for tamping the seeper bllast in the tumout section, and can also take into account the tamping efect of the main track bed ballast.
Specification
Model |
YCD-2 |
Type |
Rail Tamping Machine |
Material |
Stainless Steel |
Dimensions (L x W x H) (mm) |
1420*660*1380mm |
Engine |
HONDA GX390 petrol engine |
Power |
6.6 kW |
Vibrating frequency |
60~70 Hz |
Exciting force |
≥34kN |
Clamping force |
≥9.4 kN |
Insertion force |
≥2.9 kN |
Working pressure |
5.0 MPa |
Tamping insertion depth: |
90~ 120mm under sleepers |
Weight |
337 kg |
