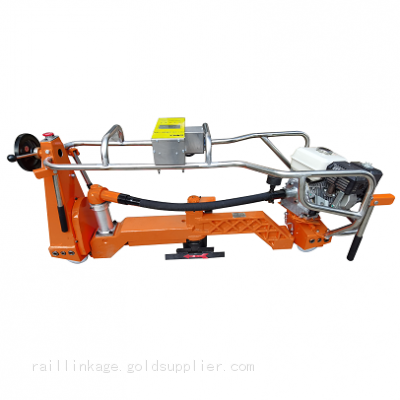

NGM-4.8I Digital Display Rail Grinding Machine

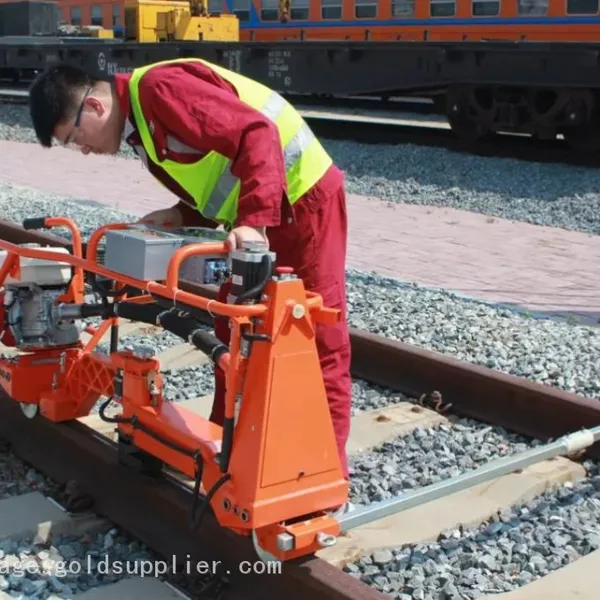

NGM-4.8I digital display rail grinding machine is suitable for grinding 43kg/m-75kg/m rail weld, uneven joint, rail side fat edge, rail surface welding repair and other parts. With a multi-purpose, automation and intelligent set as one of the high-precision rail grinding machine.
Specification
Model | NGM-4.8I |
Type | Rail Grinding Machine |
Material | Stainless Steel |
Dimensions (L x W x H) (mm) | 1500 * 450 * 750 mm |
Internal combustion engine | GX200, > 3600r/min, 4.8kW |
Grinding Wheel Specification | 125*65*M20 |
Grinding Wheel Linear Velocity | > 35m/s |
Spindle rotation | 4500r/min |
Inclination angle of grinding wheel | +90 degrees |
Accuracy of inclination angle | 0.5 degree, 1.0 degree, 2.0 degree, 3.0 degree, 4.0 degree, 5.0 degree |
Grinding wheel stroke | 45 mm |
Grinding wheel feed accuracy | 0.05 mm, 0.1 mm, 0.15 mm, 0.2 mm, 0.25 mm, 0.3 mm |
Profile wheelbase | 1000mm |
Weight | 90kg |
