Orchard Trencher Driven Farm Tractor Agricultural Tools Ditching Trencher Machine

Orchard Trencher Driven Farm Tractor Agricultural Tools Ditching Trencher Machine photo-1

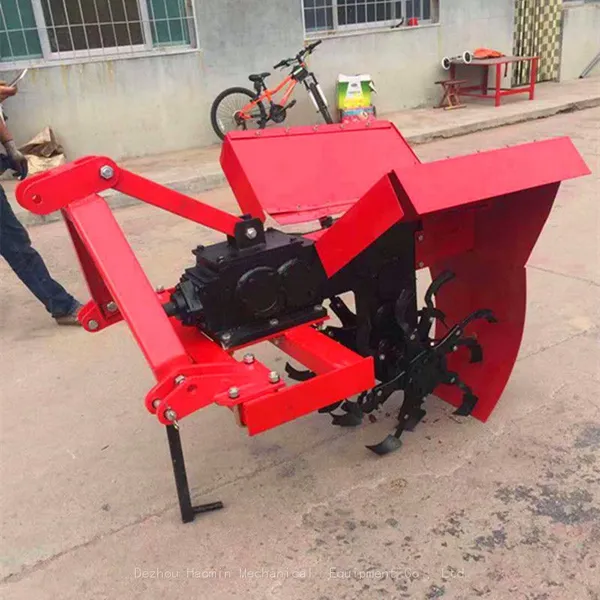

Orchard Trencher Driven Farm Tractor Agricultural Tools Ditching Trencher Machine photo-2

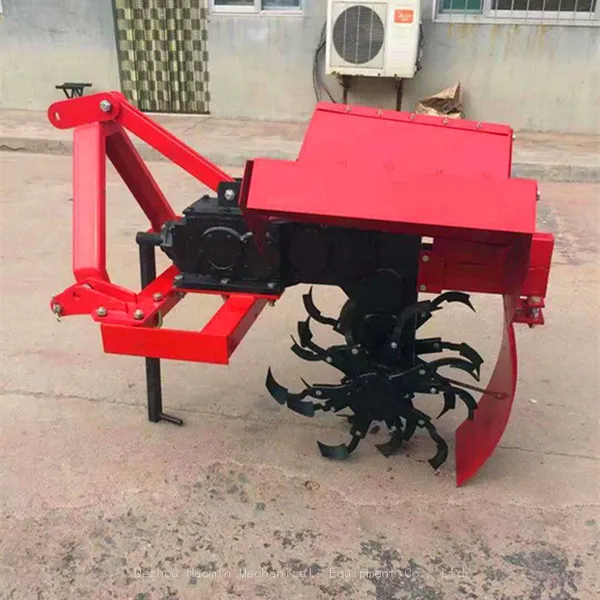

Orchard Trencher Driven Farm Tractor Agricultural Tools Ditching Trencher Machine photo-3

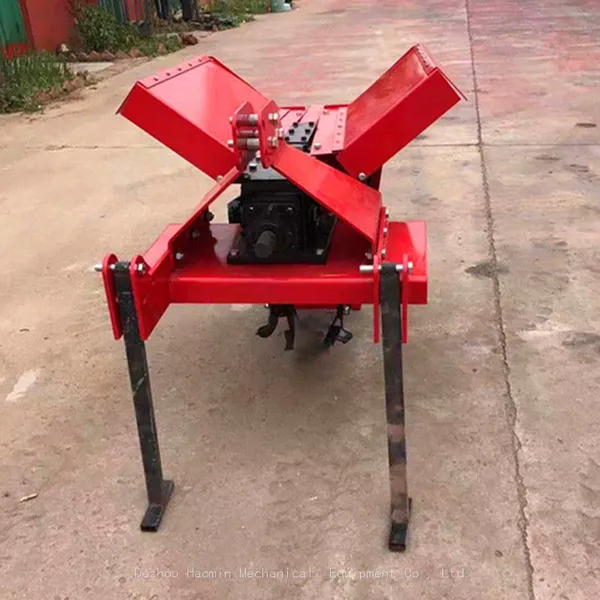

Orchard Trencher Driven Farm Tractor Agricultural Tools Ditching Trencher Machine photo-4

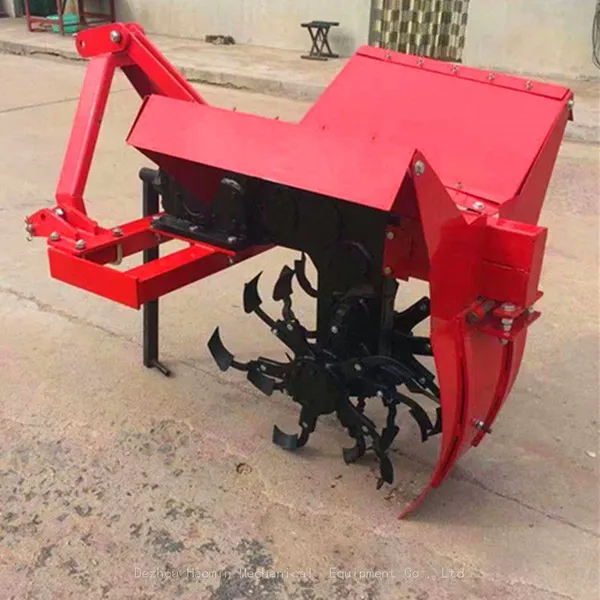

Orchard Trencher Driven Farm Tractor Agricultural Tools Ditching Trencher Machine photo-5
US$ 500 - 650 MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
Haomin
Place of Origin:
China
Model Number:
Ditching machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Brand Name Haomin
Place of Origin China
Model Number Ditching machine
Type Farm Cultivator
Use Ditching
Certification ISO9001 CE
After-sales Service Provided No overseas service provided
Warranty 1 Year
Weight 300kg
Dimension(L*W*H) 1500*900*900
Power Type Diesel
Condition New
Power(W) 40KW

Orchard Trencher Driven Farm Tractor Agricultural Tools Ditching Trencher Machine

Product Description

1KG-30 series orchard trencher, using boron steel blade, using 1special box for trenching machine, better trenching effect, higher efficiency and longer machine life.
1KG-60 double discs trencher is designed and developed according to the needs of customers. The latest research and development of a trencher that is suspended on a large four-wheel tractor.
1: Easy to load and unload, less than half an hour on the tractor, does not affect the tractor's autumn farmland cultivation.
2: Easy to operate, as long as the user who opens the tractor can drive the ditch.
3: high efficiency of trenching



Specification


Model GX-90 GX-140
No.of discs 1 2
Working width 90cm 140cm
Stubble height 3-5cm 3-5cm
Matched power 12-25hp 22-30hp
Efficiency 2-3mu/h 4-7mu/h
Size 900*650*950mm 1400*650*950mm
Approx.weight 150kg 230kg
Model 1KG-30(center) 1KG-30(side) 1KG-60(double sides)
Size(mm) 1500*900*900 1500*1100*900 1500*1200*1100mm
Matched power(hp) 35-75 35-65 50-100
Gearbox 150gearbox 125gearbox 200 gearbox
Blade IT225 IT225 IT245
Working width(mm) 200-300 200-300 600
Working depth (mm) 80-350 80-350 400
No.blades 16 16 36
Product Material



Produce Euipment



Company Information

  ESTABLISHED IN 2012.YUCHENF FRANCIS MACHINERY CO.LTD.IS A PROFESSIONAL AGRICULTURAL MACHINERY MANUFAC-TURER INTEGRATING RESEARCH,DEVELOPMENT,PRODUCTION,SALE AND SERVICE OF AGRICULTURAL MACHINERY.FRANCIS HAS ADVANCED MACHINING,WELDING,FORGING.SHAPING.HEAT TREATMNT PROCESSING TECHNOLOGY.

 LOCATED YUCHENG CITY SHANDON PROVINCE.FRANCIS COMPANY COVERS AN AREA OF 22000 SQUARE METERS,IN WHICH STANDARD WORKSHOP FLOOR SPACE COVERS MORE THAN 6000 SAUARE METERS.THE COMPANY OWNS MORE THAN 60 EM-PLOYEES,ENGINEER AND QUYALITY CONTROL PERSONNEL.

OUR MAIN PRODUCTS INCLUDE DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW,FARM TRAILER.GRASS MOWER,SEEDER.HARVESTER.DISS BLADE,BREAK SHOVEL AND OTHER AGRO PARTS.ESPECIALLY IN HEAT TREATMENT OF THE BLADE,WE HAVE ACCUMULATED RICH EXPERIENCE.THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLE QUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED.

WITH THE MARKET AND THE USER'S ACTUAL DEMAND,LEYUAN MACHINERY IS CONSTANTLY TRYING TO PROMOTE THE INTE-GRATION OF AGRICUL TURAL MACHINERY AND AGRICULTURAL ESTABLISHED IN 2012.YUCHENF FRANCIS MACHINERY CO.LTD.IS A PROFESSIONAL AGRICULTURAL ARTS.THE COMPANY BASED ON CHINA LOACAL MARKET AND EX-PORTED UNITED STATES,AUSTRALIA,MEXICO,THAILAND,PAKISTAN,INDODESIA,MOROCCO,NIGERIA,SOUTH AFRICA,SUDAN,TAIWAN AND OTHER COUNTRIES AND REGIONS.

Packaging & Shipping


FAQ:

Q1: Are you a factory or trading company?

  We are a factory with self-supported import and export right.
Q2: How can I trust on your company?
  We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Swi tzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand,Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith,punctual, strict quality control and reasonable price, throughout s the pledge we to each customer.

Q3: Where is your factory located? How can I visit there?
  Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. AllI our clients are warmly welcomed to visit us!

Q4: How can I place an order from your website?
  It is very easy. Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.

Q5: How can I make the payment?
  Payment is made via Telegraphic Transfer (T/T) through the bank against the Performa invoice. 40% as prepayment and the balance when the goods are ready for shipping.Irrevocable L/C at sight could be also accepted.

Q6: What' s the Payment terms?
  FOB, the price of the implement without sea shipment costs.

Q7: At which port do you usually ship the good?
  We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.

Q8. How about the Warranty ?
  12 months warranty from the time of the goods arrive at destination.
