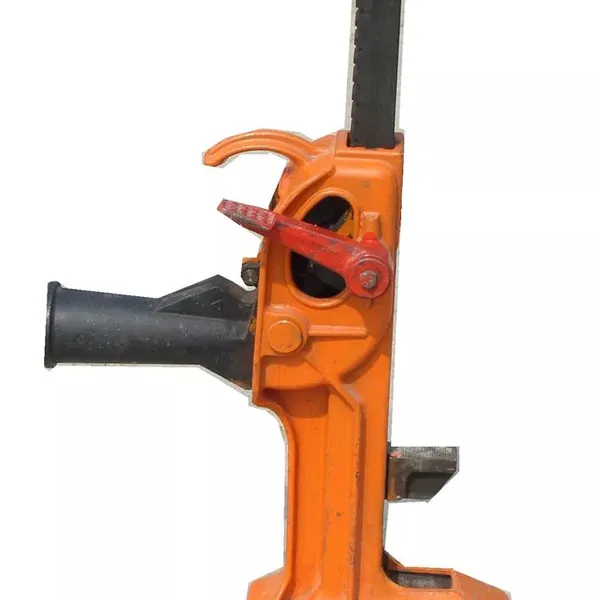

Rack jack is used to lift rail row, bridge or other heavy objects during railway construction; It is also suitable for industrial and mining enterprises, transportation, port terminals and other enterprises to transport, install, adjust equipment and lift and carry various heavy objects as lifting tools. The machine has the advantages of simple structure, reliable lifting, simple operation and convenient maintenance. Large lifting range, fast lifting speed and high working efficiency.
Specification
Model | SCQ-200 |
Type | Rail Jack |
Material | Stainless Steel |
Dimensions (L x W x H) (mm) | 420 * 165 * 522mm |
Rated lifting force | 200kN |
Rated hook lift force | 78kN |
Lifting distance | ≥ 270mm |
Lifting efficiency | 127mm /time |
Initial height | 50mm |
the length of the lever (user-owned) | 1.5m |
Full-load max lifting force | 1920N |
Machine weight | ≤ 25kg |
