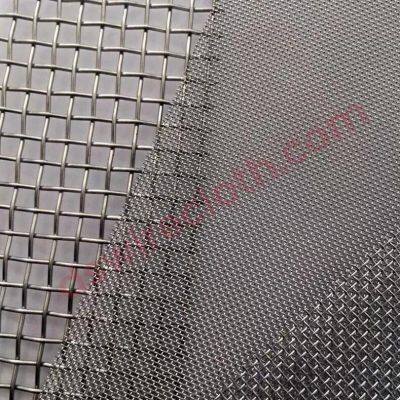

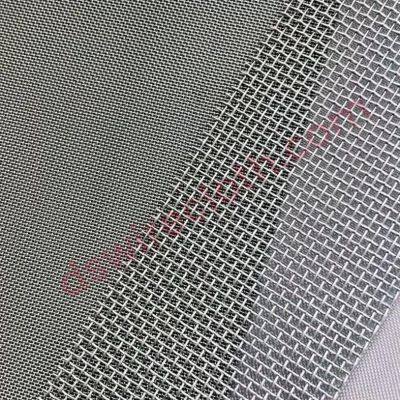

Stainless Steel Square Mesh

Stainless Steel Square Wire Mesh is also named square hole woven wire cloth and square wire cloth.

Dashang Wire Mesh provides a full range of stainless steel square mesh with opening size range from 25 microns to 20mm (from mesh1x1 to mesh500x500) according to international standard ASTM E2016 and ISO9044 and ISO4873. It is made of high-quality wire materials of grades 304, 304L, 316, 316L, 321, 430, 317L, 904L, etc., woven by warp and weft direction, with excellent characteristics of acid alkali resistance and corrosion resistance.

Stainless steel square mesh is the most widely used and common woven mesh. The most common and economic weave type is plain weave and twill weave. Plain weave (1/1) is woven by alternating the weft wire over and under the warp wire, and twill weave (2/2) is that each weft wire passes alternately over and under 2 warp wires, staggered on successive warps. Except plain weave (1/1) and twill weave (2/2), Dashang Wire Mesh also could provide special weave type such as 3 heddles weave (1/2) and 5 heddle weave (1/4), it is used in petroleum and chemical industrial filtration and offers high flow rates.

Stainless steel square mesh Characteristic and Applications:

Stainless steel contains chromium (Cr), nickel (Ni), and molybdenum(Mo) elements, which make it highly chemically stable. It will not be oxidized, rusted or corroded in air, water, seawater or acid, alkali, salt and other aqueous solutions. Therefore, the stainless steel mesh woven by stainless steel wire has the characteristics of acid resistance, alkali resistance, high temperature resistance, tensile strength and wear resistance, and is especially suitable for screening and filtering under acid and alkali environmental conditions. Such as mud net in petroleum industry, sieve filter net in chemical fiber industry, pickling net in electroplating industry, as well as metallurgy, rubber, aerospace, military industry, medicine, food and other industries, gas, liquid filtration and other media separation.

Screening of petrochemical products, quartz sand, ceramics, resin coated sand, etc

Production of plastic film and plastic packaging filtration;

Screening of chemical product powders such as pharmaceuticals, emery, metal powders, etc
