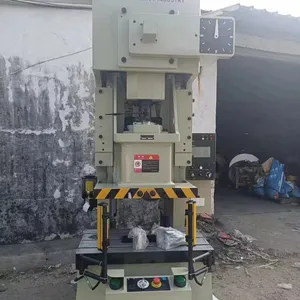

Help CenterHPA-60 Open Type High Precision Steel Frame Punch
Related Products
-
JH21-200T Open-type Fixed Station PressUS$ 40000 - 41000MOQ: 1 Set -
HFP Series Hot Die Forging PressUS$ 120000 - 150000MOQ: 1 Set
-
SM11 Series Flat Forging Machine With Die PartingUS$ 58000 - 60000MOQ: 1 Set
-
SM11-200T Flat Forging Machine With Die PartingUS$ 101000 - 108000MOQ: 1 Set
-
SM11-450T Horizontal Forging and Upsetting Press With Die SplittingUS$ 260000 - 262000MOQ: 1 Set
This machine is developed and made by our firm according to market requirement and development direction,it is integrated with many advanced desigh methods,it is a closed double point punching machine with C type machine frame structure，it is produced after ageing treatment，the machine has the merit of strong rigidness and good sustainability.
HPA-60 parameters | ||||
No. |
prescription |
unit |
Quantity/mode |
note |
1 |
quantity |
set |
1 |
|
2 |
structure |
Open type one point |
||
3 |
tonnage |
KN |
600 |
|
4 |
Ability occurrence point |
mm |
2 |
|
5 |
stroke |
mm |
120 |
|
6 |
No.of strokes |
Times/min. |
35-90 |
|
7 |
Max die height |
mm |
310 |
|
8 |
Die height adjustment |
mm |
75 |
|
9 |
Adjustment mode |
manual |
||
10 |
Upper worktable |
mm |
500*360 |
|
11 |
Lower worktable |
900*500 |
||
13 |
Blowing device |
Yes |
||
14 |
Main motor |
Yes |
||
15 |
power |
5.5KW |
||
16 |
Lubrication mode |
electric |
||
17 |
clutch |
Dry type |
||
18 |
Electrical cam |
Yes |
||
19 |
Light electricity protection |
Yes |
||
20 |
Vibration absorb device |
Yes |
||
21 |
dimension |
mm |
1600*1200*2800 |
|
22 |
weight |
kg |
5000 |
|
