Home > Products > 3.7V lithium battery > 3.7V Lithium Ion Battery for sale UFX 603030 500mAh Contains multiple certifications

3.7V Lithium Ion Battery for sale UFX 603030 500mAh Contains multiple certifications

FOB Price

USD $1.6 - $2 / Piece

5 Pieces(Min.Order)

Product Details

Specification

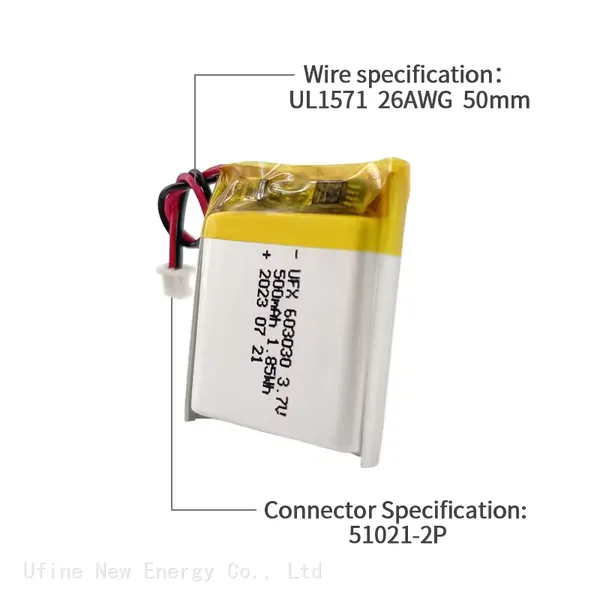

1. Mechanical Characteristics
Cell	UFX603030	PCM	Yes
NTC	No	Weight	appr.10.4g
Configuration	1S1P

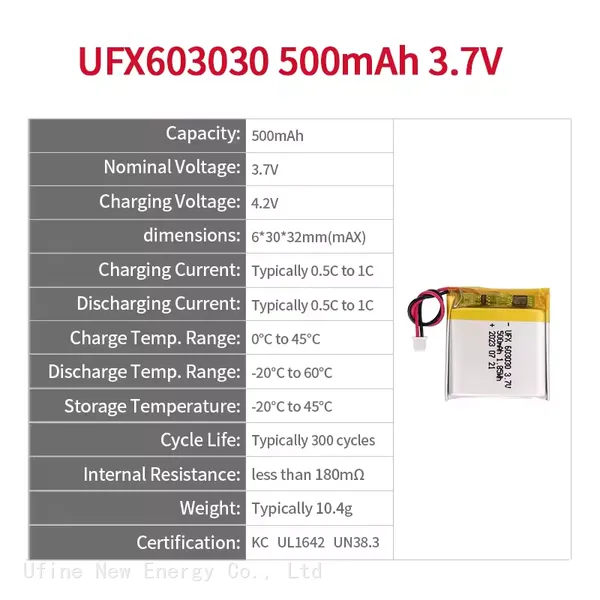

2. Electrical Specification
Capacity	500mAh	Nominal Voltage	3.7V
Energy	1.85Wh	Internal Impedance	less than 180mΩ
Max.Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max.Charge Current	500mA	Max.Discharge Current:	500mA
Standard Charge Current	100mA	Standard Discharge Current	100mA
Charge Temp.Range	10℃ to 45℃	Discharge Temp.Range	-20℃ to 60℃
Storage Temp.Range	1 year at -20℃ to +30℃	Cycle life	100 cycles ≥92%
	3 months at -20℃ to +45℃		300 cycles ≥88%
	1 month at -20℃ to +60℃		500 cycles ≥80%

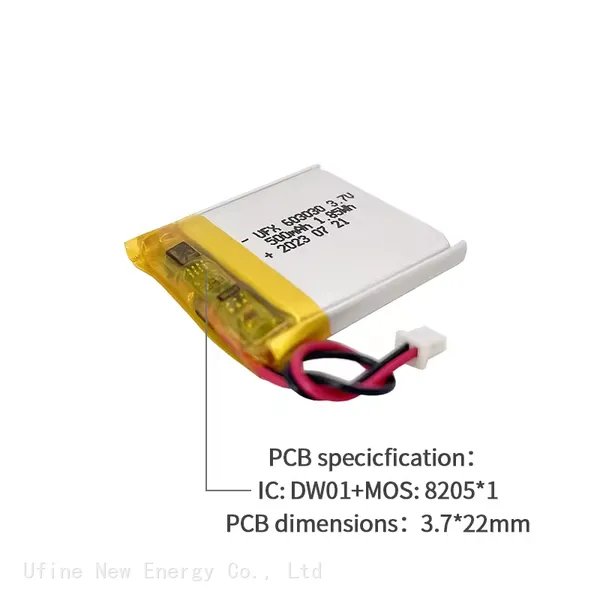

3. Cell protection
Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)	Overdischarge Detection	2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A(9 to 15msec delay)	Short protection	Yes
