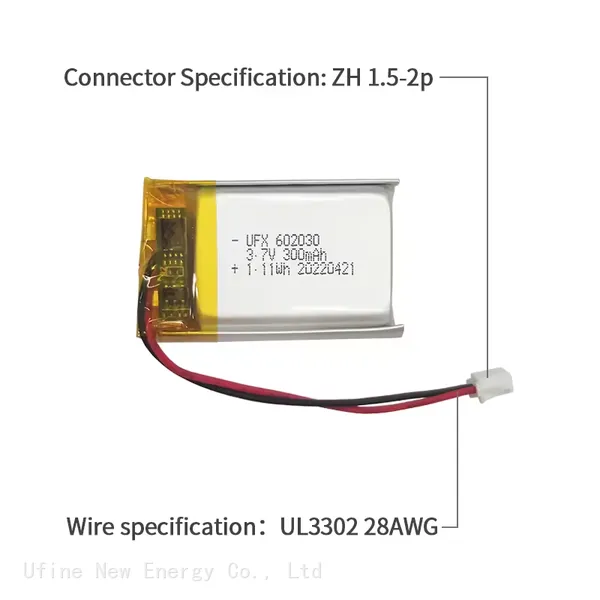

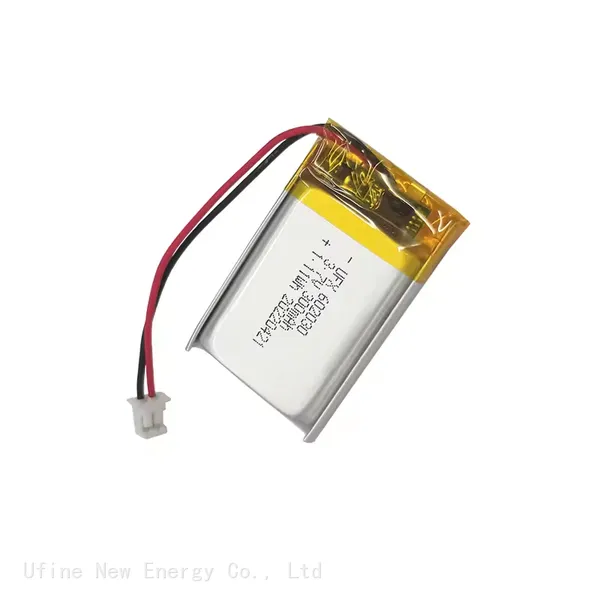

Rechargeable 3.7V 300mAh UFX 602030 Lipo Battery With PCM And Connector Made In China For Cleansing Instrument Battery

Rechargeable 3.7V 300mAh UFX 602030 Lipo Battery With PCM And Connector Made In China For Cleansing Instrument Battery photo-1
Rechargeable 3.7V 300mAh UFX 602030 Lipo Battery With PCM And Connector Made In China For Cleansing Instrument Battery photo-2
Rechargeable 3.7V 300mAh UFX 602030 Lipo Battery With PCM And Connector Made In China For Cleansing Instrument Battery photo-3
Rechargeable 3.7V 300mAh UFX 602030 Lipo Battery With PCM And Connector Made In China For Cleansing Instrument Battery photo-4
Rechargeable 3.7V 300mAh UFX 602030 Lipo Battery With PCM And Connector Made In China For Cleansing Instrument Battery photo-5
US$ 0.8 - 1 MOQ: 5 Pieces

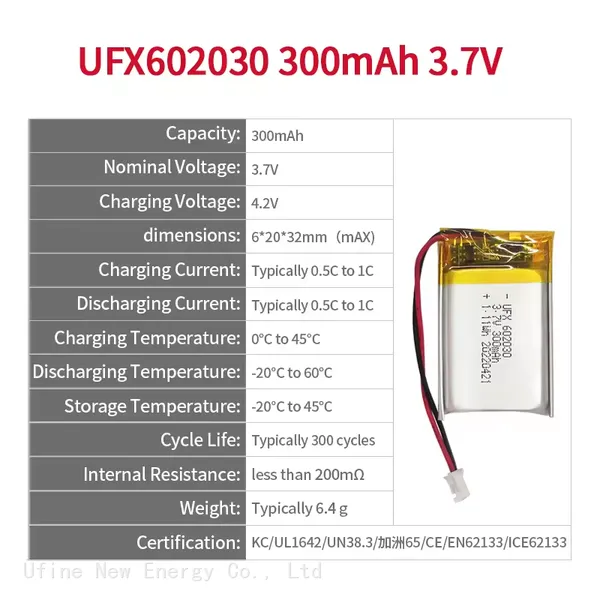

Key Specifications
Get Latest Price
Brand Name:
UFX
Place of Origin:
China
Model Number:
602030
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name UFX
Place of Origin China
Model Number 602030
Type Li-polymer
Size Other, 6*20*32mm
Nominal Capacity 300mAh
Nominal Voltage Other, 3.7V
1. Mechanical Characteristics
Cell
602030
PCM
Yes
NTC
No
Weight
appr. 6.4g
Configuration
1S1P
Demension
6*20*32mm(MAX)
2. Electrical Specification
Capacity
300mAh
Nominal Voltage
3.7V
Energy
1.11Wh
Internal Impedance
less than 200 mΩ
Max. Charge Voltage
4.2V
Discharge Cut Off
2.75V
Max. Charge Current
300mA
Max. Discharge Current
300mA
Standard Charge Current
60mA
Standard Discharge Current
60mA
Charge Temp. Range
0℃ to 45℃
Discharge Temp. Range
-20℃ to 60℃
Storage Temp. Range
1 year at -20℃ to +30℃
Cycle life
100 cycles ≥92%
3 months at -20℃ to +45℃
300 cycles ≥88%
1 month at -20℃ to +60℃
500 cycles ≥80%

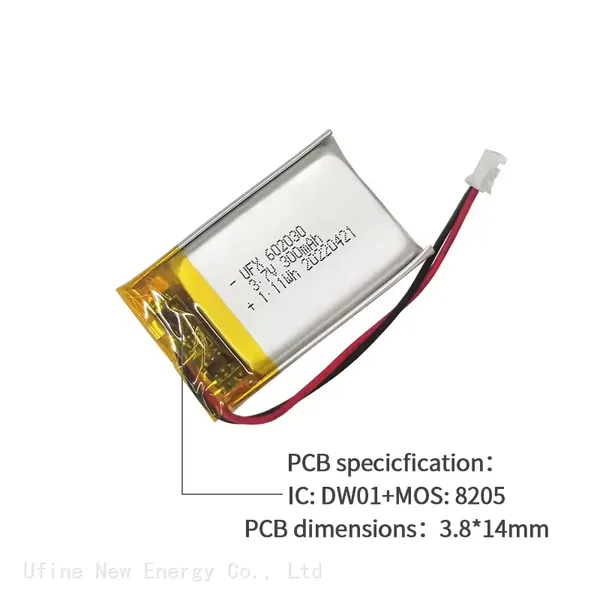

3. Cell protection
Overcharge Detection
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over discharge Detection
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection
2.5A to 4.0A (9 to 15msec. delay)
Short protection
Yes

At Ufine, we understand that exceptional customer service is crucial. That's why our sales team consists of over 35 professionals who are passionate about providing personalized solutions tailored to your specific requirements. By choosing Ufine as your partner, you not only gain access to our extensive product range but also benefit from our expertise and support. We are committed to understanding your needs and delivering the best possible experience throughout our partnership. We are here to assist you at every step - from product selection through after - sales service - ensuring your satisfaction remains our priority. Our aim is to build long-term relationships based on trust and mutual success.
