Spraying and filtering cotton, soaking and filtering cotton

standard packaging

Product features:

The roof filter cotton is composed of high-performance anti fracture silicon-free synthetic fibers;

◎ Utilize hierarchical encryption and multi-layer technology, and undergo sufficient immersion or spraying treatment;

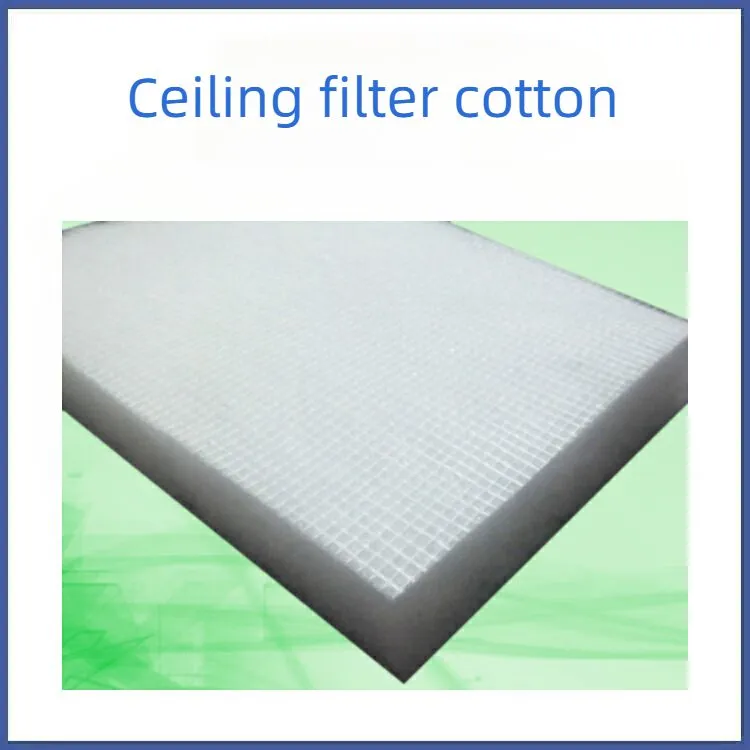

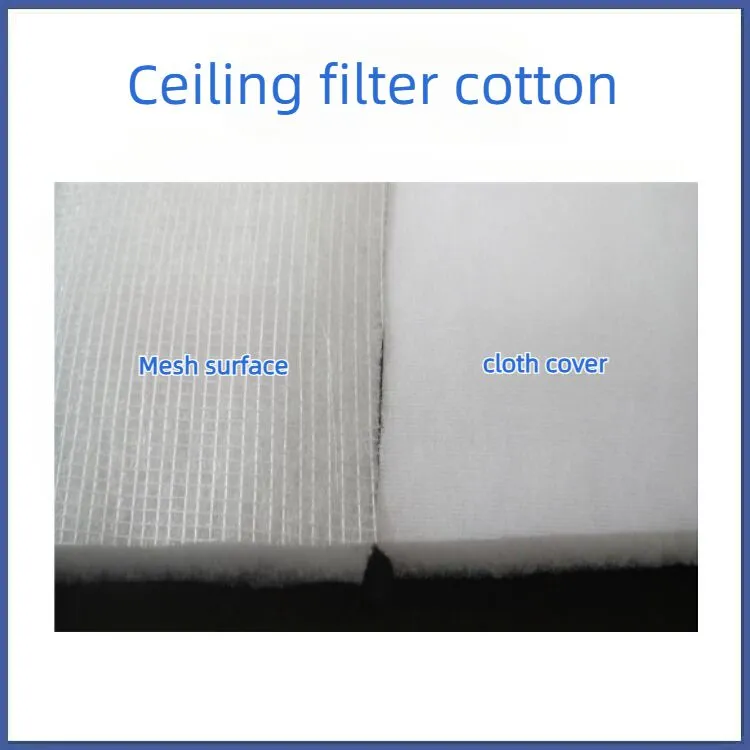

The outlet surface of the filter is reinforced and shaped with fiberglass grid, which not only enhances the solidity of the filter material but also guides the laminar flow effect of uniform air distribution;

Meet the fire classification standards of European DIN53438, F1 and American UL900, class 2;

Strong humidity resistance, can achieve 100% relative humidity resistance, and can withstand high temperatures up to 120 ℃;

The filtration efficiency of the roof filter cotton is F5 (weight efficiency: 98%), with a filtration accuracy of ≥ 1um and stable filtration performance

Roll or slice supply.

Usage:

The roof filter cotton is specially designed for spray painting system, and the end of the spray painting workshop is finely filtered, which is a prerequisite for high-value paint baking process and high-quality paint baking;

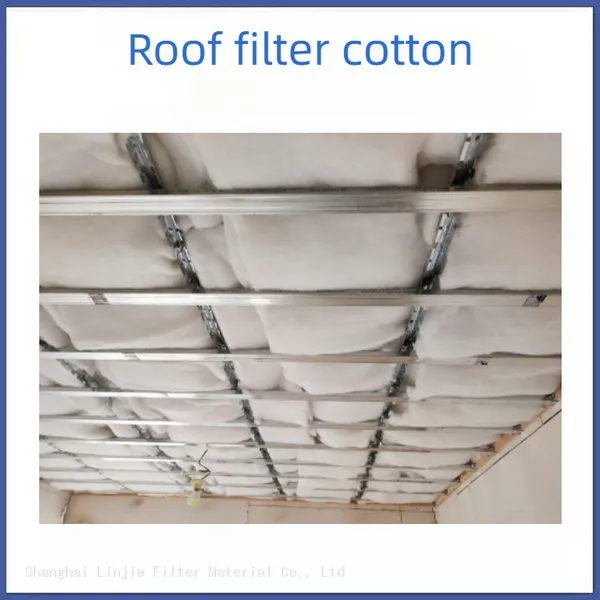

Installed in assembly vehicles or paint and baking workshops as a ceiling filter cotton. The spray paint installed in the surface repair department and the ceiling of the paint baking room serve as the final air supply filter cotton for ventilation equipment. Installed in production workshops and paint spraying rooms that require high gloss and high equipment polishing treatment products as the final air supply filter cotton;

To properly use the roof filter cotton and ensure the quality of the paint, the following precautions must be taken:

When replacing the product, first remove the air inlet, ceiling, and bottom plate filter, carefully clean the ventilation pipes, dark corners, and areas prone to dust accumulation, then close the paint room door and open the fan to air blow for about 1 hour. When installing the filter cotton, there should be no gaps between the filter material, the frame, and the surrounding area. First, install the filter cotton on the ceiling and air inlet, turn on the fan to air blow for about 4 hours, then perform another cleaning work, and then install the floor cotton before use.

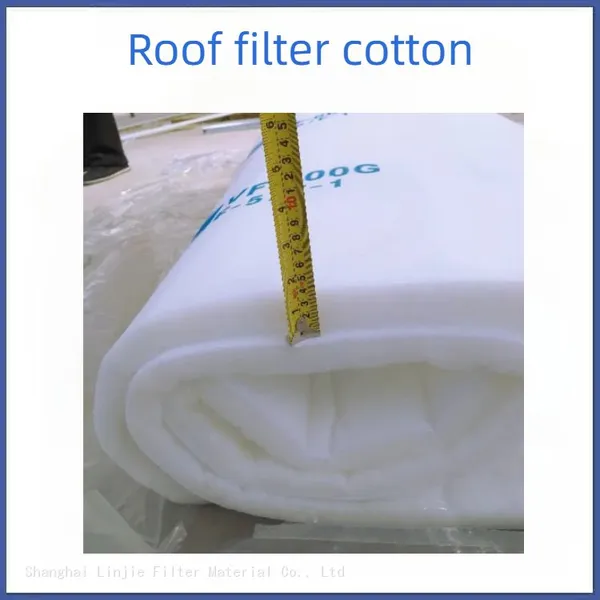

Standard size of roof filter cotton: 2m * 20m * 22mm, 1.6m * 20m * 22mm, etc. Other sizes can be customized

Product Display:
