50mm 2/3" 8Megapixel Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.022% AI 3D Positioning Industrial Recognition 4K C Mount Optics
High resolution : 8megapixel can used at 10Megapixel camera
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Low distortion : -0.022% low distortion
Compact size : Very compact small size match all area applications.
Application : Positioning, Inspection for medical, life science, SMT, AOI.
Model |
SMV5028G-8M |
|
Format |
2/3” (Φ11mm) |
|
Resolution |
8.0 Megapixel |
|
Focal Length |
50mm |
|
Aperture (Close) |
F2.8 Manual iris |
|
Field of View (°) |
2/3" |
58*46*35mm | 12.5*10*7.6° |
1/2” |
42*34*25mm | 9.2*7.3*5.5° |
|
1/3” |
32*25*19mm | 6.9*5.5*4.2° |
|
M.O.D |
30mm |
|
Distortion TV |
-0.022% |
|
Filter Size |
M34*0.5mm |
|
Magnification |
-0.19X @300mm WD |
|
T.T.L |
63.72mm |
|
B.F.L |
13.5mm |
|
CRA |
7° |
|

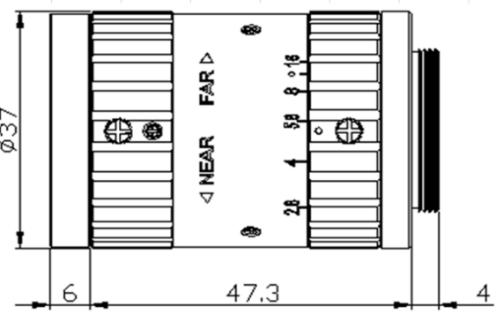

Dimension |
Φ37*49.3mm |
|
Mount |
C |
|
Weight |
115g |
|
Marks |
-10℃～+50℃ |
|
