ABT-100 Dual Beams Infrared Intrusion Detector

ABT-100 Dual Beams Infrared Intrusion Detector thumbnail-1
ABT-100 Dual Beams Infrared Intrusion Detector thumbnail-2
ABT-100 Dual Beams Infrared Intrusion Detector thumbnail-3
ABT-100 Dual Beams Infrared Intrusion Detector thumbnail-4
ABT-100 Dual Beams Infrared Intrusion Detector thumbnail-5
ABT-100 Dual Beams Infrared Intrusion Detector photo-1
ABT-100 Dual Beams Infrared Intrusion Detector photo-2
ABT-100 Dual Beams Infrared Intrusion Detector photo-3
ABT-100 Dual Beams Infrared Intrusion Detector photo-4
ABT-100 Dual Beams Infrared Intrusion Detector photo-5
Negotiable MOQ: 1 Pair (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ALHPN
Place of Origin:
China
Model Number:
ABT-100
Contact Supplier Request Quote Chat Now
Dongguan Meian IOT Sensor Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ALHPN
Place of Origin China
Model Number ABT-100
Usage Other, wall
Power supply voltage AC12-18V / DC12-24V
White Box 23*17.7*8.6 CM

Model ABT-30   ABT-60  ABT-80  ABT-100  ABT-150
Detecting distance: 30m  60m  90m  120m  150m
Detecting way : 2 infrared beams are interrupted at the same time
Illuminant: Infrared digital pulse
Detection speed: 50-700 ms
Alarm output: Relay contact output 1C(COM/NC/NO)
Contact capacity AC/DC24V 3Amax.
Working voltage: AC12-18V / DC12-24V
Working current: Transmitter + Receiver≤85mA
Working temperature: -25ºC-55ºC
Tamper Output: Contact output: 1B(COM, NC)
Axis Adjustment Angle(horizontal): 180°(±90°)
Axis Adjustment Angle(vertical)): 20°(±10°)
Materials:PC(casing)+ABS (body)

ABT wired two beams digital infrared shooting outdoor detection, factory direct price, regardless of meters (30,60,100,150 meters optional)

■ anti-lightning circuit design

■ professional anti-jamming optical cover

■ High-power infrared transmitter tube and receiving tube

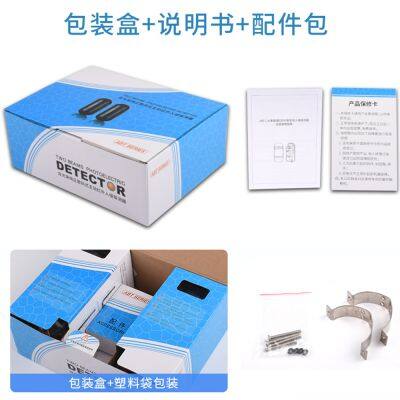

■ included the accessories.



White Box: 23*17.7*8.6 CM/ 800G/ Pair

PCS/CARTON: 20PCS

GW/CARTON: 16KG

CARTON SIZE: 47*37.5*43.5 CM

Product Tags: Infrared Detector , Beam Detector , Perimeter alarms
