Product descriptions from the supplier
Overview
Product Description
1. Main and pinion gears are both made from alloy steel.
2. The whole main bushing is cast steel.
3. Could be put into the roller bushing of API standard kelly or hexagonal kelly, long or short slips are
both adaptable.
4. Fully lubricated and safely sealed
Specification:
Technical specifications and parameters for Rotary Table | |||||
Type |
ZP175 |
ZP205 |
ZP275 |
ZP375 |
ZP495 |
Through hole Dia. mm(in) |
444.5 (17-1/2) |
520.7 (20-1/2) |
698.5 (27-1/2) |
952.5 (37-1/2) |
1257.3 (49-1/2) |
Center distance mm(in) |
1118 (44) |
1353 (53-1/4) |
1353 (53-1/4) |
1353 (53-1/4) |
1651 (65) |
Max static load (KN) |
1350 |
3150 |
4500 |
5850 |
7250 |
Max working torque (Nm) |
14000 |
23000 |
28000 |
33000 |
37000 |
Max Rpm (r/min) |
300 |
300 |
300 |
300 |
300 |
Dimension (L*W*H) (mm) |
1935*1280*585 |
2292*1475*668 |
2392*1670*685 |
2468*1810*718 |
2940*2184*813 |
Weight (kg) |
3888 |
5530 |
6163 |
7548 |
11626 |

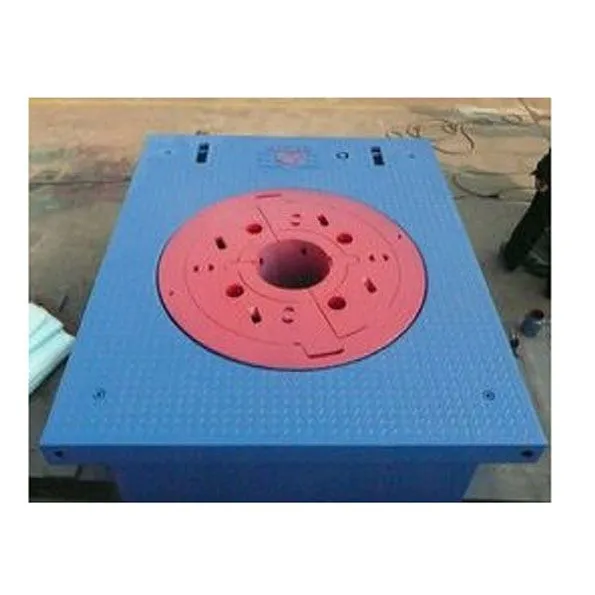

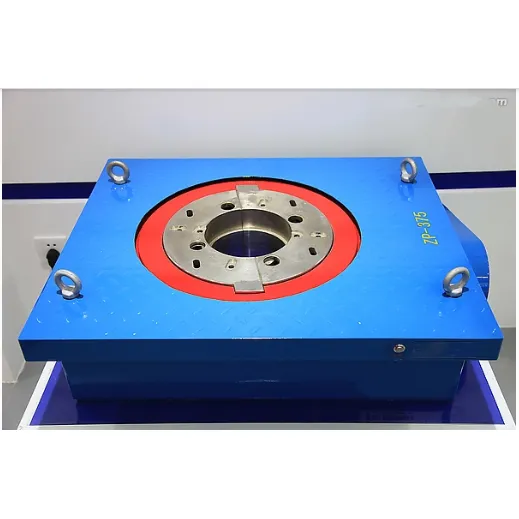

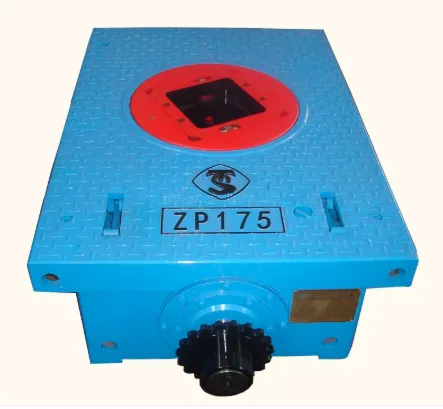

product show :
