Balanced Weave Conveyor Belts For Food Processing Or Industrial Applications

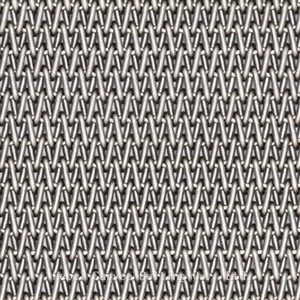

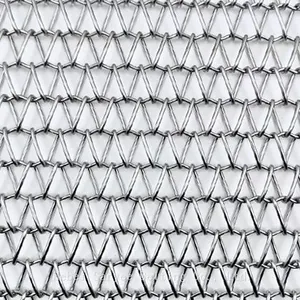

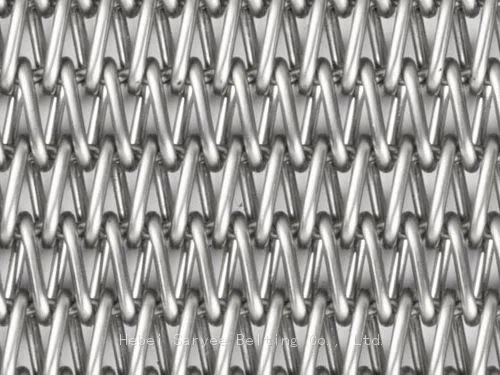

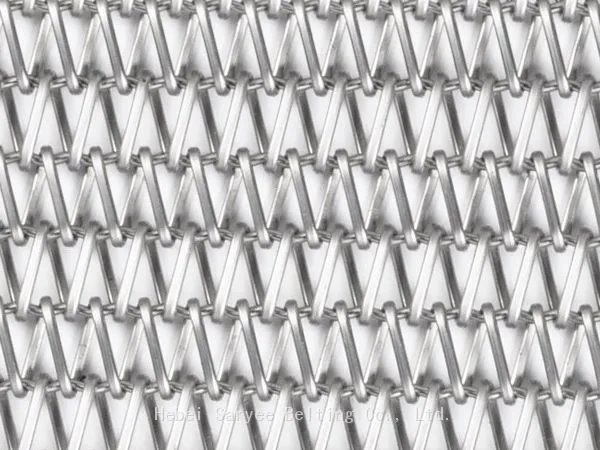

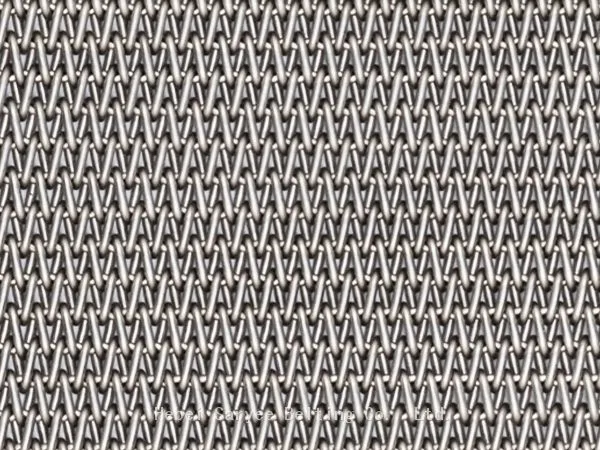

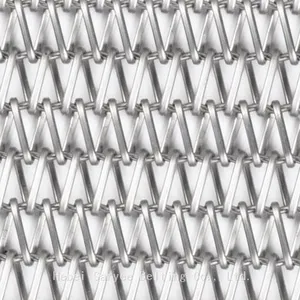

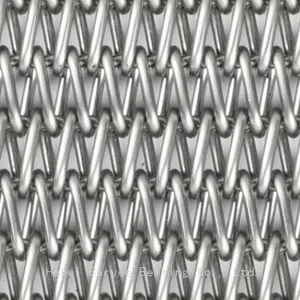

The Balanced Spiral conveyor belt from Saryee Belting stands out as a widely favored mesh design, making its mark across diverse manufacturing sectors due to its versatility and broad applicability.
This conveyor belt offers a host of advantages, featuring seamless straight-running operation, an impressive strength-to-weight ratio, wide range of operating temperatures, and an extensive array of mesh specifications tailored to meet the unique requirements of each application.
Specification
| Material | Stainless, carbon, and galvanized steels, high temperature alloys |
| Coil wire diameter | Round wire: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm Flat wire: from 1.0 mm × 0.7 mm to 6.0 mm × 3.0 mm |
| Cross Wire diameter | 0.8 mm to 8.0 mm |
| Cross wire pitch | 5 mm to 50.8 mm |
| Coil wire pitch | 2.8mm to 40mm |
| Belt width | 100 mm to 5,000 mm |
| Operating temperature | Carbon steel: 538°C Stainless steel: 1120°C Inconel® 601: 1200°C |
| Material | Stainless, carbon, and galvanized steels, high temperature alloys |
| Coil wire diameter | Round wire: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm Flat wire: from 1.0 mm × 0.7 mm to 6.0 mm × 3.0 mm |
| Cross Wire diameter | 0.8 mm to 8.0 mm |
| Cross wire pitch | 5 mm to 50.8 mm |
| Coil wire pitch | 2.8mm to 40mm |
| Belt width | 100 mm to 5,000 mm |
| Operating temperature | Carbon steel: 538°C Stainless steel: 1120°C Inconel® 601: 1200°C |
Advantages
Material Selection
These belts can be manufactured using different materials, such as stainless steel, carbon steel, and other alloys. The material selection depends on the specific requirements of the application, including factors like temperature, corrosion resistance, and load capacity.
Open Mesh Design
The open mesh design of balanced weave belts allows for efficient air circulation and drainage. This feature is particularly beneficial in applications where cooling or drainage is essential, such as in the food processing industry.
High Tensile Strength
Balanced weave conveyor belts are known for their high tensile strength, which makes them suitable for heavy-duty applications. They can handle the transportation of heavy loads and resist wear and tear effectively.
Easy Cleaning
The open structure of the belts facilitates easy cleaning and maintenance. This is especially important in industries like food processing, where hygiene is a critical factor.
Temperature Resistance
Balanced weave conveyor belts are capable of withstanding a wide range of temperatures. This makes them suitable for applications that involve extreme heat or cold, such as in ovens or freezers.
Customization
Manufacturers can customize balanced weave belts to meet specific application requirements, including belt width, length, and edge finishing.
Long Service Life
Due to their durable construction and high-quality materials, balanced weave conveyor belts have a long service life, contributing to cost-effectiveness over time.
Positive Drive
Some balanced weave belts feature a positive drive, which means they have sprockets and are positively driven by these sprockets. This can be advantageous in applications where precise product positioning is crucial.
Applications
Balanced weave conveyor belts are a type of conveyor belt commonly used in various industries, including food processing, heat treating, baking, annealing, packaging, and industrial processes. These belts are known for their durability, versatility, and efficient conveying capabilities. Here is a detailed breakdown of their applications:
Conveying and Cooking
Freezing and Cooling
Packaging
Heat Treatment and Annealing
Industrial Ovens and Furnaces
Swarf Filter Belts
Automotive Industry
Electronics Manufacturing
Glass and Ceramics Production
Metalworking
Aerospace Industry
Cryogenic Freezers Belts
Textile Industry
Chemical Processing
Pharmaceutical Industry
General Manufacturing and Assembly
Lehr Belts for Glass Annealing
Furnace Mesh Belt
