Help Center1000mm Digital Track Gauge
Related Products

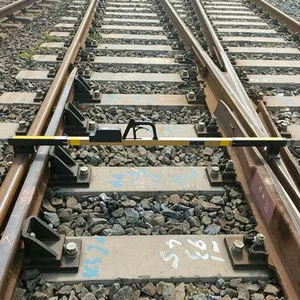

Digital Track Gauge is a special digital design railway measurement instrument. It is used for measuring the track gauge, check rail gauge, back to back distance, Cant (superelevation) and flangeway clearance.
The measured values are clearly displayed on a large OLED display . Night-time and tunnel work ,legible even in direct sunlight are supported . All datas can be in one view in real-time . The speical display design can be flipped to show the inverse image ,this allow to work by right hand as well as left one.
The strong temperature compensation function eliminates the influence of temperature expansion and cold contraction on the measured values’accuracy.This guarantees the device can work normally at -30~+55 degrees. GJC-TJG Series also obtain CE Certification and CRCC Approval.
1. Quick calibration operation: simple measurement process
2. Automatic reading function
3. Bluetooth data transmission and MessApp software function (optional)
4. Accurate digital measurement: maintain long-term stability
5. Temperature compensation: working temperature is -30~+55℃
6. Insulation design
7. Anti-electromagnetic interference
8. Power saving: if there is no operation within 15 minutes, the system will automatically shut down
9. Large capacity battery: longer standby time
10. Large OLED display: suitable for day and night
11. Waterproof: can be used in rainy days
| Model | GJC-TJG1000 |
| Track gauge(mm) | 955-1045 |
| Check rail gauge(mm) | 935-1025 |
| Back to back distance(mm) | 915-1005 |
| Cant(mm) | ±200 |
| Flangeway clearance (mm) | 20-107 |
| Track gauge accuracy(mm) |
±0.25 |
| Cant accuracy (mm) | ±0.45 |
| Length | 1600mm |
The digital track gauge is a important measurement device for track maintenance work , measures the following parameters:
Track gauge
Super-elevation(cant)
Check rail gauge
Back to back distance
Flangeway clearance
