Differential Pressure Gauge / Manometer / 20 Bar Air Gas Pressure Meter

Differential Pressure Gauge / Manometer / 20 Bar Air Gas Pressure Meter photo-1

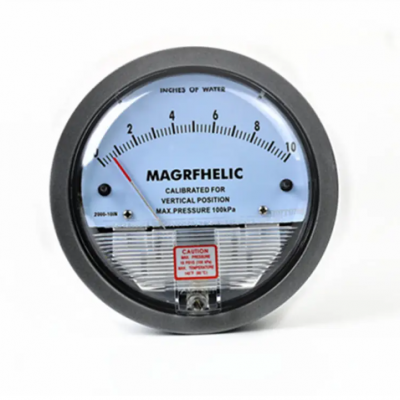

Differential Pressure Gauge / Manometer / 20 Bar Air Gas Pressure Meter photo-2

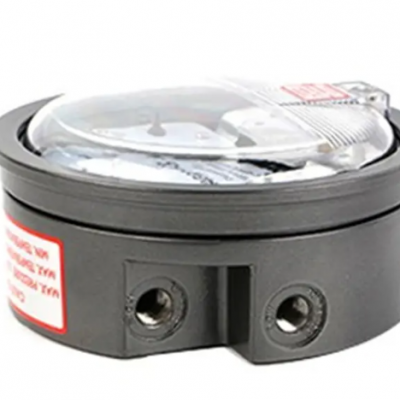

Differential Pressure Gauge / Manometer / 20 Bar Air Gas Pressure Meter photo-3

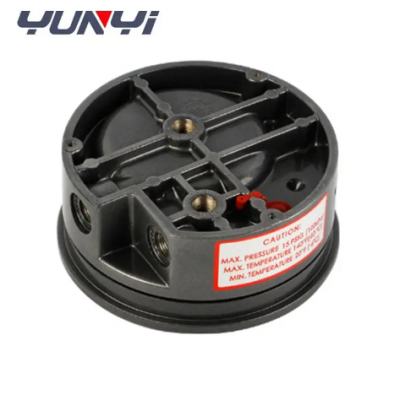

Differential Pressure Gauge / Manometer / 20 Bar Air Gas Pressure Meter photo-4

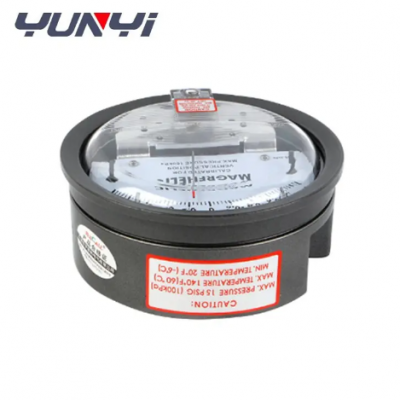

Differential Pressure Gauge / Manometer / 20 Bar Air Gas Pressure Meter photo-5
US$ 16 - 29 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yunyi
Place of Origin:
China
Model Number:
YD-2000 pressure gauge
Payment & Shipping
Payment Methods:
Port of Shipment:
haikou
Delivery Detail:
7 days
Brand Name Yunyi
Place of Origin China
Model Number YD-2000 pressure gauge

Differential Pressure Gauge / Manometer / 20 bar Air Gas Pressure Meter


Products Description

YD-2000 series differential pressure gauge minimum range 0-30Pa, maximum range 0-30KPa. There are as many as 88 kinds of range and metric / imperial units to choose from. This differential pressure gauge using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance.Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision.The design impact, shock and overload protection

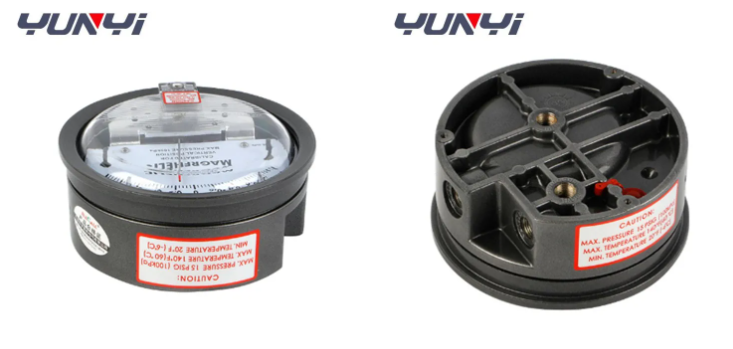

Details Images


Product Specification

Service: Air and non-combustible compatible gases

Housing: Die cast aluminum case and bezel, with acrylic cover, exterior finish is coated gray
Accuracy: ±2% of full scale@70°F (21.1°C)( ±3% on 125Pa, ±4% on 60Pa)
Pressure Limits: -70 to 100 KPa
Size: 4"diameter dial face
Temperature Limits: 20 to 140°F (-6.67 to 60°C)
Mounting Orientation: Diaphragm in vertical position
Connections: 1/8" NPT (F) high and low pressure taps,duplicated, one pair side and one pair back
Weight: 500g
Standard accessories: Two 1/8"NPT plugs for duplicate pressure taps, two1/8" pipe threads to rubber tubing adaptersand three flush mounting adapters with 3 screws
Mounting method: Can be flush or surface mounted and pressure connected with standard accessories



Applicaiton

For medical and health, microelectronics, aerospace, environmental engineering, bio-engineering, pharmaceuticals, building intelligence, HVAC, food and beverage, precision electronic processingFor medical and health, microelectronics, aerospace, environmental engineering, bio-engineering, pharmaceuticals, building intelligence, HVAC, food and beverage, precision electronic processing


FAQ

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q: How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: Could I visit your factory?

A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q: Can you provide OEM & Customized service?

A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.


Product Tags: Gas Pressure Gauge , Air Pressure Gauge , Differential Manometer Pressure Gauge
