Composite bridge plug for oilfield

Name: Composite bridge plug for oilfield
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Tianjin or Qingdao or as client's requirement
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	China	Model Number:	4-1/2“-9-5/8“	Certification:	API
Processing Type:	Other	Machine Type:	Drilling Tool

Product Description

Products Description

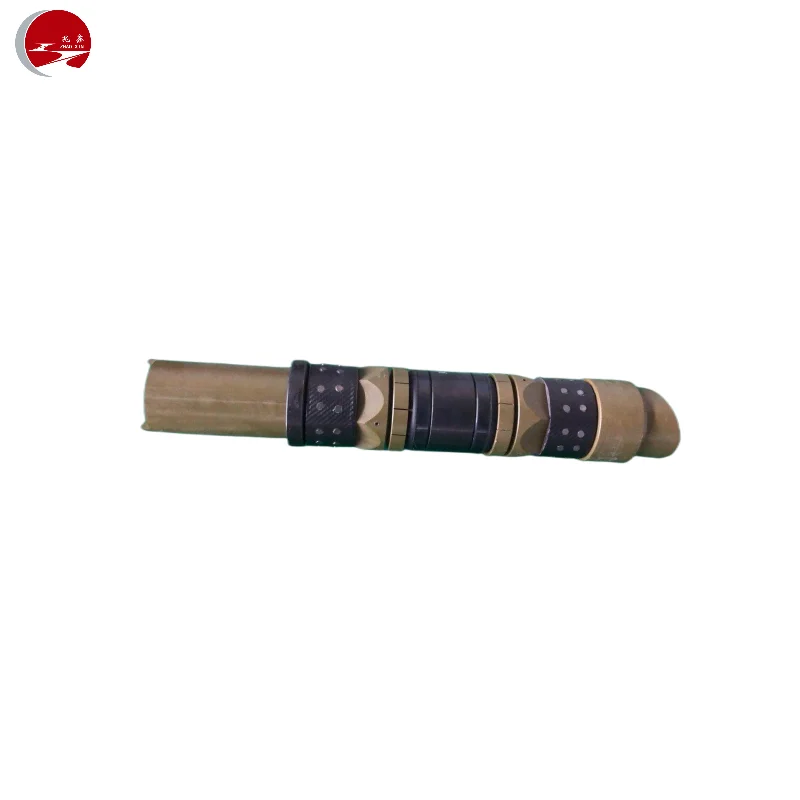

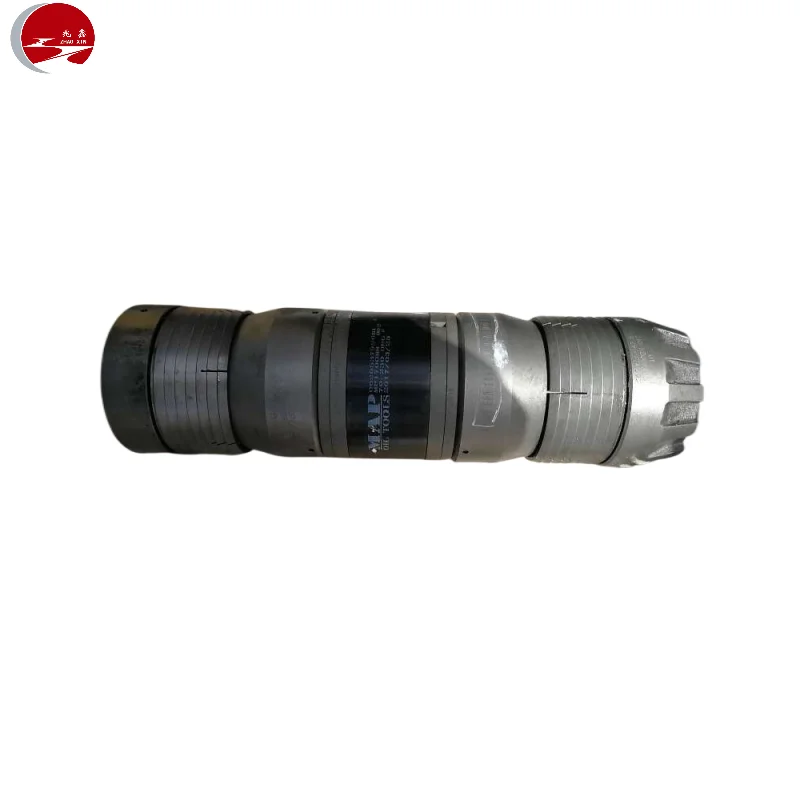

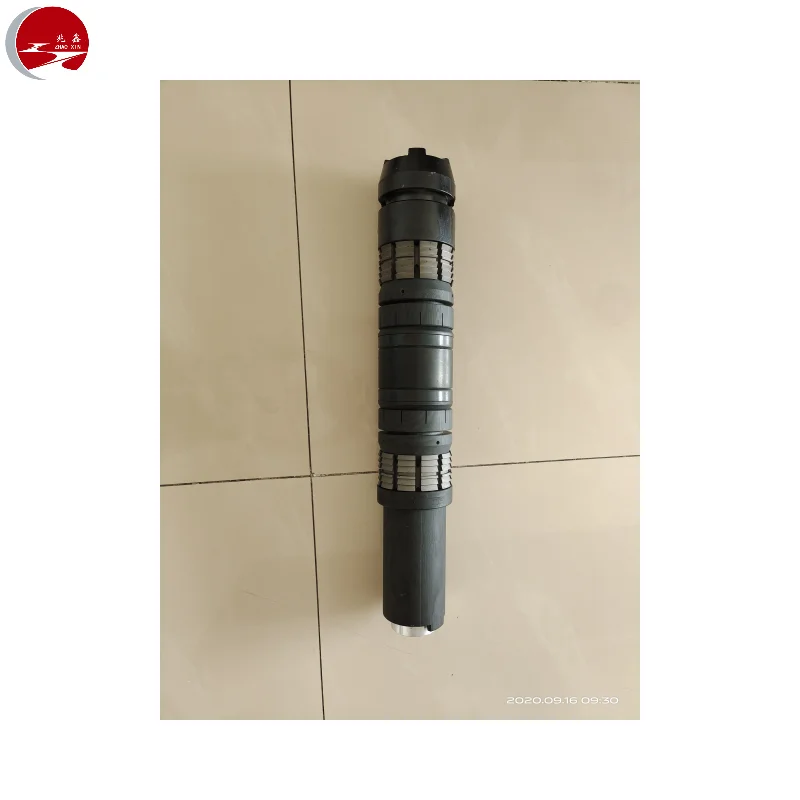

The Composite Bridge Plug is made from composite material and easy to drill out. It is mainly composed of mandrel, rubber, slips, cones, protection bowls, release/start pins, lower sub and so on. The composite bridge plug is mainly used for provisional plugging in oil and gas well, and fracturing construction

Working principle

The opposite power produced by setting tool (wire line or transmitting hydraulic pressure in oil tube) acts on the lower sub, shears the starting dowels and exerts compressive force on rubber through cone. Inside the tension range slips dehisce and inlay the in wall of the casing, rubber expand to the in wall of the casing and seal up it, finish setting. When the tension rises to the shear rating, the starting dowels be sheared and the setting tool separates from the bridge plug, finish releasing. After taking out the setting tool, the frac ball that be put into the well will work hermetically with the head face of the mandrel. The plug can be quickly drilled out under the necessity of the after steps

Drilling out

Recommend the use of special milling tools. Recommend rotation rate: 60~150rpm, bit weight: 5~15kN, viscosity of drilling plug fluid:15~30mPas and minimum cyclic velocity: 36.6m/min, to make sure the debris circulates out. After the preparation is done, start the screw drill and drill slowly into the bridge plug. Ensure continuous drilling speed by applying drilling pressure. The torque added to the drilling tool should not be greater than the recommended value. Excessive drilling pressure increases the friction resistance of the pipe string and results in large pieces of debris which must be salvaged separately.

Specification

Type	DTJ92	DTJ100	DTJ112	DTJ145
Suitable casing size	9.5-13.5lb/f（99.56mm-103.88mm）	13-18 lb/f（108.62mm-114.14mm）	17-23lb/ft （118.62mm-124.26mm）	26-32lb/ft （154.78mm-159.42mm）
Max OD	3.62"（92mm）	3.93”(100mm)	4.4"（112mm）	5.68"（144mm）
Min ID	1.1"（28mm）	1.8”(30mm)	1.5"（38mm）	1.14"（45mm）
Total length	26"（660mm）	26"（660mm）	26"（660mm）	39.4"（1000mm）
Working pressure	10000psi （70MPa）	10000psi （70MPa）	10000psi （70MPa）	10000psi （70MPa）
Working temperature	300℉（150℃）	300℉（150℃）	300℉（150℃）	300℉（150℃）
Seating load	120-130kN	160-180kN	160-180kN	160-180kN

Company Information

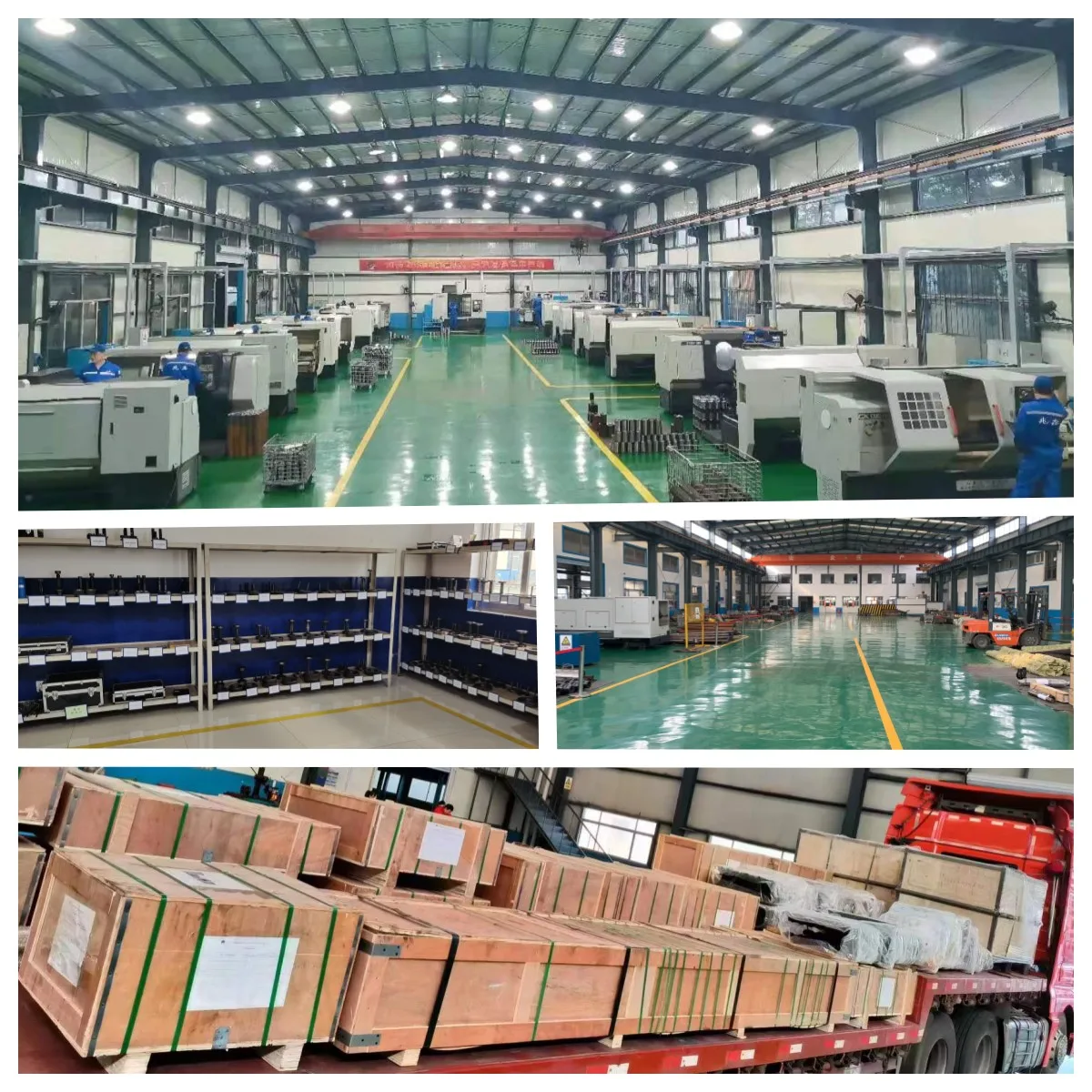

Dongying Zhao Xin Industry and Trade Co., Ltd. was established in 2001. Our company is located in Dongying city which has the second largest Oilfield (Shengli Oilfield) in China. We are a company, which conducts scientific research, development, manufacture, sale and after sale service, is one enterprise for oilfield tool and equipment manufacturer. Our main products include drilling equipment, oil production equipment, oil well service tools. Currently, our products are already exported to North America, South America, Middle East, Middle Aisa, India and other countries and regions. We are an I S O 9 0 0 1, I S O 1 4 0 0 1, I S O 4 5 0 0 1,API certified company and have all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that all products match the quality & reliability Standards. We also have an independent measurement and inspection department, the inspection and measuring tools are fully equipped, we control each process to ensure that all products are qualified. Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .
