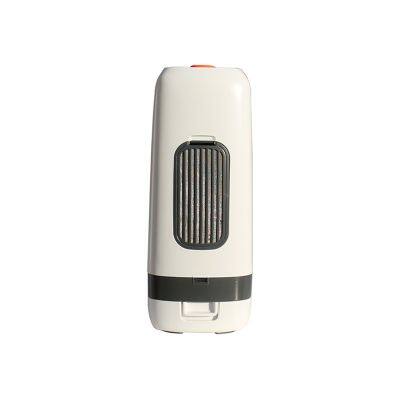

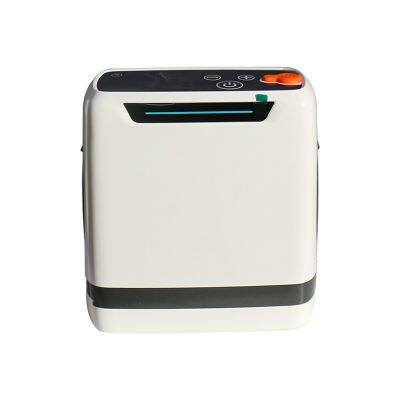

Mobile Oxygen Concentrator

Product highlight: It produces high-purity oxygen and can be used in homes, cars, and outdoors.

Product advantages:

1. Pulse oxygen generation. Ultimate silence, small size, light weight, minimal maintenance, and large screen display.

2. Compact and portable, although small in size, it can generate 5L/minute of oxygen.

Features: The molecular sieve can be disassembled independently, with a large capacity battery, and can be used normally at high altitudes.

There are multiple alarm functions: high temperature alarm, machine shutdown alarm, compressor shutdown alarm, low oxygen concentration alarm, low gas storage tank pressure alarm, and low battery alarm.

Product application: Suitable for medical, health, scenic spots, and high-altitude tourism.

Product parameters:

Power: AC100-240V 50-60Hz DC12-24V,

Size: 183 * 86 * 199mm,

Net weight: 1.98kg,

Oxygen flow rate: 1, 2, 3, 4, 5L/min adjustable, 6 gears,

Oxygen flow rate: 90% -96%,

Noise: less than 40dB,

Display screen: 3.2-inch TFT,

Export pressure: 120 kPa,

Battery: can be fully charged within 2 hours. After charging, the battery can be used for 1.5-4.5 hours.

High altitude: 5000m can be used normally.

Working principle of high concentration oxygen concentrator:

The air compressor removes solid impurities such as oil stains, dust, and most of the gaseous water through a pre-treatment system, and enters the adsorption tower containing molecular sieves. The nitrogen, carbon dioxide, and water vapor in the air are adsorbed, and the cycle of vacuum desorption allows compressed air to alternately enter the adsorption tower for separation, continuously producing high concentrations of oxygen.

Medical applications:

Examples of acute diseases that require oxygen concentrators for short-term oxygen therapy include:

Bronchopulmonary dysplasia (BPD)/Respiratory distress syndrome (RDS)/Pneumonia/Asthma.
