Hydraulic Fracturing Dissolvable Metallic Frac Balls

Hydraulic Fracturing Dissolvable Metallic Frac Balls photo-1
Hydraulic Fracturing Dissolvable Metallic Frac Balls photo-2
Hydraulic Fracturing Dissolvable Metallic Frac Balls photo-3
Hydraulic Fracturing Dissolvable Metallic Frac Balls photo-4

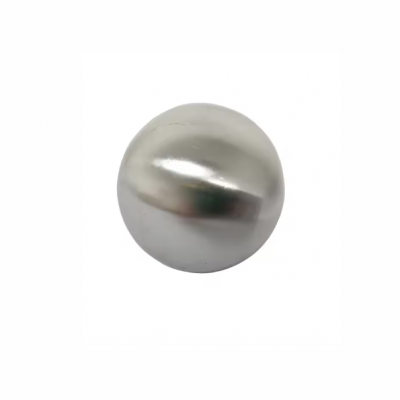

Hydraulic Fracturing Dissolvable Metallic Frac Balls photo-5
US$ 10 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1999
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao or as client's requirement
Delivery Detail:
Delivery time depends on order quantity.


Product Description

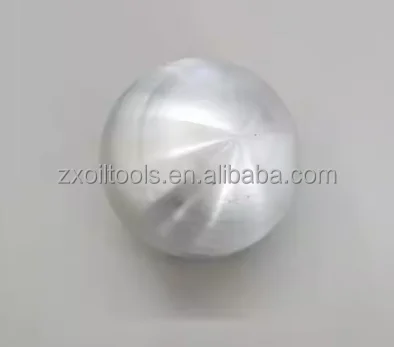

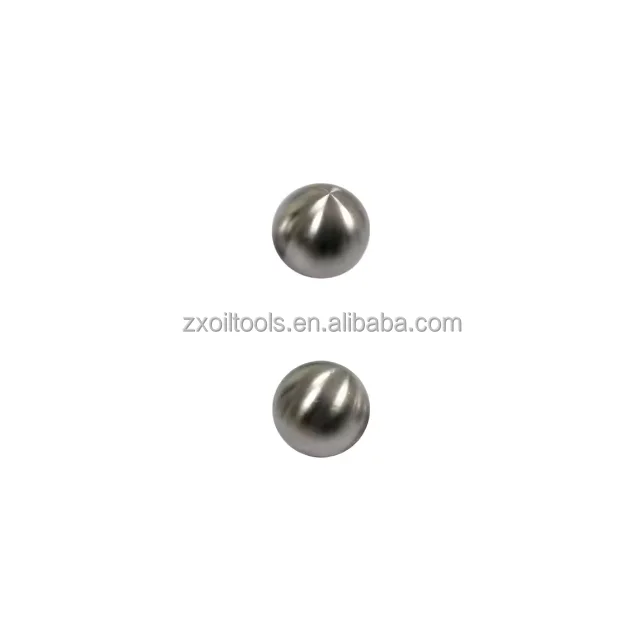

Dissolving frac ball, dissolvable frac ball simply known as “frac balls.” These balls are spherical-shaped devices that are utilized during the process of hydraulic fracturing. Hydraulic fracturing, commonly referred to as “fracing,” is a technique that involves creating small cracks or fractures deep in the ground. These fractures enable oil and gas to flow to the surface, where it is collected and processed for future use. Among the tools used in the fracturing process, frac balls are pumped into the well in order to activate various devices. Specifically, the balls are designed to activate tools as well as to isolate portions of a well during multi-stage fracturing operations. These two processes allow for the accumulation of pressure in a specific area, thereby enabling fracturing in a target section of the well.

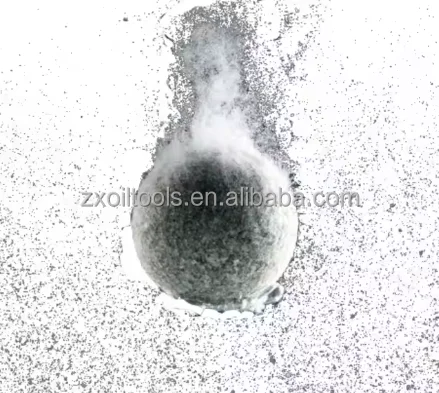

A kind of degradable magnesium alloy material, which is widely used in the field of underground tools for oil extraction. It is made of soluble magnesium alloy. The tool is ablated after the completion of the work task and then mixed in the liquid. , Can be completely degraded, there is no easy card astringent, blocking the channel problem, thus eliminating the need for drilling recovery process, reduce the project difficulty, improve the construction efficiency.

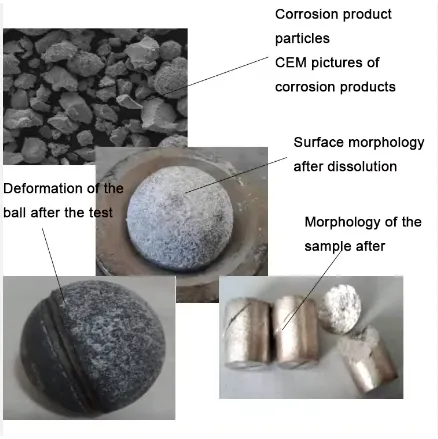

Sizes from 0.75 inches to 4.50 inches (19.05 mm to 114.30 mm) are available, please refer to the below spec. and test data, and contact us for more details, customized solution is also available.

Material
Dissolvable Aluminum Alloy
Specific Gravity
2.8
Tensile Strength
580Mpa
Yield Strength
503Mpa
Coefficient of Thermal Expansion
23.5μm/m.k
Melting Point
480℃
Initial Temp. of Hydrolysis
55℃
Hydrolysis Rate
60g/h~3.5g/h (customization available)
Pressure Index
85Mpa
Temperature Index
>160 ℃

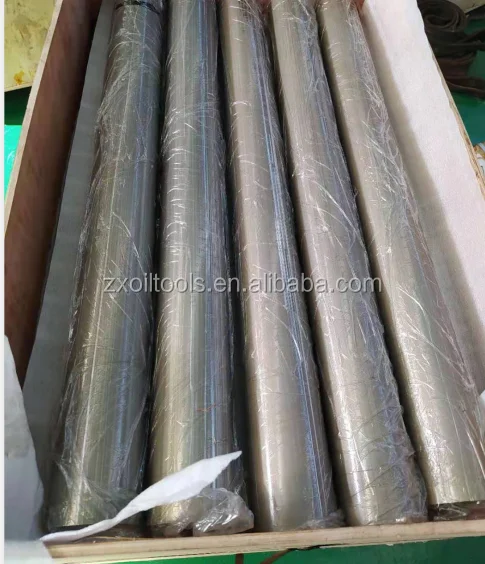

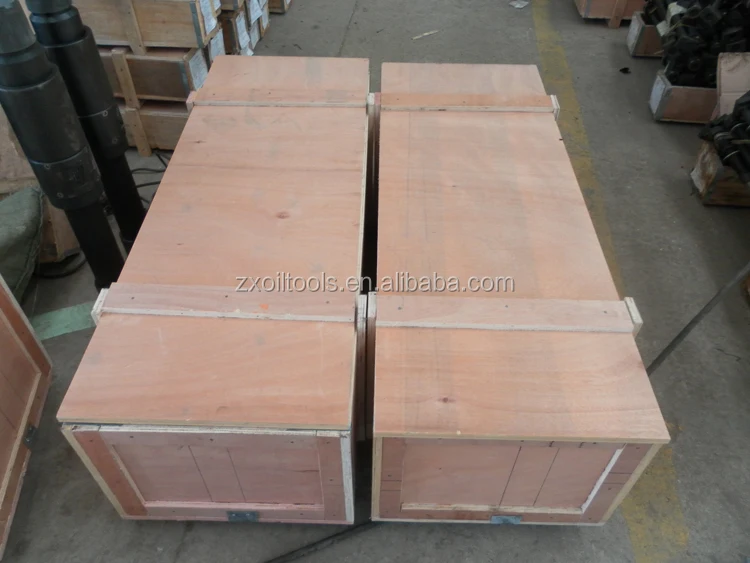

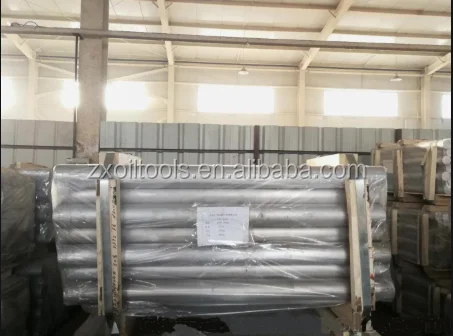

Packaging & Shipping

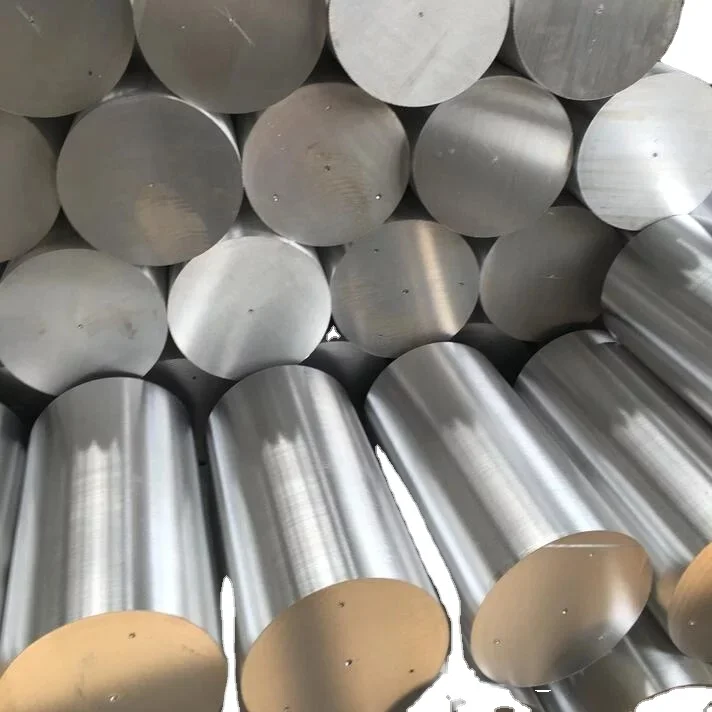

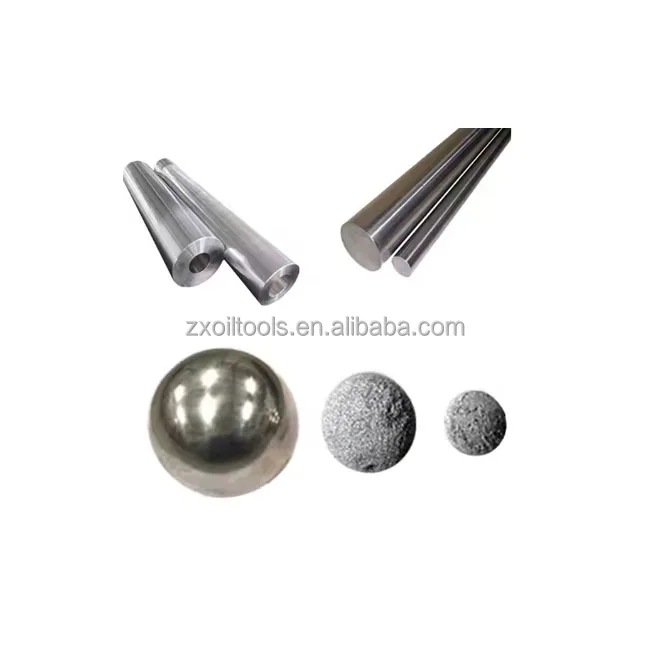

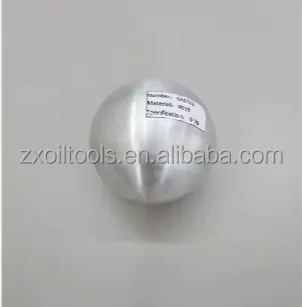

Dissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfield

 Dissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfield

Dissolvable frac ball 16mm-108mm for oilfield



Company Information

 Dissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfieldDissolvable frac ball 16mm-108mm for oilfield



Dongying Zhao Xin Industry and Trade Co., Ltd. was established in 2001. Our company is located in Dongying city which has the second largest Oilfield (Shengli Oilfield) in China. We are a company, which conducts scientific research, development, manufacture, sale and after sale service, is one enterprise for oilfield tool and equipment manufacturer. Our main products include drilling equipment, oil production equipment, oil well service tools. Currently, our products are already exported to North America, South America, Middle East, Middle Aisa, India and other countries and regions. We are an I S O 9 0 0 1, I S O 1 4 0 0 1, I S O 4 5 0 0 1,API certified company and have all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that all products match the quality & reliability Standards. We also have an independent measurement and inspection department, the inspection and measuring tools are fully equipped, we control each process to ensure that all products are qualified. Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .



FAQ



1. Are you manufacturer or trader company?

We are manufacturer and we could supply more professional technical services and goods.


2.The goods are new or used, if you will make technical drawing and production plans for us?
All our goods are new ones, the production schedule will offer to you once getting your purchase order.

3. Do you have related inspection equipments?

Yes, our factory is equipment all test equipments, and I could send their pictures and test documents to you.

4. Could you tell me if your price includs the third party inspection charges?

No, our price do not include the third party inspection charge, and we will notice on our Quotation.

5. Where did your products sell out?

United States, Canada, Mexico, Venezuela, Colubia, and other South American Region Russica, Azerbaijan and Central Asia Countires, UAE, Saudi Arabia and Mddle East Counties.


Product Tags: Magaluma Alloy Dissolvable Frac Ball for water and KCL , Magnesium Alloy Dissolving Frac ball for sale , Dissolvable Magnesium Alloy Balls Dissolvable Frac Balls in Oil Drilling above 180 Mpa for fracturing
