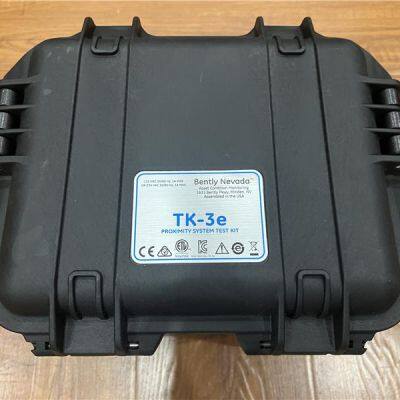

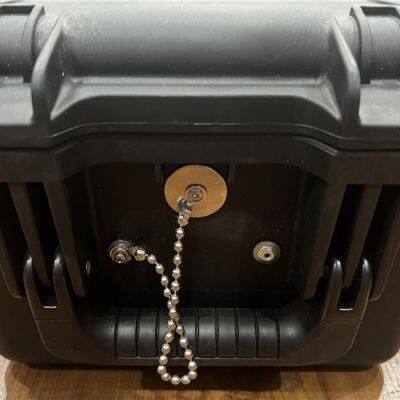

Bently Nevada TK-3E 177313-02-02 TK3 Proximity System Test Kit

Xiamen Hongxinhe Trading Co.

Contact:

Joyoung International Trading Co., Limited

Tyrannie

Email:sales27@htechplc.com

Whatsapp/Wechat/Tel:+8618030053926

Address: Room 1904, Building B, Diamond Coast, No. 96 Lujiang Road, Siming District, Xiamen, Fujian, China 361001

Description:

new and original package with one year warranty

To get our best price & fast quotation, pls send us e-mail now.

BENEFITS:(I WILL GIVE YOU A REPLY IMMEDIATELY)

1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

Product details:

The TK-3 Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada monitors. It verifies the operating condition of the monitor readouts as well as the condition of the proximity transducer system. A properly calibrated system ensures that the transducer inputs and the resulting monitor readings are accurate.

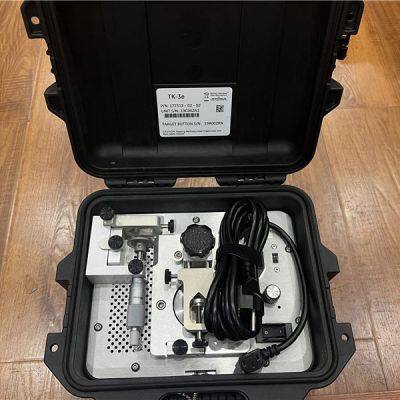

The TK-3 uses a removable spindle micrometer assembly to check the transducer system and position monitor calibration. This assembly features a universal probe mount that will accommodate probe diameters from 5 mm to 19 mm (0.197 in to 0.75 in). The mount holds the probe while the user moves the target toward or away from the probe tip in calibrated increments and records the output from the Proximitor® Sensor using a voltmeter. The spindle micrometer assembly also features a convenient magnetic base for ease of use in the field.

Vibration monitors are calibrated using the motor-driven wobble plate. A swing-arm assembly located over the wobble plate holds the proximity probe in place. This assembly uses a universal probe mount, identical to that used with the spindle micrometer assembly. By using the absolute scale factor of the proximity probe in conjunction with a multimeter, the user adjusts the probe to find a position where the desired amount of mechanical vibration (as determined by peak-to-peak DC voltage output) is present. No oscilloscope is needed.

The user can then compare a vibration monitor’s reading to the known mechanical vibration signal input viewed by the proximity probe. The mechanical vibration signal from the TK-3 can range from 50 to 254 μm (2 to 10 mils) peak-to-peak.

Physical Size:

Height: 195 mm (7.68 inches)
Width: 299 mm (11.8 inches)
Depth: 248 mm (9.76 inches)
Weight: 5.22 kg (11.5 lb)

You will get the following services for free:

1.100% new and original factory anti-static bag with individual sealed inner box;
2.Large ventory, even some discontinued models;
3.Quantity and technique are among the top five in China;
4. The most competitive price;
5.1 year warranty;
6.100% fast refund or exchange for quality problems;
7.Expert remote technical service;
8.Work together for a long term business.

We supply :
BENTLY EPRO ALL SERIES OF PRODUCTS SPAR PARTS PROBE Proximitor
PLC : AB,ABB,GE,Schneider
DCS : ABB,Siemens MOORE,Foxboro,Westinghouse,YOKOGAWA
ESD : Triconex,HIMA,BENTLY,ICS
Excitation cards : ABB,GE Marke
