Home > Products > microinverter > Inver Energy Solar Balcony System 600W Inverter 800w Home Solar Power System Overseas Warehousing Microinverter
Inver Energy Solar Balcony System 600W Inverter 800w Home Solar Power System Overseas Warehousing Microinverter
- Xiamen
- T/T
- 20 days
Product Details
| Brand Name | Inver Energy | Place of Origin | China | |
| Model Number | IS-080 | Type | DC/AC Inverters | |
| Size | 23.5*22.3 | Weight | 3.5 | |
| Output Power | 201 - 400KW | Output Type | Dual | |
| Output Current | 3.82A.a.c. | Output Frequency | 50Hz | |
| Output Voltage | 800 | Input Voltage | 22 |
Product Description
SINGLE-IN MICROINVERTER 800W
· Extreme Environmental Tolerance
· Authority Certification
· Rapid Shutdown Function
· Module Level Monitoring
Model | IS-080 |
Input Data (DC) | |
Max Input Voltage | 60V d.c. |
Max. Continuous Input Current | 2*16A d.c |
Max. Input Short Circuit Current | 2*20A d.c |
Range of Input Operating Voltage | 16-60V d.c. |
Start-up Voltage | 22V d.c. |
Peak Power Tracking Voltage | 25-48V d.c |
Output Data (AC) | |
Max. Continuous Output Power | 800VA |
Max. Continuous Output Current | 3.47A.a.c. |
Nominal Output Voltage | 230V a.c |
Nominal Output Frequency | 50Hz |
Output Power Factor (Default / Adjustable) | 0.99/0.95 leading...0.95 lagging |
Efficiency | |
Peak Conversion Efficiency | 96.5% |
Mechanical Data and Features | |
Operating Ambient Temperature | -40 to +65℃ |
Waterproof grade | IP67 |
Protective Class | Ⅰ |
Monitoring system | Cloud |
Heat dissipation mode | Self-Cooling |
Compliance | VDE 4105:2018, VDE 0124-100:2020-06, EN/IEC 62109-1:2020, EN/IEC 62109-2:2011, EN IEC 61000-6-1:2019, EN IEC 61000-6-32021 |

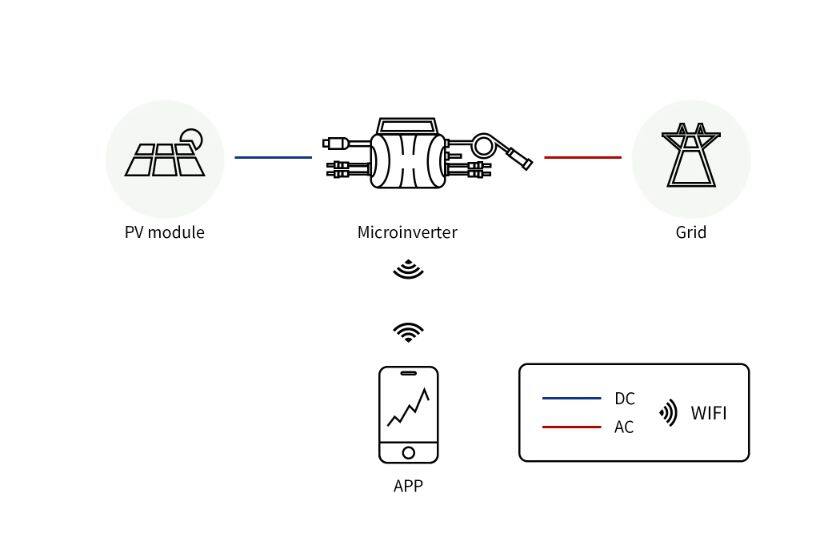

Invertechs monitoring equipment provides real-time data access and module-level monitoring to optimize efficiency and maximize energy production.
With a seamless data integration monitoring platform, you can stay on top of your solar system.
