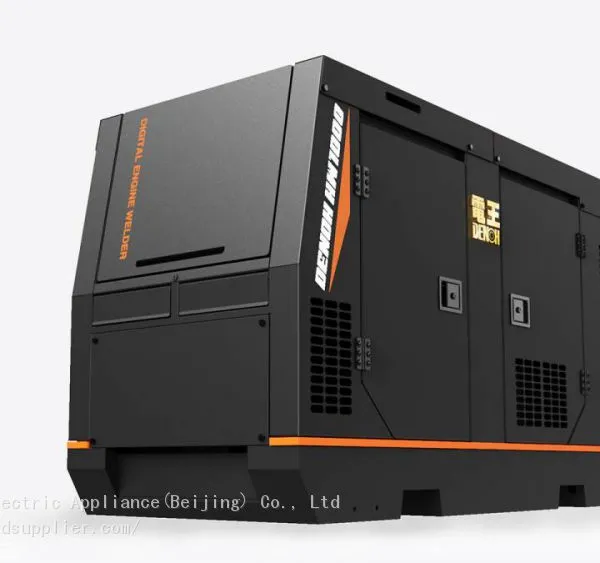

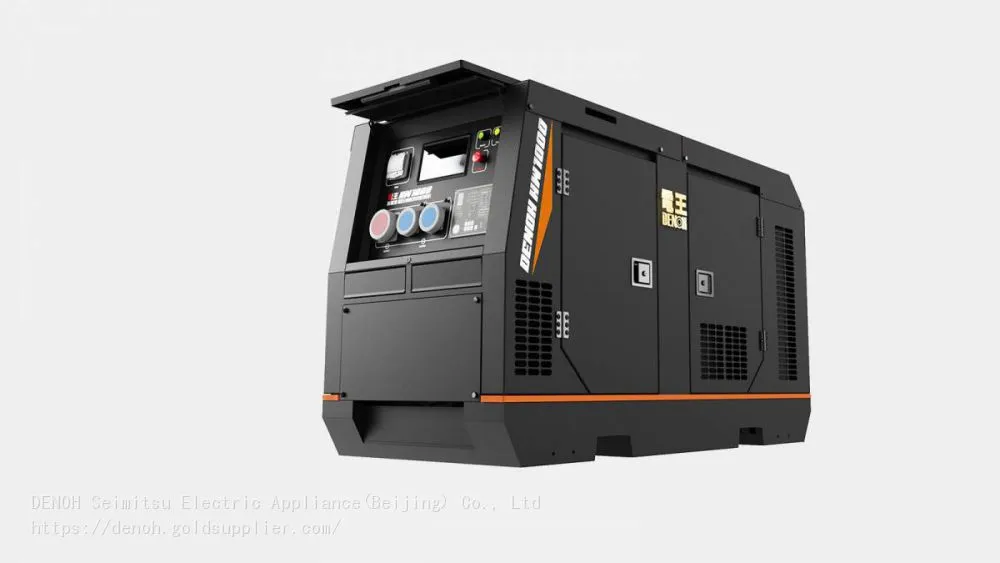

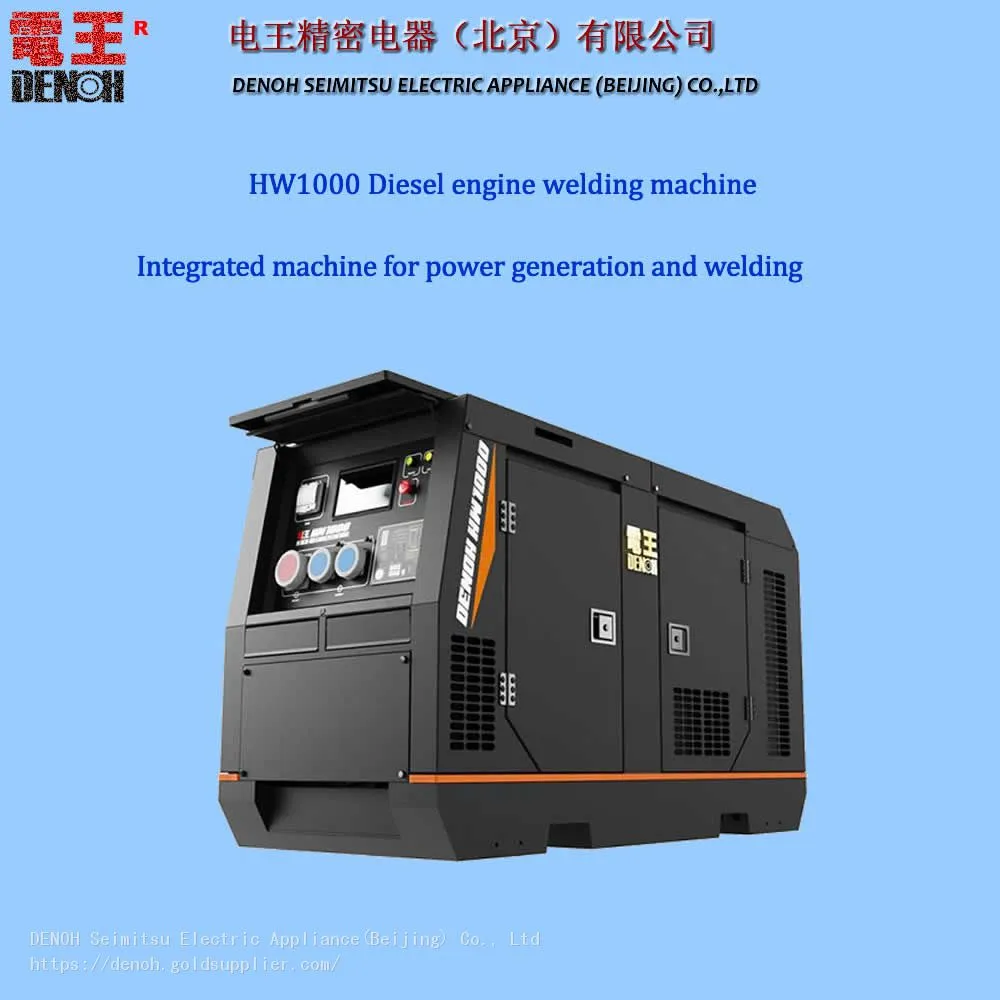

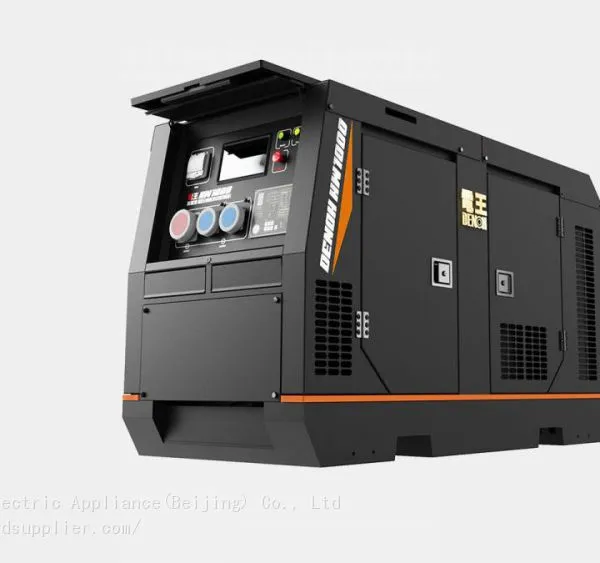

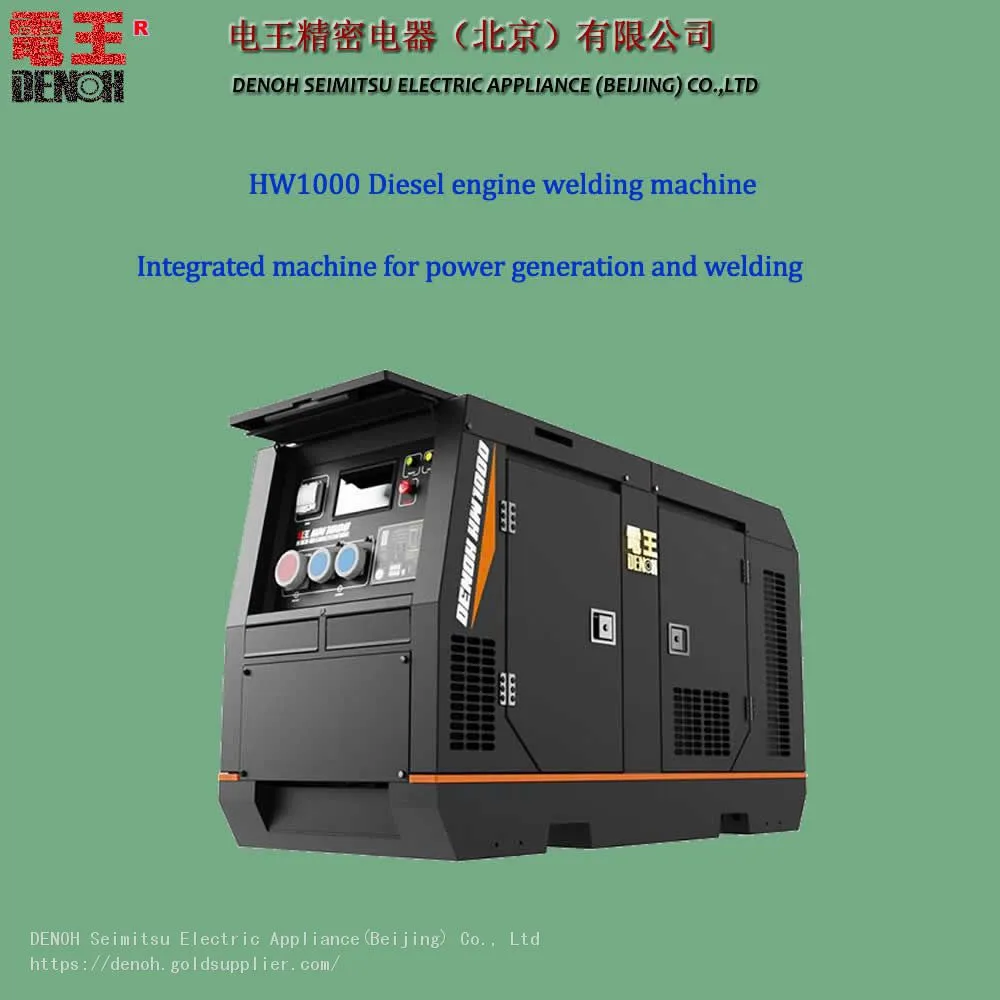

Widely Used Multi-function Welder Movable Power Station

Description:

1. Full digital control engine welding machine,can provide constant voltage and current for automatic welding to get excellent welding characteristics.

2. Can Meet flux core gas shielded welding,flux core self shielded welding,MIG/MAG welding and pulse MIG/MAG welding

3. Adopted full digital control+IGBT chopping technology,can achieve super fast electric arc response.

4. Brush less speed variation electric generation technology,Powerful ability of continuous

working,High electric generation efficiently.

5. Patent CN208046464U《A high-power sine wave AC switching power supply》.Superior Performance.Output pure sine wave power frequency AC current;The power output of engine (Rotation speed) change along with power output magnitude of the electric generator.And don’t affect the stable output of AC electric

6. The variable speed constant voltage engine welding machine adopts an intelligent accelerator engine, with a speed range of 900RPM to 1800RPM

7. Patent CN105515325B<A 50kW-100kW permanent magnet automatic speed regulation constant voltage>.This patent technology can achieve that the engine rotation speed could be adjusted automatically according to actual load power variety.So that lower the oil consumption,prolong running time,bring the economic benefit for client. This is could not be realize by traditional electric generator and engine welding machine.

8. The engine adopts 3-way output,Supply electricity for U,V,W inverter system separately. The 3-phase independently each other,and non-need transformer while output,improve the efficiency of the whole electric generator system,lower the weight and the cost;The 3-way output of the electric generator part plays the role of transformer isolating,can output AC electricity via 3-Phase 4-wire without needing transformer.

Main Advantage:

Having excellent fuel saving skills

Equipped with a unique intelligent throttle

The speed can be automatically adjusted according to the actual changes in load conditions

Fuel consumption is 20% lower than that of ordinary units

Energy saving is mainly reflected in the welding machine of variable speed and constant pressure engines
