High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800

High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 thumbnail-1
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 thumbnail-2
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 thumbnail-3
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 thumbnail-4
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 thumbnail-5
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 photo-1
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 photo-2
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 photo-3
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 photo-4
High Quality 7 in 1 Functions OTDR VFL Event OPM Light Source OTDR Max 40dB With PON Function NK6800 photo-5
US$ 540 - 1440 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CSYHT
Place of Origin:
China
Model Number:
NK6800 Series
Contact Supplier Request Quote Chat Now
Huizhou YHT Broadband Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CSYHT
Place of Origin China
Model Number NK6800 Series


FTTH Launch Cable Mini OTDR 1310/1550/1610nm 12 in 1 OTDR for Fiber OpticTester OTDR NK6800
Product Description

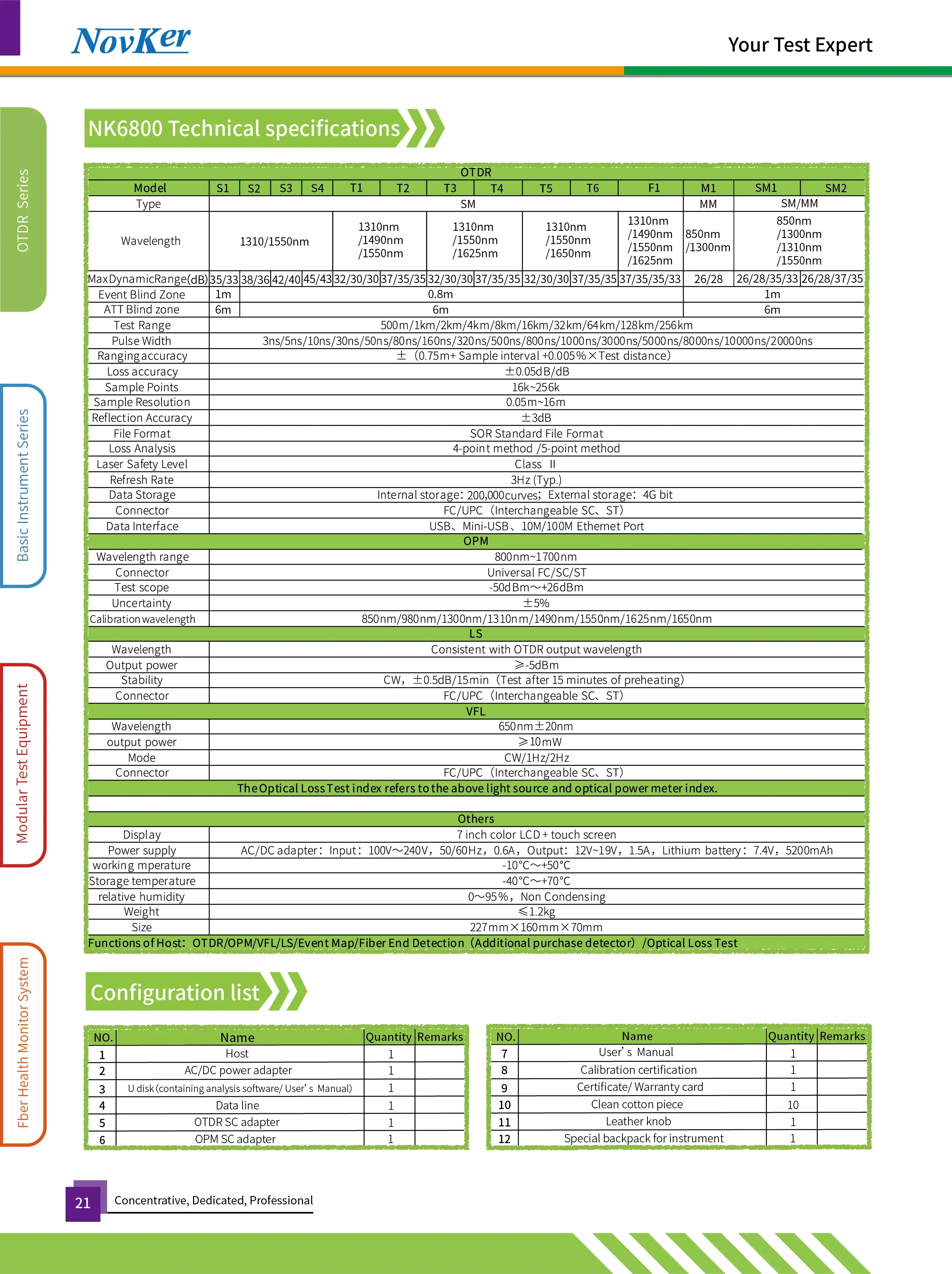

Specification


Model
OTDR
S1
S2
S3
S4
T1
T2
F1
M1
SM1
Type
SM
MM
SM/MM


Wavelength

1310/1550nm

1310nm
/1490nm
/1550nm

1310nm
/1550nm
/1625nm
1310nm
/1490nm
/1550nm
/1625nm

850nm/
1300nm
850nm
/1300nm
/1310nm
/1550nm
Max
Dynamic Range
35/33dB
38/36dB
42/40dB
45/43dB
37/35/35dB
37/35/35dB
37/35/35/35dB
28/26dB
28/26/35/33dB
Event Blind Zone
1m
0.8m
0.8m
0.8m
0.8m
0.8m
0.8m
1m
1m
ATT Blind zone
6m
6m
6m
6m
6m
6m
6m
6m
6m
Test Range
500m/1km/2km/4km/8km/16km/32km/64km/128km/256km
Pulse Width
3ns/5ns/10ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1000ns/3000ns/5000ns/8000ns/10000ns/20000ns
Ranging accuracy
± (0.75m+ Sample interval +0.005%×Test distance)
Loss accuracy
±0.05dB/dB
Sample Points
16k~256k
Sample Resolution
0.05m~16m
Reflection
Accuracy
Reflection
AccuracyReflection
AccuracyReflection
Accuracy
File Format
SOR Standard File Format
Loss Analysis
4-point method /5-point method
Laser Safety Level
Class Ⅱ
Refresh Rate
3Hz (Typ.)
Data Storage
Internal storage :8G ,External storage :4G
Output Interface
FC/UPC (Interchangeable SC ,ST)
Data Interface
2 USB ports ,Mini-USB ,10M/100M Ethernet Port





FTTH Launch Cable Mini OTDR 1310/1550/1610nm 12 in 1 OTDR for Fiber OpticTester OTDR NK6800FTTH Launch Cable Mini OTDR 1310/1550/1610nm 12 in 1 OTDR for Fiber OpticTester OTDR NK6800FTTH Launch Cable Mini OTDR 1310/1550/1610nm 12 in 1 OTDR for Fiber OpticTester OTDR NK6800FTTH Launch Cable Mini OTDR 1310/1550/1610nm 12 in 1 OTDR for Fiber OpticTester OTDR NK6800





 FTTH Launch Cable Mini OTDR 1310/1550/1610nm 12 in 1 OTDR for Fiber OpticTester OTDR NK6800FTTH Launch Cable Mini OTDR 1310/1550/1610nm 12 in 1 OTDR for Fiber OpticTester OTDR NK6800





Key Attributes
Industry-specific attributes
Type
OTDR


Other attributes
Model Number
NK6800


Place of Origin
Guangdong, China


Brand Name
CSYHT


Use
FTTX


Warranty Time
5 YEARS


Network
None


Product Name
Fiber Optic OTDR Tester


Wavelength
1310/1490/1550/1620nm


Dynamic Range
26/28/35/33dB


Test Range
500m-256km


Sample Points
16-256k


Refresh Rate
3Hz


Connector
FC/UPC


Data Interface
USB, Ethernet Port


Screen
7 inch


Loss threshold
±0.05dB


Packaging and Delivery
Packaging Details
Fiber Optic OTDR Tester
3KG in 1 Carton Box;
Support OEM Label & Box;


Selling Units:
Single item


Single package size:
15X15X10 cm


Single gross weight:
3.000 kg



Lead Time
Quantity (sets) 1 - 1 > 1
Lead time (days) 15 To be negotiated




For more customization details, message or email supplier!



Company Information

Shenzhen YHT Broadband Equipment Co., Ltd

Provide fiber optic products such as fiber optic terminal box, fiber optic patch panel, fiber optic distribution box, ODF, FTTH box, fiber optic splice closure, fiber optic splitter box, cassette, cabinet, fiber optic connector, adapter, jumper, pigtail, PLC splitter and so on.
There are hardware, diemaking, injection moulding, painting, assembling, fiber optic cable production, connector and cable assembling workshops for producing fiber optic splicing, connection, distribution and termination products.
Outdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution Box
Outdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution BoxOutdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution BoxOutdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution BoxOutdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution BoxOutdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution BoxOutdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution BoxOutdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution BoxOutdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution Box
Packaging & Shipping

Fiber Patch Panel, Fiber Terminal Box, Fiber Splice Closure, Fiber Patch Cord, Fiber Adapter, PLC Splitter, Fusion Splicer, OTDR, FTTH tool...

Outdoor Wall Mounted 1*8 PLC Splitter SC Simplex Adapter Fiber Terminal Box Outdoor Distribution Box

FAQ

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment
If you have another question, pls feel free to contact us as below:



Q: CAN YOU DO OEM & ODM SERVICE?

A: Yes, we can do OEM & ODM service. We have professional engineer team, over 10 peoples, to make product design & drawings, Logo design, carton box design...
