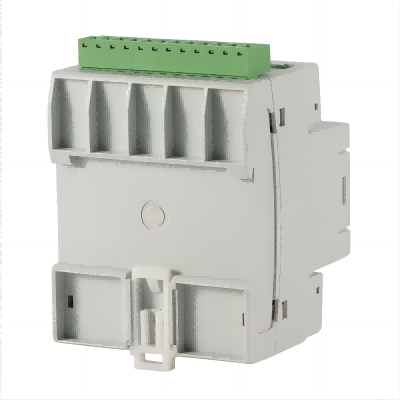

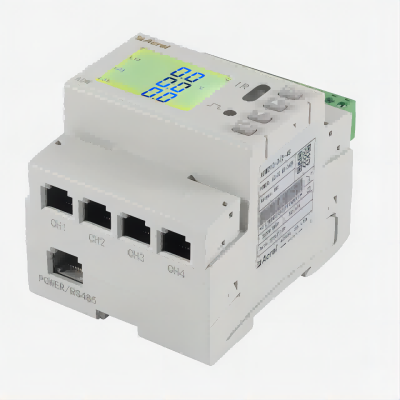

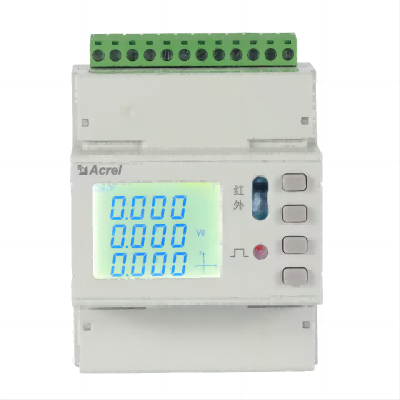

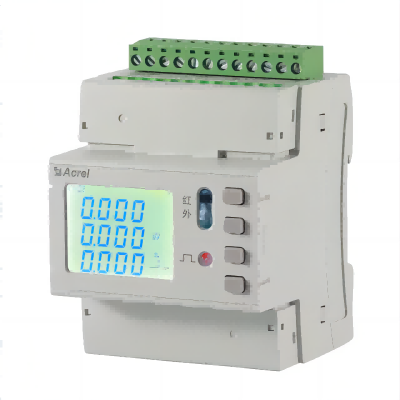

Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters

Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters thumbnail-1
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters thumbnail-2
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters thumbnail-3
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters thumbnail-4
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters thumbnail-5
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters photo-1
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters photo-2
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters photo-3
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters photo-4
Acrel DTSD1352-4S Rail Multi Circuit Power Meter Meter Apply to the Tower Base Station to Measure the Full -power Parameters photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Acrel Electric Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

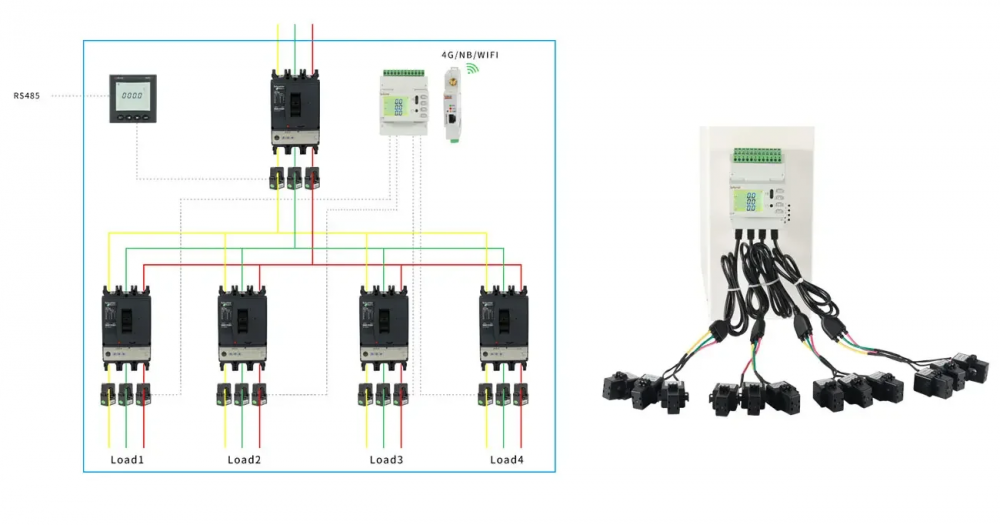

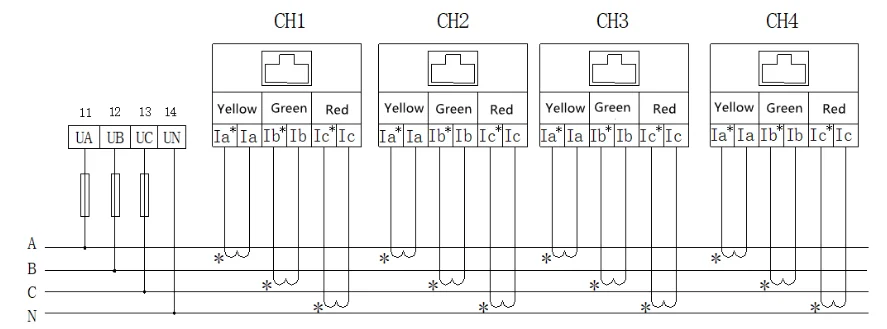

DTSD1352-4S series DIN-rail type multi-circuit power meter is mainly used for the full electric parameter measurement of multiple circuits, and can be connected to the current input of 4 three-phase circuits or 12 single-phase circuits at the same time. It can measure parameters such as voltage and current, power, power factor, phase angle, unbalance, and harmonics.

Features
DTSD1352-4S Technical Parameter
Auxiliary Power
AC/DC 85～265V; power consumption≤10VA


Input Signal
Frequency
45～65Hz


Voltage
Rated value: AC 3×220V/380V
Overload: 1.2 times rated value (continuous); 2 times rated value/1 second
power consumption: ≤ 0.5VA（each channel）


Current
Rated value: Secondary input rated current：50mA
Overload: 1.2 times rated value (continuous); 10 times rated value/1 second
power consumption: ≤ 0.5VA（each channel）


Measurement Accuracy
Frequency: 0.05Hz, voltage and current: 0.5 class, active energy: 1 class,
reactive energy: 2 class; 2nd to 31st harmonic accuracy: ±1%


Function


Pulse output
Output method: optocoupler pulse with open collector,the pulse constant
defaults to 400imp/kWh (and active open input can only be either-or.)
communication
RS485 interface, Modbus-RTU protocol; baud rate 1200～38400


Switch
Input
2-way or 4-way passive dry contact input, built-in power supply;
2-way active wet node input (AC220V), identify the oil generator and mains access (and pulse output can only be either-or.)
Output
Output method: relay normally open contact output; Contact rating: AC250V/3A DC 30V/3A
Safety
Power frequency withstand voltage
>AC 2kV/1min
Insulation resistance
Input and output terminals to the chassis >100MΩ


Environment
Operating temperature：-20℃～+60℃；
Storage temperature：-40℃～+70℃；
Relative humidity：≤95% no condensation；
Altitude：≤2500m；
Electromagnetic Compatibility
better than 3 class
