Help CenterLow Insertion Loss Wide Wavelength Range 1X32 Optical Switch Module
Related Products
-
1X32 Optical Switch With Hi1060 Fiber 980nm WavelengthNegotiableMOQ: 1 Piece -
1X20 Optical Switch With Sm 9/125um Fiber 1310nm WavelengthNegotiableMOQ: 1 Piece
-
1X30 Optical Switch With Sm 9/125um Fiber 1550nm WavelengthNegotiableMOQ: 1 Piece
-
1X30 Opto-Mechanical Optical Switch ModulesNegotiableMOQ: 1 Piece
-
Low Insertion Loss Builds Fiber Self-Healing Network 1X32 Fiber Optical SwitchNegotiableMOQ: 1 Piece

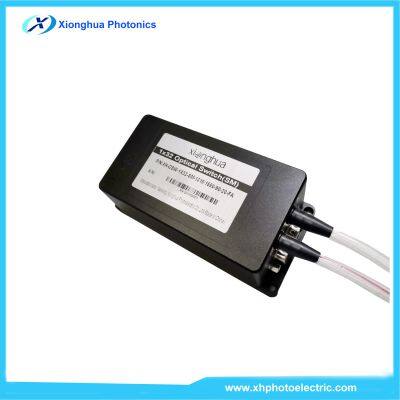

XH-OSW-1X32 optical switch is an optical path control device, which has the function of controlling the optical path and converting the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems in optical testing systems for optical fibers, optical devices, networks and field engineering. Optical cable testing ; Optical device adjustment.
Features:
Low insertion loss, wide wavelength range
Low channel crosstalk, high stability, high reliability
Unique technology, no glue in the optical path
Selectable locking and non-locking control types
Parameter
Parameter |
parameter values |
model |
XH-OSW-1X32 |
|
Insertion Loss |
16 |
Typ:0.6dB Max:0.8 dB | |
Wavelength Range |
1260~1650 nm |
Wavelength testing |
1310/1490/1550/1625 nm |
Return Loss |
SM ≥ 50 |
Crosstalk |
SM ≥ 70 |
PDL |
≤0.05dB |
WDL |
≤0.25 dB |
TDL |
≤0.25 dB |
Repeatability |
≤0.02 dB |
Lifetime |
≥107 |
Switching Time |
≤8 ms (adjacent channel) |
Transmission power |
≤500 mW |
Connector |
FC,LC,SC,ST |
Control |
TTL |
Operating Voltage |
5V |
Working current |
600mA |
Operating Temperature |
-20 ºC ~ +70 ºC |
Storage Temperature |
-40 ºC ~ +85 ºC |
