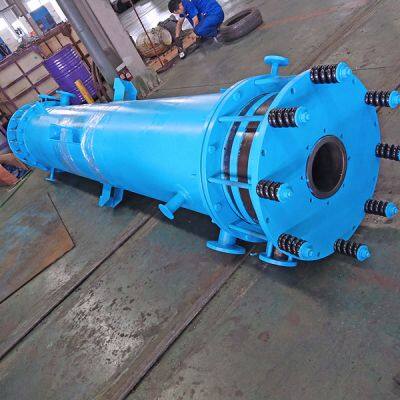

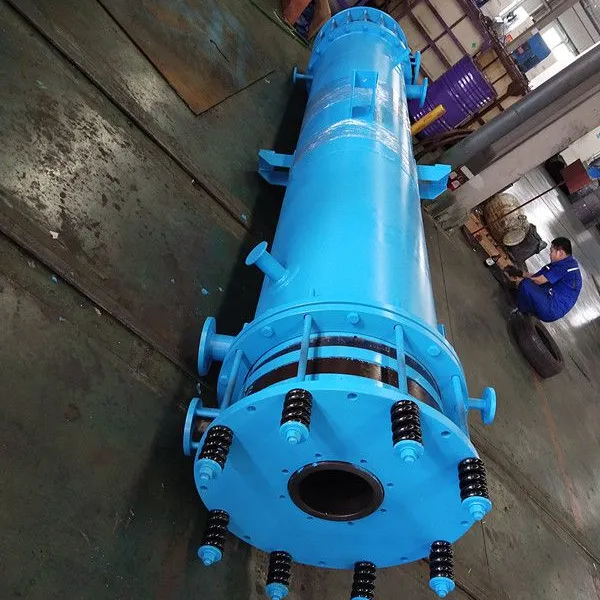

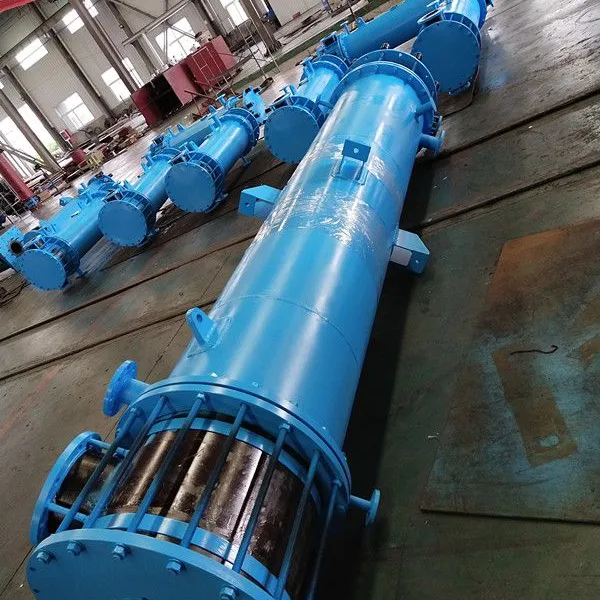

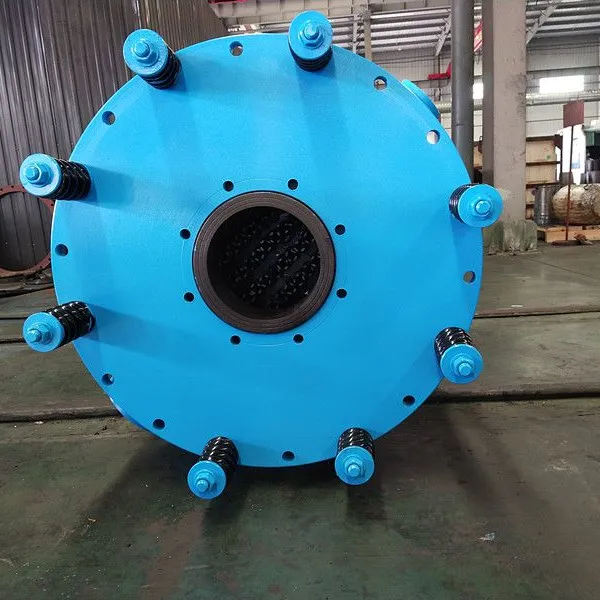

Help CenterGraphite Shell and Tube Falling Film Absorber for Water Corrosive Treatment
Related Products
-
Graphite Distillation Reactor Graphite Tower fo Rectification/absorptionUS$ 800 - 10000MOQ: 1 Set -
High Quality Graphite Distillation Reactor for Distillation/rectificationUS$ 800 - 10000MOQ: 1 Set
-
Graphite Block Heat Exchanger/sulfuric Acid Dilution Cooler for Surfuric Acid Industry/fertilizer IndustryUS$ 800 - 10000MOQ: 1 Set
-
Graphite Block Heat Exchanger/cooler /graphite Condenser for Chemical IndustryUS$ 800 - 10000MOQ: 1 Set
-
Cylindrical Block Hole Type Graphite Heat Exchanger/cooler /graphite Condenser for Chemical IndustryUS$ 800 - 10000MOQ: 1 Set
Structural features:
The cylinder of the equipment is carbon steel, the head is made of carbon steel anticorrosive or graphite, the tube plate is impregnated with graphite, the heat exchange tube is a modified phenolic resin pressed graphite tube, and the structure between the tube and the tube plate is made of mud.
Heat exchange tube models: φ32/φ22, φ37/φ25, φ50/φ36.
Design parameters:
Design pressure: 0.5MPa Design temperature: -10~165 ℃ Heat exchange area: 5~2000 ㎡
.Product Description:
*the equipment heat exchange tube and tube plate are connected for bonding seal, simple structure, compact, small fluid resistance;
*The values in the table are calculated according to the diameter of φ32/22 graphite pipe;
* the company's customers according to the requirements of the design and manufacture of more than 260 square meters of heat exchanger;
* Type I is an ordinary heat exchanger, and type II is a condenser with a gas-liquid separator.
* the equipment is mainly used as cooler, heater, condenser and heater.
