Basketball 24s Shot Clock

                                                                                                   Basketball 24s Shot Clock

           The shot clock is a special display which be setup on the basketball stand.

          Its function include: Display match timer and 24 second timer. Display timeout timer during timeout. Buzzer when

match timer or shot clock timeout.

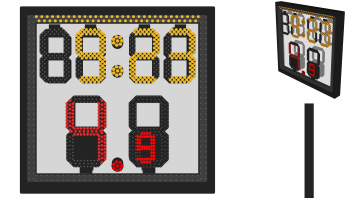

1.  Four Side Shot Clock (FIBA Rule 2023)

                    Specification:

                                                      Model:                    KS-BASH-C/Q

                                                          Size:                    780x780x610 (mm)

                                                     Weight:                   45KG*2

                                                      Power:                   240W*2

                                                   Material:                   Aluminum

                                      Communication:                   Wired + Wireless (433MHz)

                                           Match Timer:                   Decisecond display in last 1 minute

                                              Shot Clock:                   Decisecond display in last 5 second

                                                    Buzzer:                    Two different buzzer sound for match timer and shot clock

                                      Mounting Hole:                    Bottom

2.  See Through (Double Side) Shot Clock

                     Specification:

                                                     Model:                   KS-BASH-C/D

                                                         Size:                   650x630x60 (mm)

                                                   Weight:                    8KG*2

                                                    Power:                    60W*2

                                                 Material:                    Aluminum+Plastic

                                     Communication:                   Wired + Wireless (433MHz)

                                          Match Timer:                   Decisecond display in last 1 minute

                                             Shot Clock:                   Decisecond display in last 5 second

                                                    Buzzer:                   Two different buzzer sound for match timer and shot clock

                                      Mounting Hole:                   Bottom

3.  Single Side Shot Clock

                   Specification:

                                                 Model:                     KS-BASH-C/S

                                                     Size:                     710x610x60 (mm)

                                                Weight:                    10KG*2

                                                 Power:                     60W*2

                                              Material:                    Aluminum

                             Communication:                    Wired + Wireless (433MHz)

                                     Match Timer:                   Decisecond display in last 1 minute

                                         Shot Clock:                  Decisecond display in last 5 second

                                                Buzzer:                  Two different buzzer sound for match timer and shot clock

                               Mounting Hole:                   Bottom + Top (For hanging installation)

4.  Four Side Shot Clock

                   Specification:

                                               Model:                   KS-BASH-K/Q

                                                  Size:                    650x650x510 (mm)

                                            Weight:                   30KG*2

                                             Power:                   110W*2

                                         Material:                   Iron

                        Communication:                  Wired

                               Match Timer:                  Decisecond

                                  Shot Clock:                  Second

                                          Buzzer:                  Single buzzer sound

                          Mounting Hole:                  Bottom

5.  Single Side Shot Clock

                  Specification:

                                           Model:                   KS-BASH-K/S

                                               Size:                   600x520x110 (mm)

                                        Weight:                    9KG*2

                                          Power:                   52W*2

                                      Material:                   Iron

                     Communication:                  Wired

                            Match Timer:                   Decisecond

                                Shot Clock:                  Second

                                        Buzzer:                  Single buzzer sound

                        Mounting Hole:                  Bottom

6.  Single Side Shot Clock (3x3 Basketball)

                    Specification:

                                        Model:                   KS-BASH-C/X

                                           Size:                    360x300x60 (mm)

                                     Weight:                    5KG*2

                                      Power:                    20W*2

                                  Material:                    Aluminum

                 Communication:                    Wired + Wireless (433MHz)

                            Shot Clock:                    Decisecond display in last 5 second
