Help Center50L Pressure Steam Sterilizer
Related Products
Pressure steam sterilizer. It is divided into several styles, including vertical, portable, and horizontal, with a capacity ranging from 18L to 500L.
Subdivided into: 18/24/35/50/75/100/120/150/200/280/400/500L.
According to the details of the work, it can be divided into steam internal circulation and external circulation, whether it is automatically controlled temperature, and whether it is automatically timed.
This series of sterilizers is a safe, reliable, and fully automatic program controlled microcomputer sterilization equipment, equipped with a heater, disinfection cylinder, container cylinder, safety valve, pressure and temperature indicator, as well as a sterilization end alarm and an automatic cut-off heating power supply device. This container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, energy-saving, durable, and cost-effective. It is an ideal equipment for medical and scientific research units to disinfect and sterilize surgical instruments, dressings, vessels, culture media, etc.

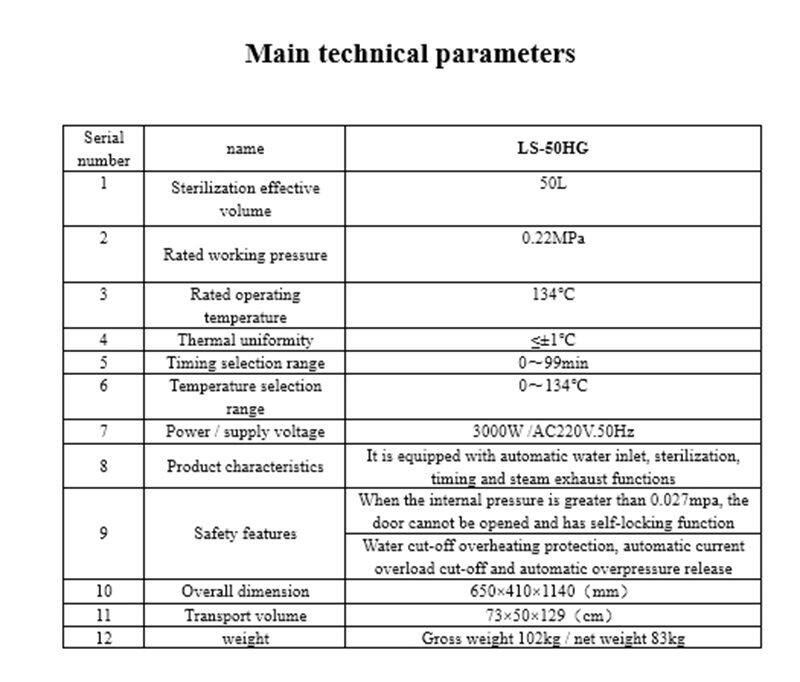

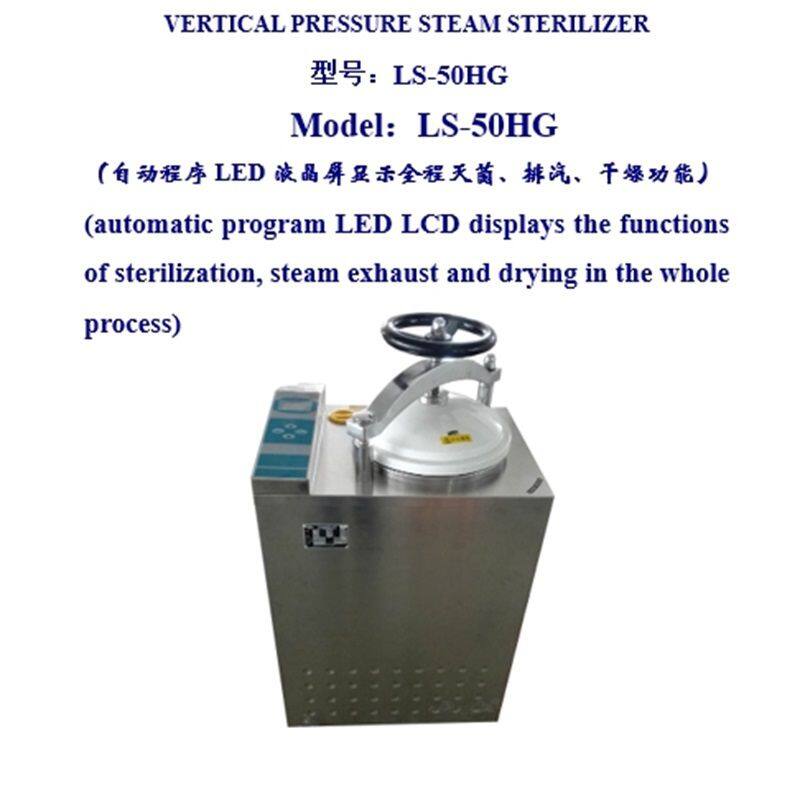

The following are the detailed parameters and pictures of the 50HG sterilizer model
Characteristic
Safe and reliable full-automatic program operation and control, and the LED digital display screen displays the sterilization process dialog box in the whole process. The sterilization process is automatically controlled without supervision and easy to use:
The steam control temperature is 103 ~ 134 ℃, so that different types of articles can be disinfected and sterilized with appropriate working temperature.
The temperature is controlled at 50 ~ 101 ℃, so that different types of articles can be boiled at the appropriate working temperature.
It is equipped with timing display. When the sterilization temperature rises to the preselected temperature value, the timer will count down automatically. After sterilization, it will automatically relieve the pressure and exhaust the steam and cut off the heating power supply. When the steam exhaust is relieved, an alarm sound will be sent to prompt the end of the program work.
It is equipped with automatic cold air discharge device in the sterilization room to ensure the sterilization effect.
The electromechan has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, energy-saving, durable, and cost-effective. It is an ideal equipment for medical and scientific research units to disinfect and sterilize surgical instruments, dressings, vessels, culture media, etc.
The following are the detailed parameters and pictures of the 50HG sterilizer model
characteristic
1. Safe and reliable full-automatic program operation and control, and the LED LCD screen displays the sterilization process dialog box in the whole process. The sterilization process is automatically controlled without supervision. It has instrument, dressing, liquid and fixed modes. It is user-defined, and the sterilization temperature, sterilization time and drying time can be set freely. The operation is convenient, fast, stable and safe!
2. The steam control temperature is 103 ~ 134 ℃, so as to disinfect and sterilize different types of articles with appropriate working temperature.
3. It is equipped with a temperature control of 50 ~ 101 ℃, so as to boil different types of articles at the appropriate working temperature.
4. A timer is set. When the sterilization temperature rises to the preselected temperature value, the timer will count down automatically. After sterilization, it will automatically relieve pressure and exhaust steam and cut off the heating power supply, exhaust steam and relieve pressure and send out an alarm sound to prompt the end of program work.
5. The cold air in the sterilization room is equipped with an automatic discharge device to ensure the sterilization effect.
6. The electromechanical heating element is an external steam generator with high thermal efficiency. The power supply voltage is AC220V. It shall be reliably grounded when in use.
7. It is equipped with overtemperature and overpressure automatic protection device:
8. It is equipped with an open safety valve. During normal sterilization, the safety valve is closed. When the pressure in the sterilizer exceeds the maximum allowable use range, the safety valve can automatically start and jump to release the overpressure steam. When the steam pressure in the sterilizer returns to the normal value, it can be closed automatically to ensure safe use.
9. The door cannot be opened when the internal pressure of the door is greater than 0.027mpa, with self-locking function;
10. The generator is equipped with overheating protector. It can automatically cut off the power supply when there is no water or water shortage during use. In case of water cut-off and other faults, the pressure relief valve will open automatically and discharge the steam.
11. It is equipped with overload leakage protector, which can automatically cut off the power supply in case of leakage or overvoltage in the line.
12. The whole machine is made of high-quality stainless steel, which has the advantages of corrosion resistance, easy maintenance and long service life.
Ls-50HG series sterilizer is a safe, reliable and fully automatic program controlled microcomputer sterilization equipment, which is equipped with heater, disinfection cylinder, container cylinder, safety valve, pressure and temperature indicator, sterilization end alarm and automatic cut-off of heating power supply. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving, durability, low price and excellent material. It is an ideal equipment for medical and health institutions and scientific research institutions to disinfect and sterilize surgical instruments, dressings, utensils and culture media.
