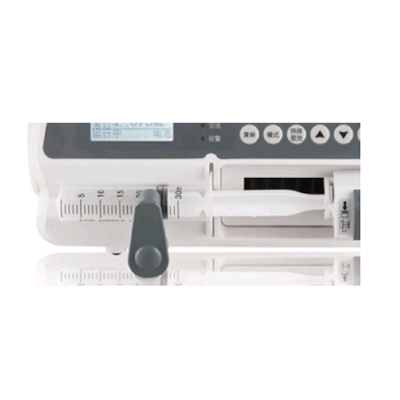

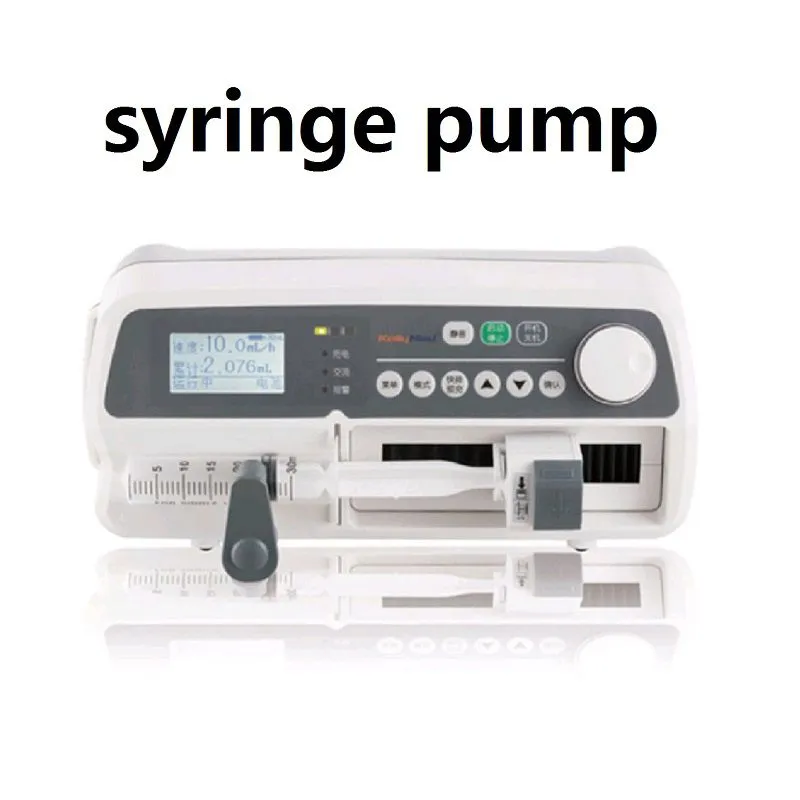

Syringe Pump

Syringe Size:10203050/60ml

Applicable Syringe:Compatible with syringe of any standard

VTBI:0.1-9999 mi;<1000mlin0.1ml increments;≥1000 ml in 1 ml increments

Flow Rate:Syringe 10 ml: 0.1-400 ml/h;Syringe 20 mi:0.1-600 ml/h;Syringe 30 ml: 0.1-900 ml/h;Syringe 50/60 ml:0.1-1300 ml/h;<100 ml/h in 0.1 ml/h increments;≥100 ml/h in 1 ml/h increments

Bolus Rate:400ml/h-1300ml/hadjustable

Anti-Bolus:400ml/h-1300ml/hadjustable

Accuracy:±2%(mechanical accuracy ≤1%)

Infusion Mode:Flow rate: ml/min, ml/h;Time-based;Body weight:mg/kg/minmg/kg/h,ug/kg/min,ug/kg/h etc.

KVO Rate:0.1-1ml/h(in 0.1 m/h increments)

Alarms:Occlusion, near empty, end program, low battery, end battery AC power off, motor malfunction, system malfunction, standby. pressure sensor error, syringe installation error, syringe drop off

Additional Features:Real-time infused volume,automatic power switching,automatic syringe identification, mute key,purge, bolus, anti-bolus,system memory, key locker

Drug Library:Available

Occlusion Sensitivity:High, medium, low

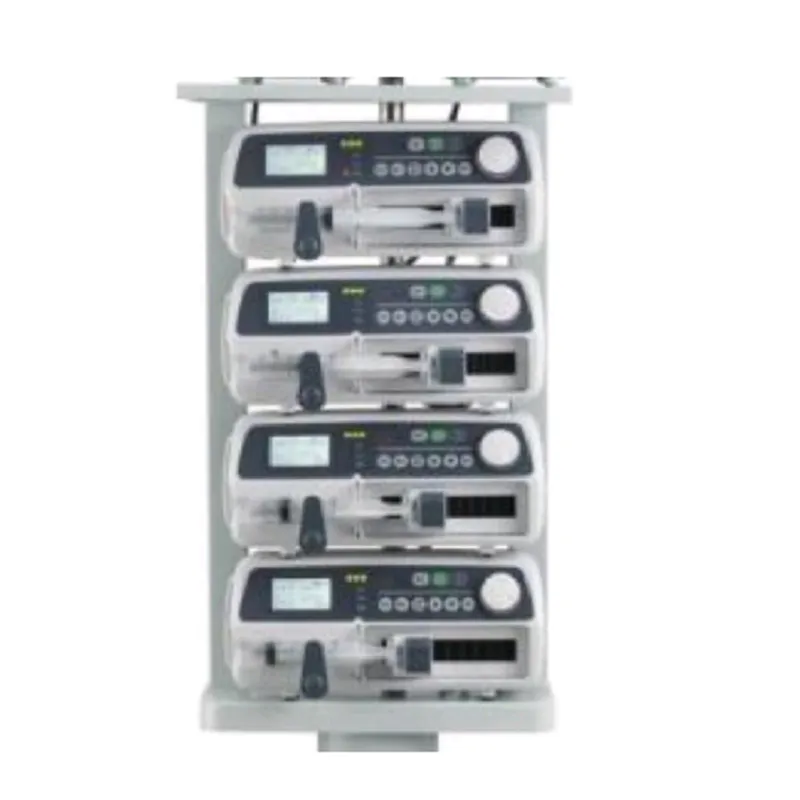

Docking Station:Stackable up to 4-in-1 or 6-in-1 Docking Station with single power cord

Wireless Management:Optional

Power Supply, AC:110/230V(optional)50/60 Hz.20VA

Battery:9.6+1.6 V,rechargeable

Battery Life:7 hours at 5 ml/h

Working Temperature:5-40℃

Relative Humidity:20-90%

Atmospheric Pressure:860-1060hpa

Size:314*167*140mm

Weight:2.5 kg

Safety Classification:Class II, type CF
