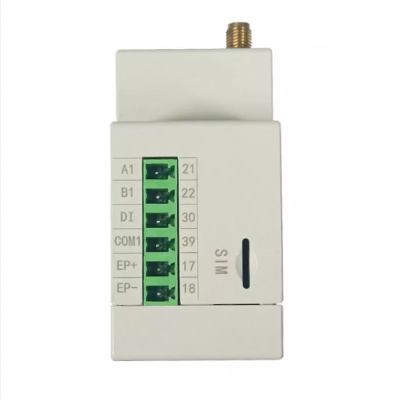

Acrel 4G Communication Din Rail With LCD Display Single Phase IOT Energy Meter for Remote Monitoring ADW310-HJ-D10/4GHW

Acrel 4G Communication Din Rail With LCD Display Single Phase IOT Energy Meter for Remote Monitoring ADW310-HJ-D10/4GHW photo-1
Acrel 4G Communication Din Rail With LCD Display Single Phase IOT Energy Meter for Remote Monitoring ADW310-HJ-D10/4GHW photo-2
Acrel 4G Communication Din Rail With LCD Display Single Phase IOT Energy Meter for Remote Monitoring ADW310-HJ-D10/4GHW photo-3
Acrel 4G Communication Din Rail With LCD Display Single Phase IOT Energy Meter for Remote Monitoring ADW310-HJ-D10/4GHW photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

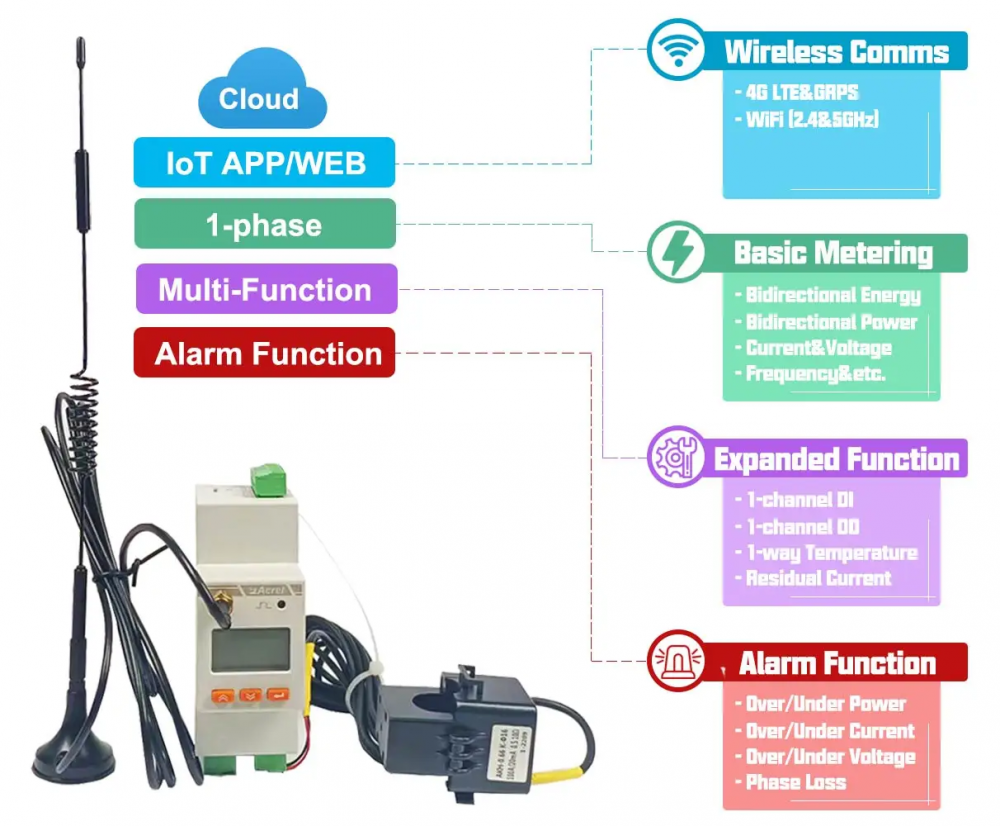

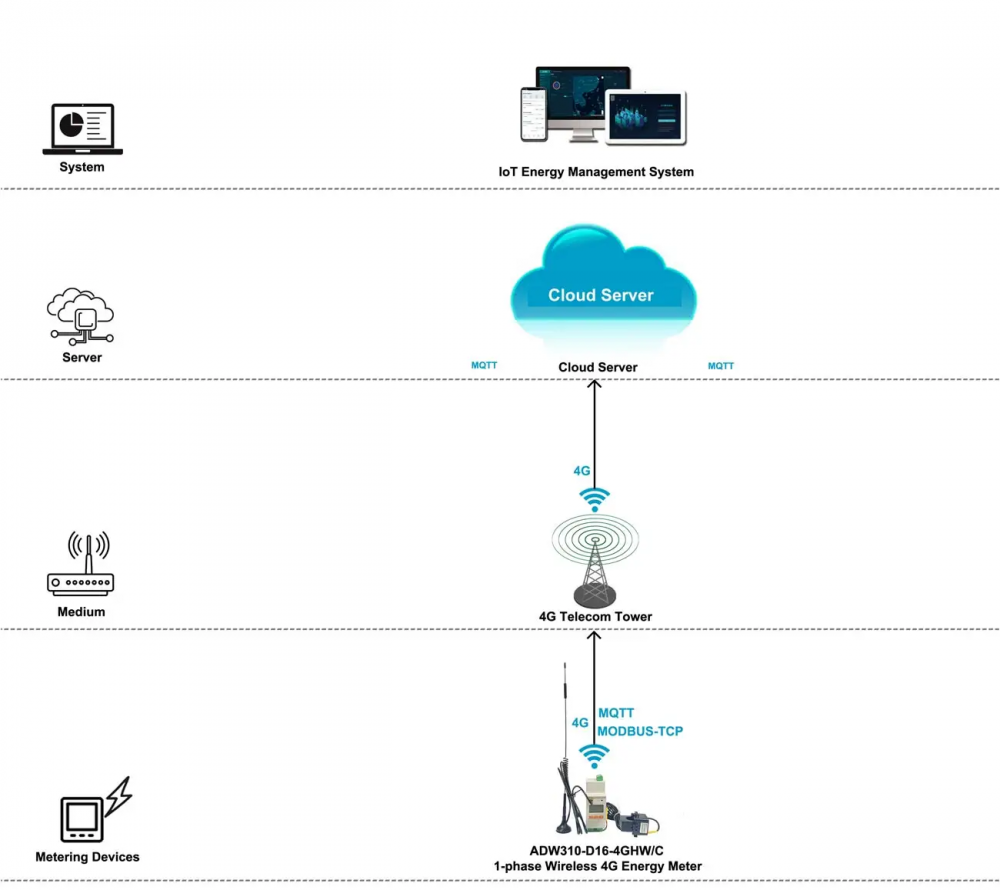

ADW310 wireless energy meter is mainly used to measure the active energy of low-voltage network. It has the advantages of small size, high precision, rich functions, etc., and has many optional communication methods. It can support RS485 communication, Lora, 4G and other wireless communication methods. The current sampling mode of the transformer is convenient for users to install and use in different occasions. It can be flexibly installed in the distribution box to meet the needs of power metering, operation and maintenance supervision or power monitoring for different areas .

Voltage Input
Rated Voltage
220V
Reference Frequency
50Hz
Power Consumption
Each phase<0.5VA
Current Input
Input Current
AC 20(100)A
Starting Current
1‰Ib(0.5S class),4‰Ib(1 class)
Power Consumption
Each phase<1VA
Auxiliary Power
Voltage Supply
AC 85~265V
Power Consumption
<2W
Measuring Performance
Standards
GB/T17215.322-2008,GB/T17215.321-2008
Compliant
Active Energy Accuracy
Class 1
Temperature Accuracy
±2℃
Pulse
Pulse Width
80±20ms
Pulse Constant
1600imp/kWh

Product Tags: single phase wireless energy meter , electrical energy meter , digital power meter
