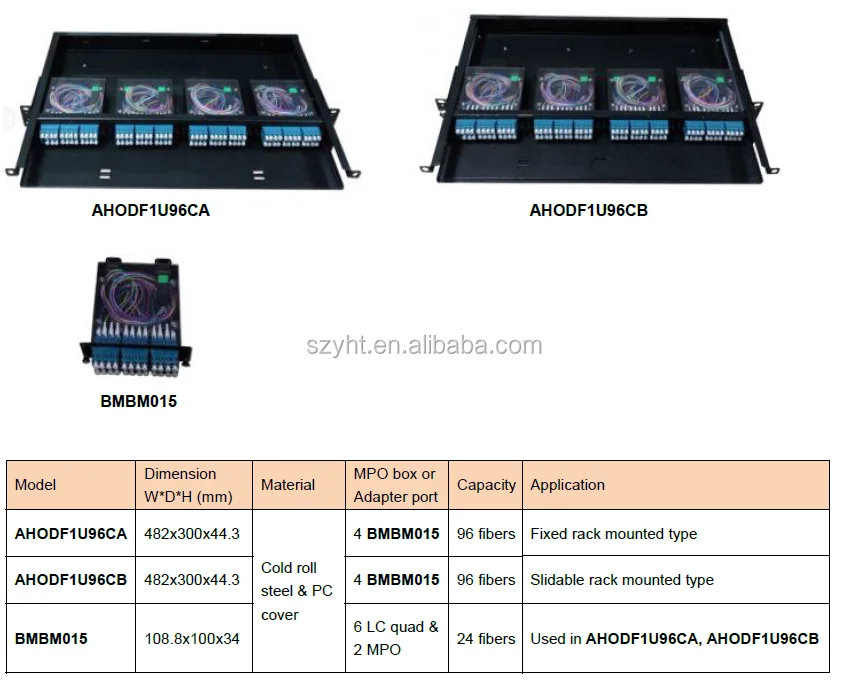

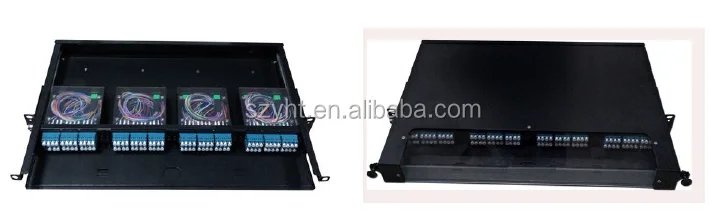

96 Cores 10G Aqua FibersMPO Patch Panel LC-MPO Fiber Rack Mount Enclosure Pre-configured With 4 Cassettes

MPO Fiber Optic Distribution Frame

HODF-1U-96C-B

Description:

This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.

Features:

Made by cold roll steel, electrostatic powder spraying.

Drawer type, with PC material front transparent cover, convenient for observation and maintenance.

Its cover is easy to open and close by using button.

It has a locking device prevent the drawer from falling when moved.

Back side with 2 oval port 22*60mm for cable entry.

Load max. 4pcs MTP/MPO cassette (Model: MB-M015).

Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.

The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance.

Application:

Data center, Network room

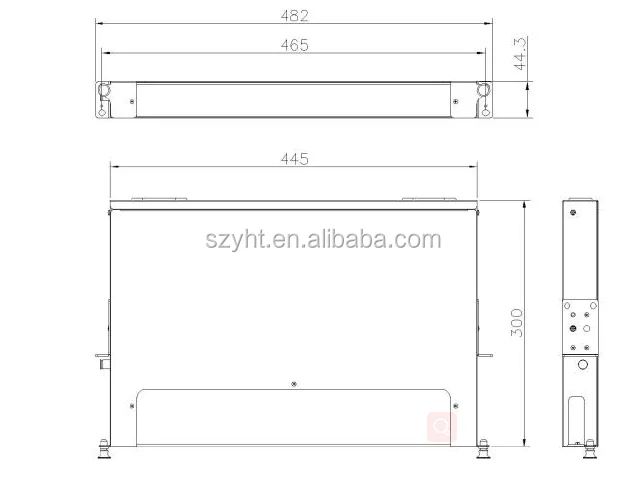

Dimension drawings:

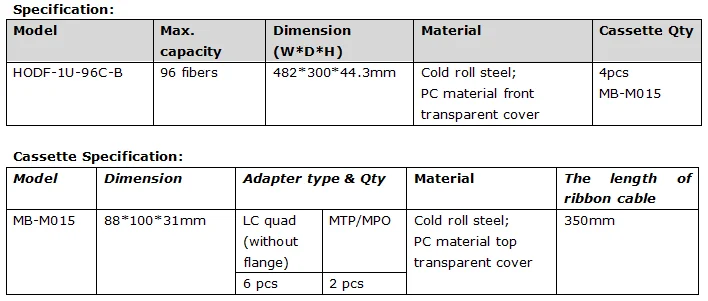

                                                              Model: HODF-1U-96C-B

                                                                    482*300*44.3mm

                                                                                                                             Model: MB-M015
                                                                        88*100*31mm

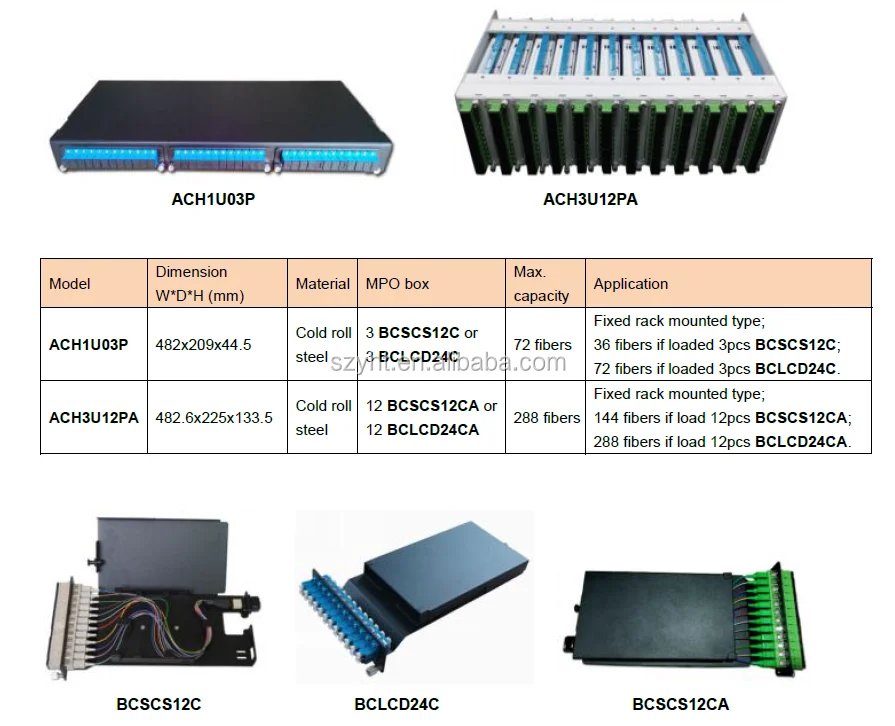

Our products covers: Fiber Optic Splice Closure / Optical Terminal Box / ODF / Fiber Optic patch cord & pigtail / PLC splitter/Attenuator

YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

For more customization details, message or email supplier!

Company Information

Shenzhen YHT Broadband Equipment Co., Ltd

Provide fiber optic products such as fiber optic terminal box, fiber optic patch panel, fiber optic distribution box, ODF, FTTH box, fiber optic splice closure, fiber optic splitter box, cassette, cabinet, fiber optic connector, adapter, jumper, pigtail, PLC splitter and so on.

There are hardware, diemaking, injection moulding, painting, assembling, fiber optic cable production, connector and cable assembling workshops for producing fiber optic splicing, connection, distribution and termination products.
