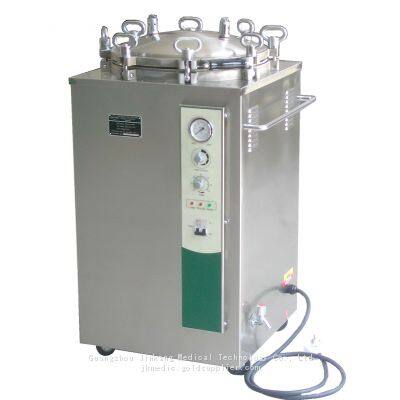

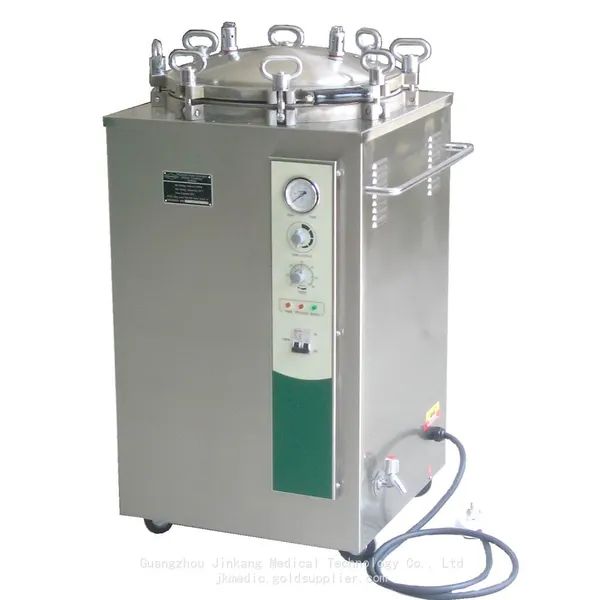

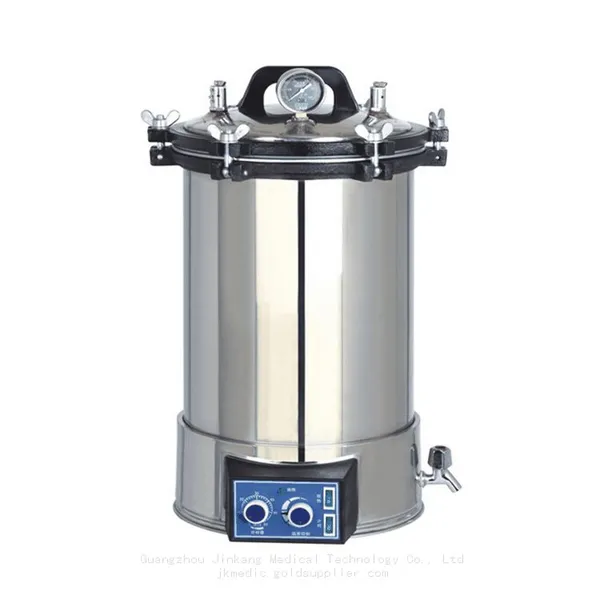

Help Center18L High Pressure Steam Autoclave, 24L High Pressure Steam Sterilization
Related Products
-
12 Channels ECG Machine, 3 Channel Electrocardiograph, 6 Channel ECGNegotiableMOQ: 1 Piece -
Health Medical Digital Thermometer, IR ThermometerNegotiableMOQ: 10 Pieces
-
18L High Pressure Steam Vaccum Pulse Autoclave, 24L High Pressure Steam Vaccum Pulse SterilizerNegotiableMOQ: 1 Piece
-
Different Size of Hospital Clothes, Oral and Dental Clothes，scrubsuitNegotiableMOQ: 10 Pieces
-
Medical Beds for Hospital One Crank / Two CranksNegotiableMOQ: 1 Piece
• Fullystainless steel structure.
MODEL |
YX-18LM |
YX-24LM |
| Technical Data | ||
Sterilizing volume |
18L φ280×260mm |
24L φ280×390mm |
Working pressure |
0.14-0.16Mpa |
|
Working temperature |
126℃ |
|
Max.Safety pressure |
0.165Mpa |
|
Power |
AC220V.50HZ/2KW |
|
Transport dimension（mm） |
410×410×430 |
410×410×550 |
G.W/N.W |
16/14Kg |
17/15Kg |
Characteristics:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Pressure safety lock
4.Indicator light indicates working state
5.Over temperature & over pressure auto-protection
6.Double scale indication pressure gauge
7.Self inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate，safe and reliable
11.With two stainless steel sterilizing baskets
Technical Data:
|
Model technical data |
LS-35HJ |
LS-50HJ |
LS-75HJ |
LS-100HJ |
Chamber volume |
35L(φ318×450)mm |
50L(φ340×550)mm |
75L(φ400×600)mm |
100L(φ440×650)mm |
working pressure |
0.22MPa |
0.22MPa |
||
Working temperature |
134℃ |
134℃ |
||
Max working pressure |
0.23 Mpa |
0.23MPa |
||
Heat average |
≤±1℃ |
|||
Timer |
0～60min |
|||
Adjustment of temperature |
105～134℃ |
105～134℃ |
||
Power |
2.5Kw/AC220V.50Hz |
3Kw /AC220V.50Hz |
4.5KW /AC220V.50Hz |
|
Overall dimension |
450×450×1010(mm) |
510×470×1130(mm) |
560×560×1120(mm) |
540×560×1250(mm) |
Transport dimension |
570×550×1150(mm) |
590×590×1280(mm) |
650×630×1280(mm) |
680×630×1370(mm) |
G.W/N.W |
72Kg/ 56Kg |
88Kg/ 68Kg |
100Kg/80Kg |
110 Kg/85Kg |
