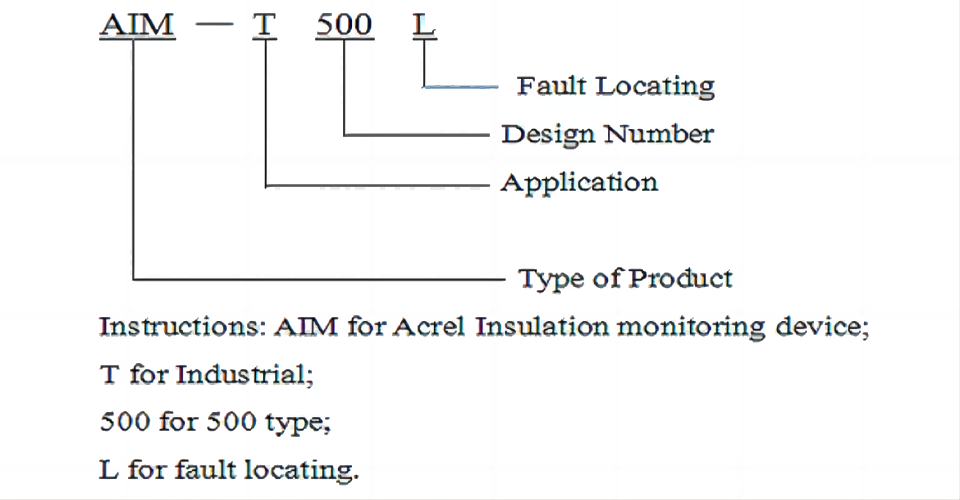

Acrel AIM-T500L Insulation Monitor Fault Locating Function, 1 Channel CAN Communication, 2 Channels of Relay Output
You May Like
-
Acrel Smart Protector ALP300-250/C Strong Anti-interference Ability, Stable and Reliable Work, DigitaL Digital Tube Display
-
Acrel ALP300-100/C Digital Tube Display ProtectorStrong Anti-interference Ability, Stable and Reliable Work, Digital,Intelligent
-
Acrel ALP300-50/C Intelligent Protector Start-up Timeout, Overload, Underload, and Equalization Protection Digital Tube Display
-
Acrel Digital Tube Display Smart Protector ALP300-25/C Strong Anti-interference Ability, Stable and Reliable Work, DigitaL
-
Acrel ALP300-5 Protector Digital Tube Display Strong Anti-interference Ability, Stable and Reliable Work, Digital
-
Acrel ACR220ELH Three Phase Embedded Network Power Meter LCD Display Intelligent and Digital, it is Widely Used in Various Control Systems.
Product Description

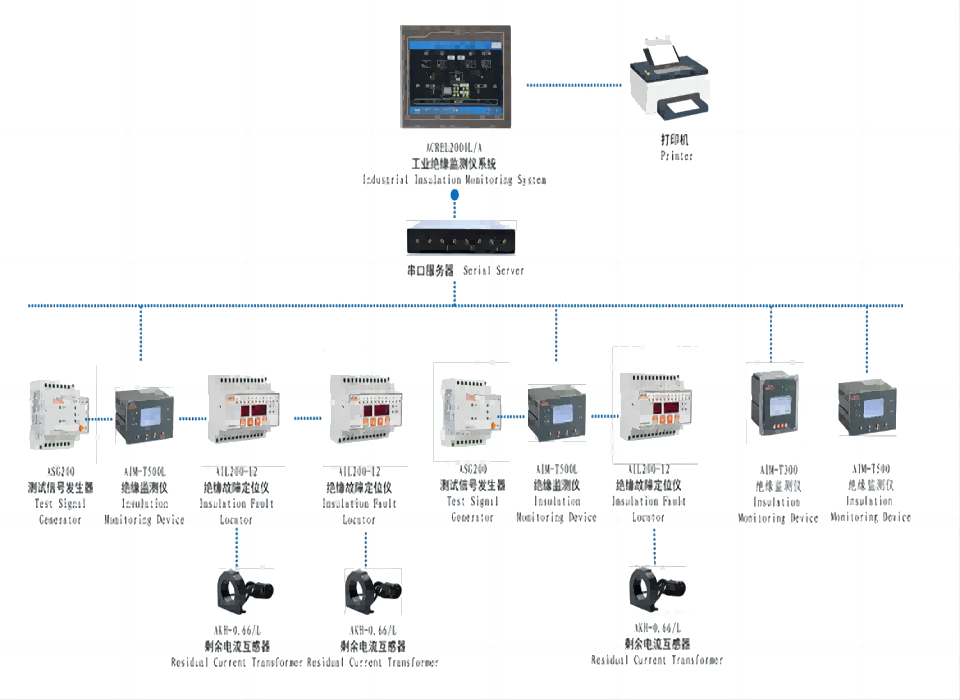

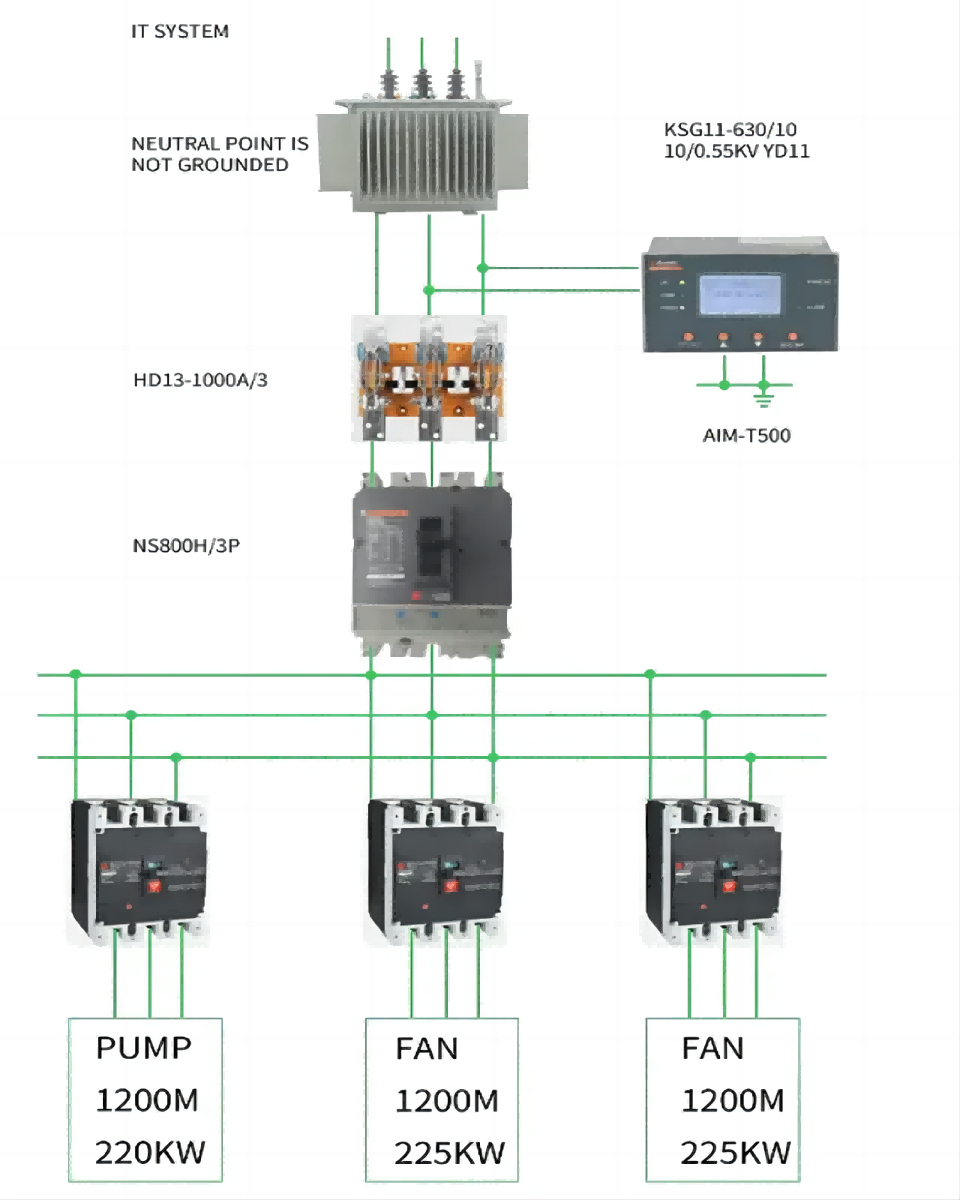

AIM-T500L series industrial insulation monitoring and fault is specially developed by Acrel for IT distribution system in industrial occasions such as mine, glass factory, electric furnace and test equipment, ship, metallurgical plant, chemical plant, explosion hazard site, computer center and emergency power supply. The system has rich functions, including insulation resistance monitoring, insulation fault warning, insulation fault alarm, event recording, parameter setting, communication networking, etc. When the system has grounding fault, it can give a timely alarm and accurately locate the specific circuit of the fault to remind staff to check the fault in time. The products conform to the requirements of enterprise standard Q/VDCL-26-2017 IT System Insulation Monitor.
Item | Parameter | |
Accessory power supply | AC 85~265V; DC100~300V; 50/60Hz | |
Power dissipation | <8W | |
System voltage | AC 0~690V; DC 0~800V; 40~460Hz | |
System application | IT system (online), Other system (offline) | |
Insulation monitoring | Measuring range | 1k~10MΩ |
Alarm range | 10k~10MΩ | |
Resistance accuracy | 1~10k,1k; 10k~10M, ±10% | |
system leakage capacitance | <500μF | |
Response time (Ce=1μF) | <5s | |
Internal parameters | Measuring voltage | <50V |
Measuring current | <270μA | |
Internal DC impedance | ≥180kΩ | |
Relay output | Error, Alarm, Warning | |
SOE | 20 records (fault type, fault value, fault time) | |
Alarm type | LCD, LED indicator | |
Communication | RS485, Modbus-RTU; CAN, custom | |
Impulse voltage / Pollution Level | 8kV/Ⅲ | |
EMC/ Radiation | IEC61326-2-4 | |
Environment | Working temperature | -10 ~+65℃ |
Storage temperature | -20~+70℃ | |
Relative humidity | <95%, without condensation | |
Altitude | ≤2500m | |
