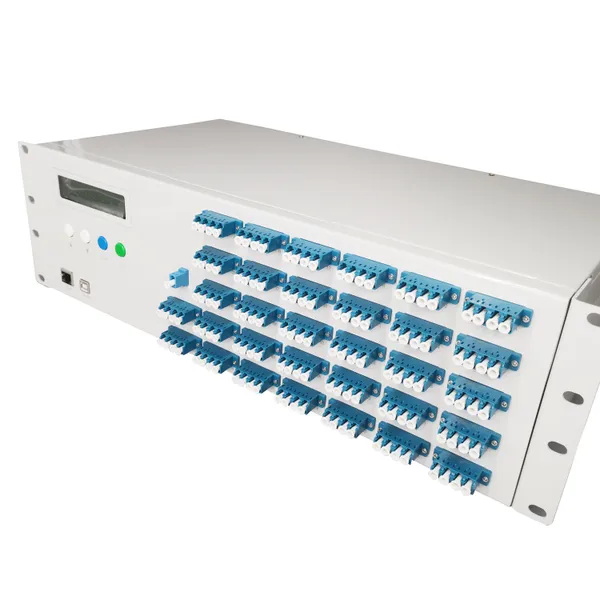

XH-FSW-24X24 matrix rack optical switchesis a product that uses optical switches to realize optical path conversion. The device provides serial port RS-232 and Ethernet RJ45 interface, through the TCP/IP protocol connection to send commands to control optical path switching, and finally realize 24 (input) × 24 (output) full-switching non-blocking two-way fiber-optic routing Cross-connect plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems; optical testing systems are used for optical fibers, optical devices, networks and field engineering optical cables Testing; Optical device assembly and adjustment
Features
(1) Ethernet port, serial port communication interface command control.
(2) full switching non-blocking two-way cross connection.
(3) Equipped with LC Seiko flange, the insertion loss is small.
(4) Small insertion loss, fast switching speed, high signal stability, no crosstalk on adjacent channels
parameter
| Parameter | Parameter Values |
| Model | XH-FSW-24X24-Q |
| Wavelength Range | 1260~1650nm |
| Insertion Loss | ≤ 1.2 dB |
| Repeatability | ≤ 0.02 dB |
| Return Loss | ≥ 50 dB |
| Crosstalk | ≥ 70 dB |
| WDL | ≤ 0.25 dB |
| PDL | ≤ 0.05 dB |
| Fiber Type | SM（9/125um） |
| Lifetime | 107 |
| Switching Time | ≤15ms(Adjacent channel) |
| connector | FC\PC |
| control | RJ45、RS-232 |
| Operating power | AC：100~240V |
| Operating Temperature | -10 ~ +60℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Dimension | 19”4U：483 X 600 X 178 |
