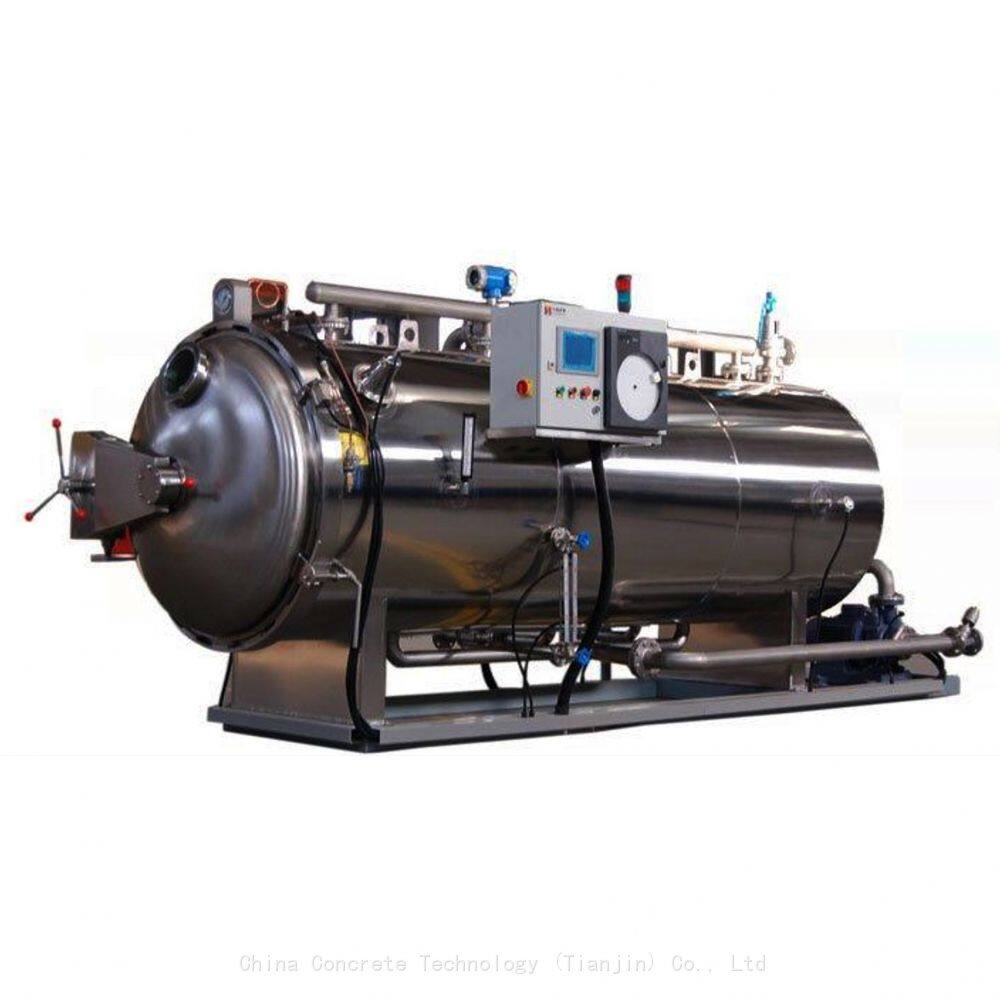

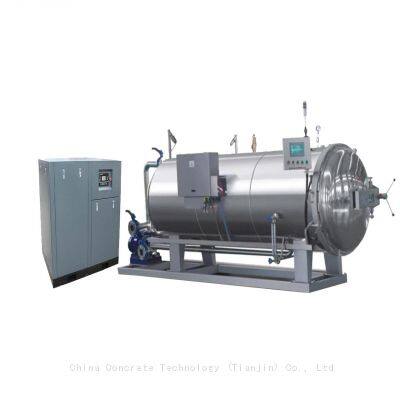

High Temperature and High Pressure Carbonization Reactor HGF Type Made in China

Product Usage

Research on the mix ratio test of high-strength prestressed concrete piles (PHC), exterior wall materials, slag aggregates, lightweight bubble concrete panels (ALC) and other mixed materials, using a high-temperature and high-pressure testing machine to simulate the factory maintenance environment in the laboratory.

This product can also be programmed to perform carbonization tests by adjusting temperature, humidity, pressure, and CO ₂ concentration, providing a comprehensive carbonization environment for scientific research institutions.

Execution standards

"Concrete slag aggregates" JISA 5011-2016.

technical parameter

1、Pressure range: 0-0.5MPa (high-pressure version), 0-1.5MPa (ultra-high pressure version);

2、Pressure accuracy: 0.01Mpa;

3、CO2 concentration: 0-30%, ≥ 95% (concentration can be customized);

4、CO2 accuracy: 0.1% (0-30%), 0.5% (≥ 95%);

5、Temperature: 20-150 ℃, accuracy: 0.1 ℃;

6、Humidity: 40-100% RH, accuracy: 2% RH;

7、Pressure boosting methods: steam and air compressor;

8、CO2 inflation methods: negative pressure suction and high-pressure pumping;

9、※ No system industrial touch screen, Chinese (English) menu prompts with various functions such as curve display and historical data query;

10、※ There are two testing methods available: fixed value and program. The program has multiple functions such as editing, clearing, and inserting, making it convenient for conducting scientific research comparative experiments;

11、※ Temperature, humidity, pressure, and CO2 concentration can be set independently, and multi factor programmable alternating tests can be conducted;

12、Continuous proportional control of pressure automatic exhaust valve during pressure relief, linear control of pressure drop line diagram (to be explained in advance before ordering);

13、※ It has the function of power-off program memory, automatically starting and continuing program execution after power restoration;

14、The specimen barrel is made of stainless steel with a thickness of 8mm, high strength and corrosion resistance. The barrel door adopts double safety interlocking, which is safe, fast, and easy to operate;

15、The equipment has multiple protections such as high pressure, high temperature, water shortage, overload, etc;

16、Total power of the equipment: 18KW;

17、Power supply: AC380V, 50Hz ± 1Hz;

18、Net size: 500 * 600mm, 800 * 800mm, 600 * 900mm, three options available.
