Production Switcher
Professional Portable Switch System
A compact, lightweight mobile studio special for small &medium sized events and venues, having the functions of video switcher,
intercom tally, subtitle, and preview.
Accepts SDI, HDMI video input
Integrated 17" LCD monitor
Real time subtitle in SDI or HDMI mode for sporting games
Intercom talley system
KV-PS2800

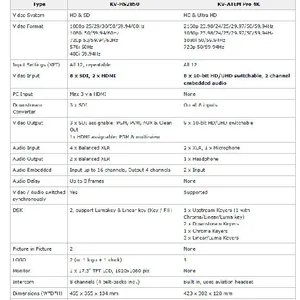

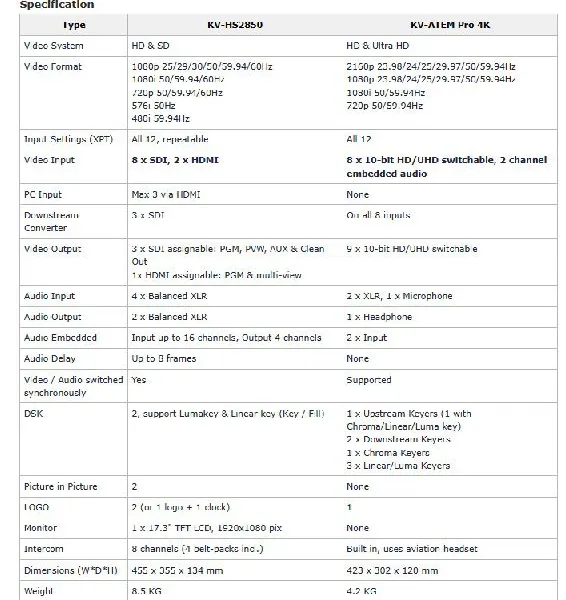

Specification
Type KV-HS2850 KV-ATEM Pro 4K
Video System HD & SD HD & Ultra HD
Video Format 1080p 25/29/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz 2160p 23.98/24/25/29.97/50/59.94Hz
1080p 23.98/24/25/29.97/50/59.94Hz
1080i 50/59.94Hz
720p 50/59.94Hz
Input Settings (XPT) All 12, repeatable All 12
Video Input 8 x SDI, 2 x HDMI 8 x 10-bit HD/UHD switchable, 2 channel embedded audio
PC Input Max 3 via HDMI None
Downstream Converter 3 x SDI On all 8 inputs
Video Output 3 x SDI assignable: PGM, PVW, AUX & Clean Out
1x HDMI assignable: PGM & multi-view 9 x 10-bit HD/UHD switchable
Audio Input 4 x Balanced XLR 2 x XLR, 1 x Microphone
Audio Output 2 x Balanced XLR 1 x Headphone
Audio Embedded Input up to 16 channels, Output 4 channels 2 x Input
Audio Delay Up to 8 frames None
Video / Audio switched synchronously Yes Supported
DSK 2, support Lumakey & Linear key (Key / Fill) 1 x Upstream Keyers (1 with Chroma/Linear/Luma key)
2 x Downstream Keyers
1 x Chroma Keyers
3 x Linear/Luma Keyers
Picture in Picture 2 None
LOGO 2 (or 1 logo + 1 clock) 1
Monitor 1 x 17.3" TFT LCD, 1920x1080 pix None
Intercom 8 channels (4 belt-packs incl.) Built in, uses aviation headset
Dimensions (W*D*H) 455 x 355 x 134 mm 423 x 302 x 120 mm
Weight 8.5 KG 4.2 KG

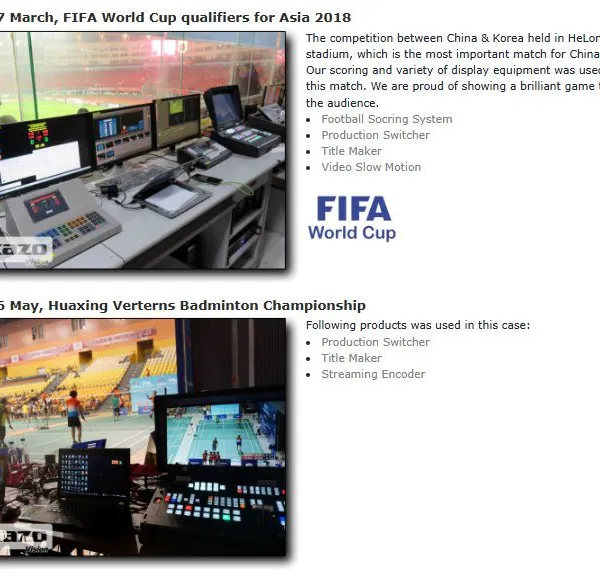

2017 March, FIFA World Cup qualifiers for Asia 2018
FIFA World Cup qualifiers for Asia 2018The competition between China & Korea held in HeLong stadium, which is the most
important match for China team. Our scoring and variety of display equipment was used on this match. We are proud of showing a brilliant game to all the audience.
Football Socring System
Production Switcher
Title Maker
Video Slow Motion
FIFA
2016 May, Huaxing Verterns Badminton Championship
Huaxing Verterns Badminton ChampionshipFollowing products was used in this case:
Production Switcher
Title Maker
Streaming Encoder
success cases：
2023 September, 2023 Equestrian Open and Tianjin Equestrian Club Joint Invitational Tournament
2023 Equestrian Open and Tianjin Equestrian Club Joint Invitational TournamentOur Equestrian Scoring System and Title Maker is successfully used in the match.
2023 July, 2023 Jiangsu Youth Equestrian Championships
2023 Jiangsu Youth Equestrian ChampionshipsOur Equestrian Scoring System and Title Maker is successfully used in the match.
2023 June, DESAFIO CHINA BY LA VUELTA BEIJING CHANGPING
DESAFIO CHINA BY LA VUELTA BEIJING CHANGPINGOur Title Maker is successfully used in the match.
2023 March, the 29th National Climbing Championships
the 29th National Climbing ChampionshipsOur Title Maker is successfully used in the match.
2023 February, X GAMES CHINA 2022
X GAMES CHINA 2022Our Title Maker is successfully used in the match.
2023 February, 2023 Chinese Table Tennis Team Durban World Table Tennis Championships Trials
2023 Chinese Table Tennis Team Durban World Table Tennis Championships Trials
Our Title Maker is successfully used in the match.
2022 November, the 17th Shanghai Games Wushu Sanda Competition
the 17th Shanghai Games Wushu Sanda CompetitionIn the 17th Shanghai Games, used our Wushu Sanda Scoring
System, Video Arbitration System, Title Maker System and Live Video System.
17th Shanghai Games
2022 August, the 18th Beijing Children's Wushu Competition - Taekwondo
the 18th Beijing Children's Wushu Competition - TaekwondoOur Taekwondo Scoring System and Title Maker
System is successfully used in the match.
2021 June, UA LET'S3 Basketball 3X3 Finals
Our Basketball Scoring System and Title Maker System has been used in this game.
2021 May, National Men's Ice Hockey Championships 2021
National Men's Ice Hockey Championships 2021The match uses our Title Maker system to overlay the game
info and score onto the live stream.
2020 December, 2020 National Rugby League
uses our Rugby Scoring System and Title Maker System.
2020 August, Wushu Taolu Championship in Shanghai
Wushu Taolu Championship in ShanghaiThe match uses our Wushu Taolu Scoring System, Video Arbitration
System and Title Maker System.
2019 July, Shanghai 3x3 Basketball Youth Tournament
The match uses our Basketball Scoring System and Title Maker System.
2019 May, MICHELIN PILOT SPORT Goldenport Grand Prix
2018 September, KFC 15th Basketball 3ON3
The match uses our Basketball Scoring System and Title Maker system to overlay the game time and score
onto the live stream.
2018 August, JUMP10 World Hoops Challenge
2018 April, China High School Men's Basketball League
The match uses our Title Maker system to overlay the game time and score onto the live stream.
2017 August, JUMP10 World Hoops Challenge
2017 May, 2017 Jr.NBA Shanghai
2017 Jr.NBA Shanghai
2017 April, 2017 Sina 3x3 Basketball Golden League
Our Basketball Scoring System and Title Maker has been used in this game.
2017 Sina 3x3 Basketball Golden League 2017 Sina 3x3 Basketball Golden League
2017 March, FIFA World Cup qualifiers for Asia 2018
The competition between China & Korea held in HeLong stadium, which is the most important match for
China team. Our scoring and variety of display equipment was used on this match. We are proud of showing a
brilliant game to all the audience.
Football Socring System
Production Switcher
Title Maker
Video Slow Motion
FIFA
2016 September, School
SchoolThe Title Maker system was used to overlap the score onto the live video. Once the score
changed by the judge, it will be display on this screen immediately.
2016 May, Huaxing Verterns Badminton Championship
Huaxing Verterns Badminton ChampionshipFollowing products was used in this case:
Production Switcher
Title Maker
Streaming Encoder
2012 September, 2012 Nine Ball China Open Tournament
used our billiard scoring system. Which used the event management system to manage the information
of every player. The real-time scores would be published on the live web site automatically.
The Title Maker system also be used on this match. The name and score information of the contestants be
overlapped on live video in real time and convert into streaming media for broadcasting on the network.
2012 August, Nike Festival of Sports
Nike Festival of SportsNike Festival of Sports held by Nike is an annual event loved by a large number of
enthusiasts.
In the basketball tournament of current Nike Festival of Sports, our basketball scoring system was used to
scoring and timing.
It also used our new product Title Maker. It overlaps the real-time score and match time signal onto the
live video, and displayed on LED Screen.
Nike Festival of Sports Nike Festival of Sports
