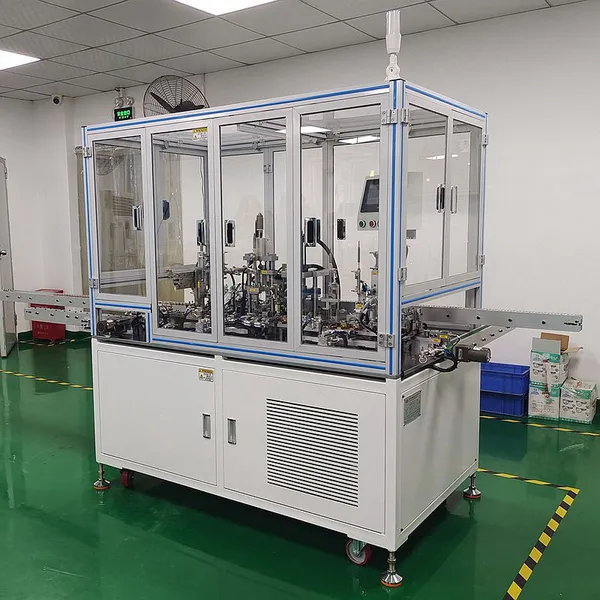

Korea F21 Motor Magnetization Equipment Automotive Special Motor Magnetic Tile Assembly Solution
US$ 28000 - 33000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Keyuxin
Place of Origin:
China
Model Number:
012
Payment & Shipping
Payment Methods:
Port of Shipment:
port of Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Magnetization Equipment, Electromechanical Assembly LineUS$ 31000 - 35000MOQ: 1 Unit -
Automatic Screw Ring Drawing Machine Screw Assembly MachineUS$ 32000 - 336000MOQ: 1 Unit
-
Insulation Sheet Assembly Equipment for Electronic and Electrical ProductionUS$ 31800 - 33900MOQ: 1 Unit
-
Electronic Products Manufacturing Motor Three Combination Assembly EquipmentUS$ 31000 - 35000MOQ: 1 Unit
-
480 Back Cover Assembly Machine Electronic Products Manufacturing EquipmentUS$ 33000 - 36000MOQ: 1 Unit
Brand Name
Keyuxin
Place of Origin
China
Model Number
012
| Shenzhen Keyuxin Automatic Machine Co., Ltd | |
| TEL：18665307510 | |
| email: 570397983@qq.com | |

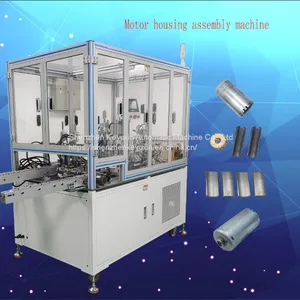

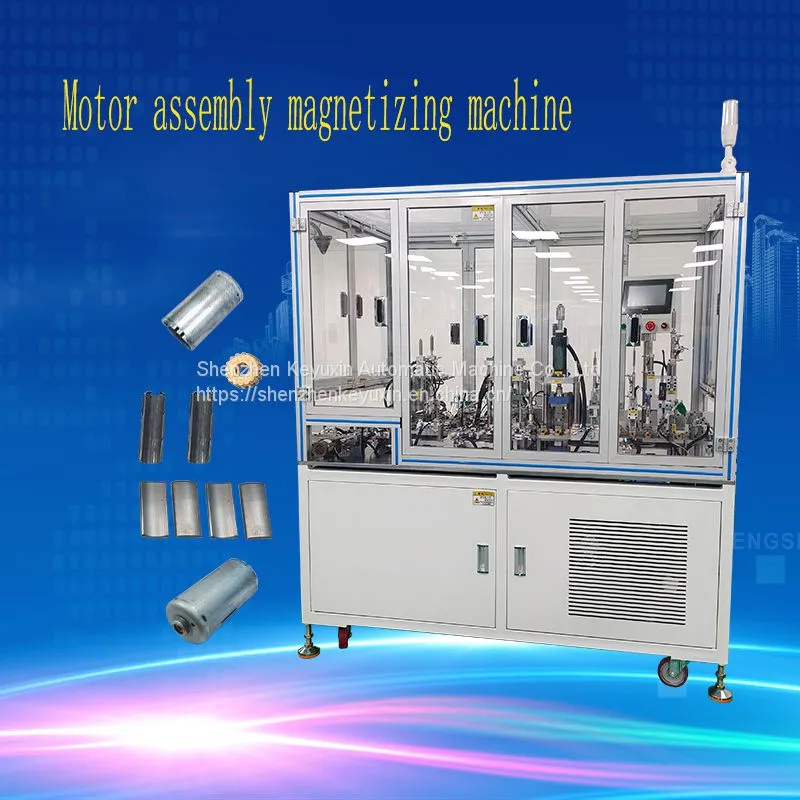

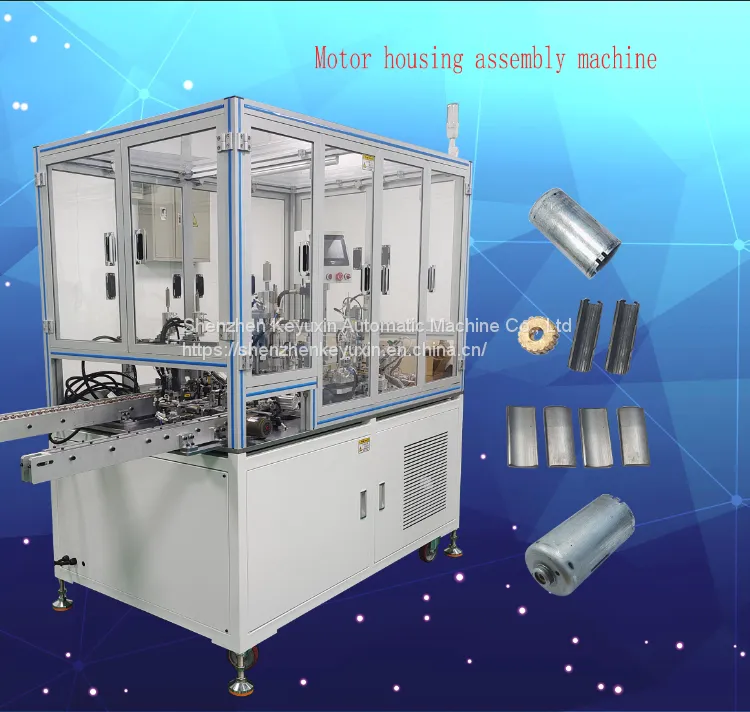

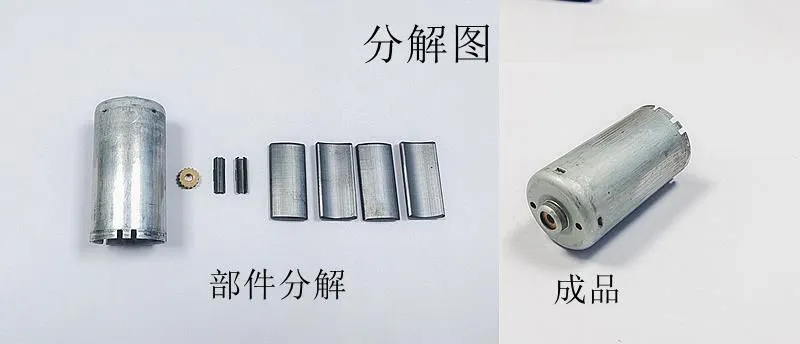

| Motor housing assembly magnetizing machine | |

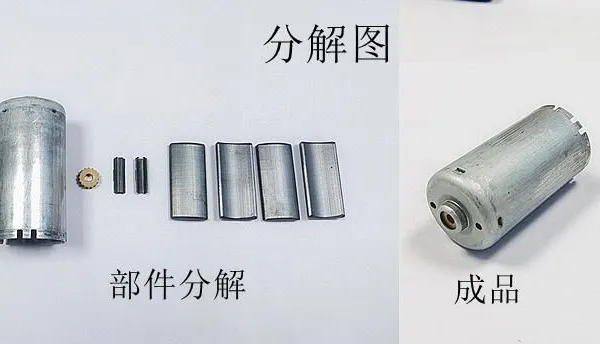

| Location process | under discharging mode), then set up magnets, slingshots, and magnetized after vacuuming, and then discharge the slide way to dock the three-piece assembly machine. During the production process, there is leakage of assembly and assembly is not in place, and the defective products will be sorted and discharged. |
| Rated input voltage | AC220V /50HZ； |
| Air pressure | The working pressure is 0.5~0.7MP; |
| Air source interface dimensions | φ12 quick connector; |
| Equipment inlet and outlet dimensions | The discharging port to the bottom of the chassis is not high enough to be 780MM, and the length of the casing outlet is 510MM |
| Overall size and color | 1650 x 1000 x 1800 (MM) The actual device size varies |
| The overall structure is compact, paint parts color Wanbao to green; | |
| The frame part adopts aluminum profile structure specification (40 x 40) mm, transparent acrylic; | |
| The production efficiency | The capacity of the equipment is 1000-1200 per hour1200/H |
| interface | Man-machine operation interface, with the necessary protection function; |
| Unparallel ease of use | After loading the material, 1 manual guard, lack of material alarm function; |
| security | Must ensure safe operation and good grounding. |
| Ease of maintenance | UC-MAUC； |
| Basic Device Configuration | Bearing manufacturer Jingyi bearing |
| Optical fiber, sensor manufacturers Omron | |
| Controller (PLC) manufacturer Xinjie | |
| Operating panel (touch screen) manufacturer Xinjie | |
| Motor manufacturer Oneng | |

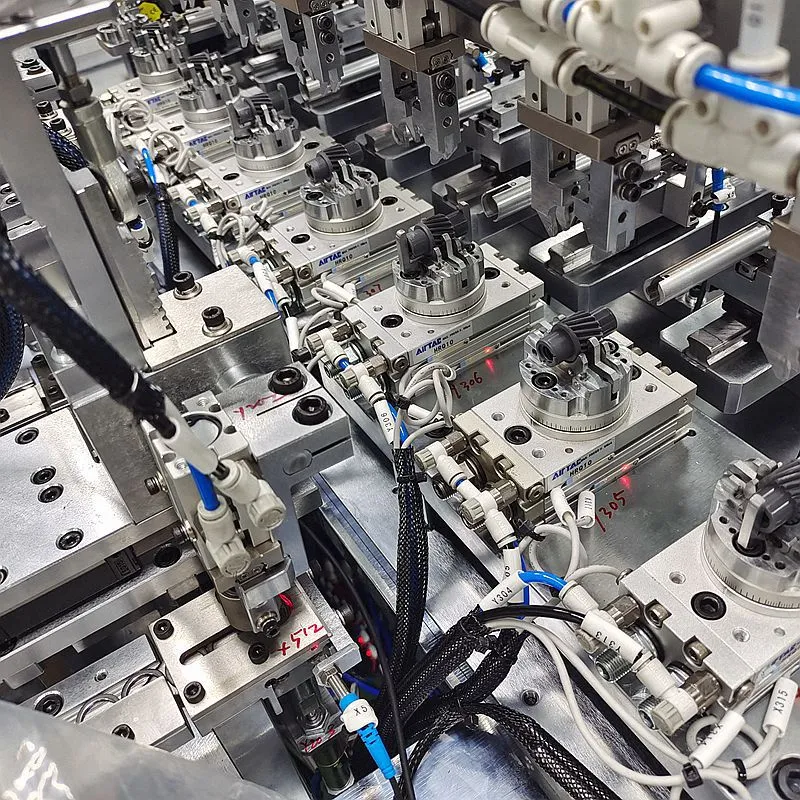

| Pneumatic components manufacturer AirTAC; | |
| Buffer manufacturer AirTAC | |
| Drawing list of wearing parts | Come with it; |
| Support for custom attributes. | |
