Home > Products > plastic welding machine > Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet

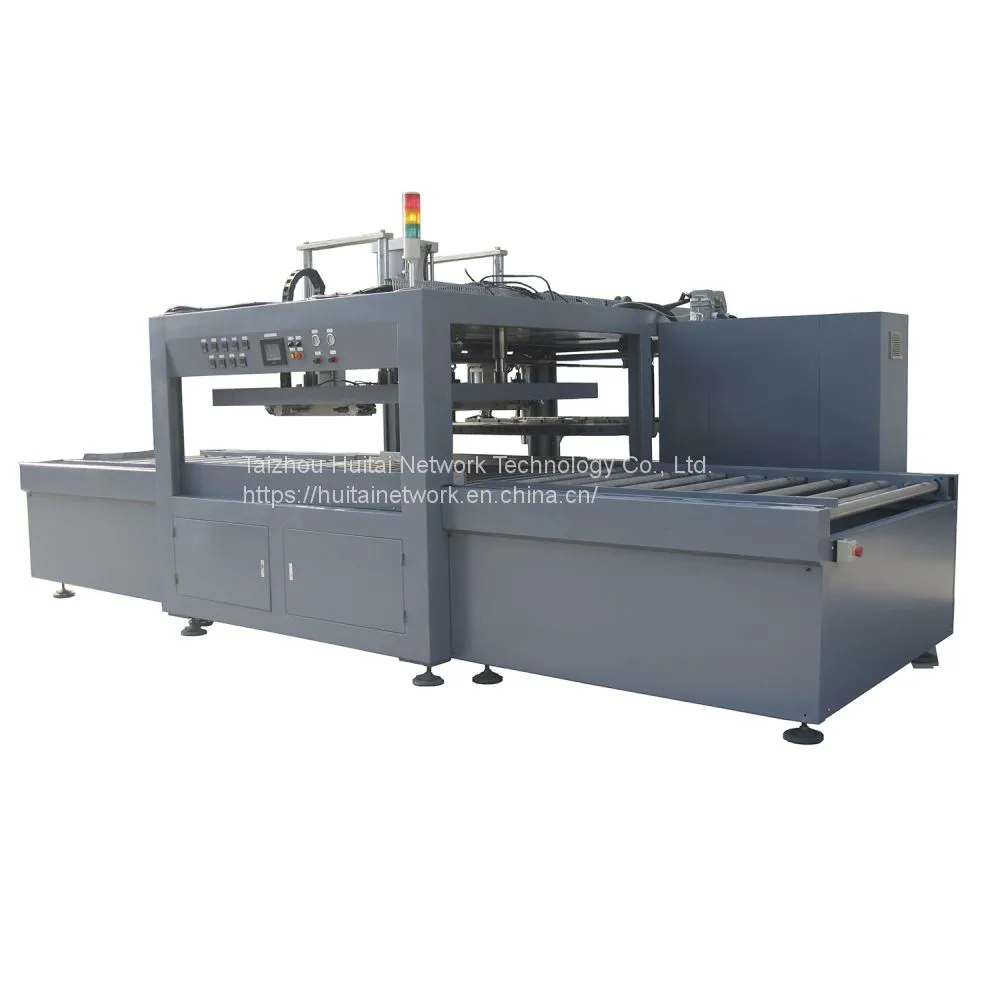

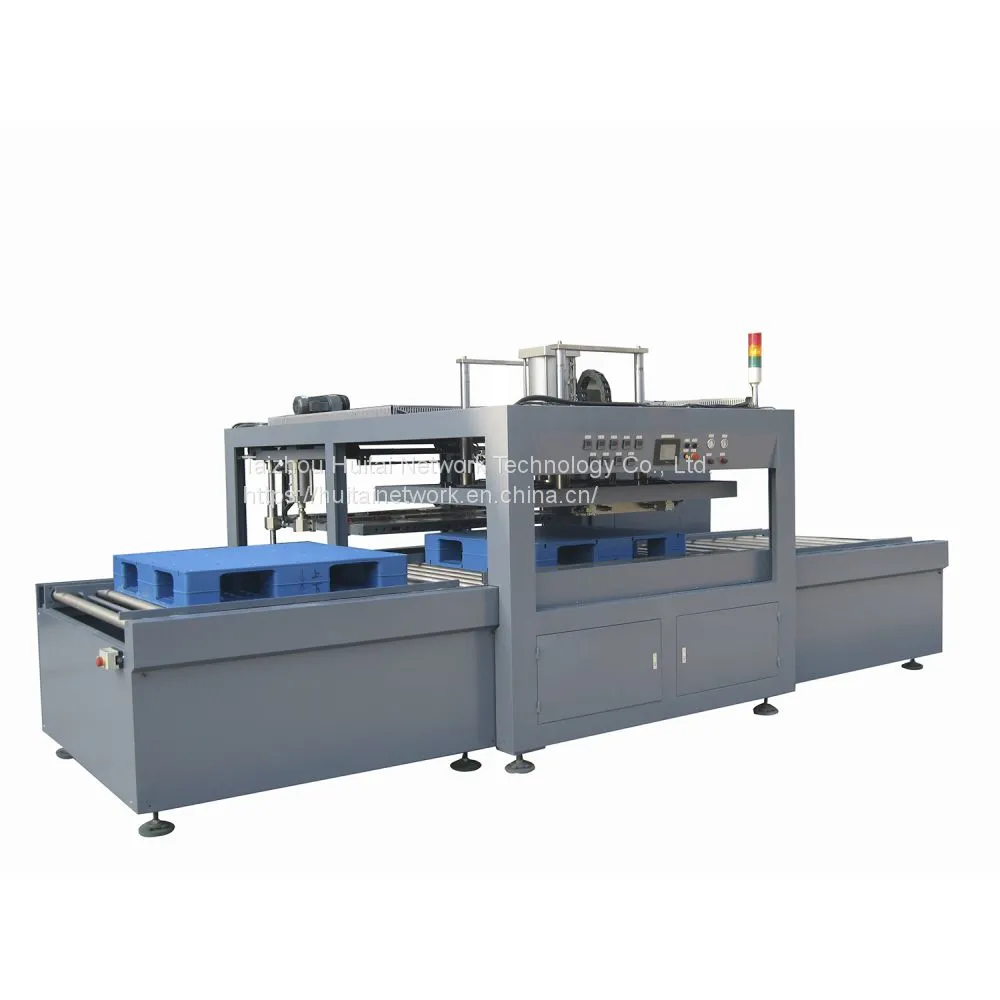

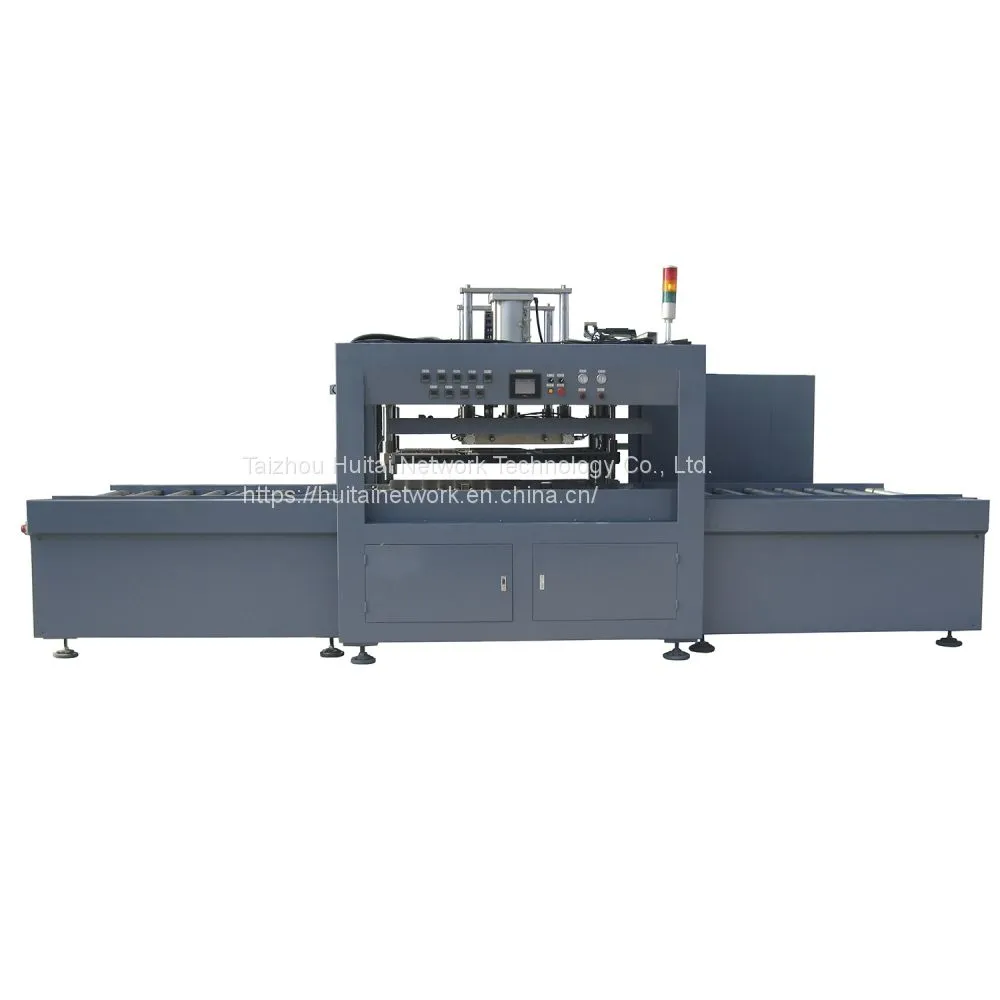

Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- shanghai
- T/T
- 25 days
You May Like
-
Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
-
Plastic PP Membrane Hot Chamber vertical Frame membrane filter press plate mold
-
green house plastic Polypropylene ppr capillary tube mat for heating and machine
-
huitai plastic Polypropylene ppr capillary tube mat for heating and machine
-
huitai bestcome plastic Polypropylene ppr capillary tube mat for heating and machine
-
huitai bestcome plastic Polypropylene ppr pp capillary tube mat for heating and machine
Product Details
| Brand Name | huadike | Place of Origin | China | |
| Model Number | HDKPPS | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 450kg | Voltage | 380V50HZ | |
| Power | 5kw | Usage | Hot Plate Plastic Welding Machine | |
| Frequency | 3-6 minutes | Dimensions | 2000*1400*1000 | |
| Welding Area | 300-1500mm |
Product Description
lastic pallets welding machine technical parameter
electric voltage: 380V 50/60HZ triphase
Max. power:6KW
Compressed air flow :110L/MIN
weight:about 3.2tons
up and under cold mould is controled by air pressure .

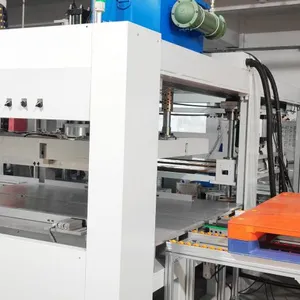

plastic pallets welding machine Equipment operation process

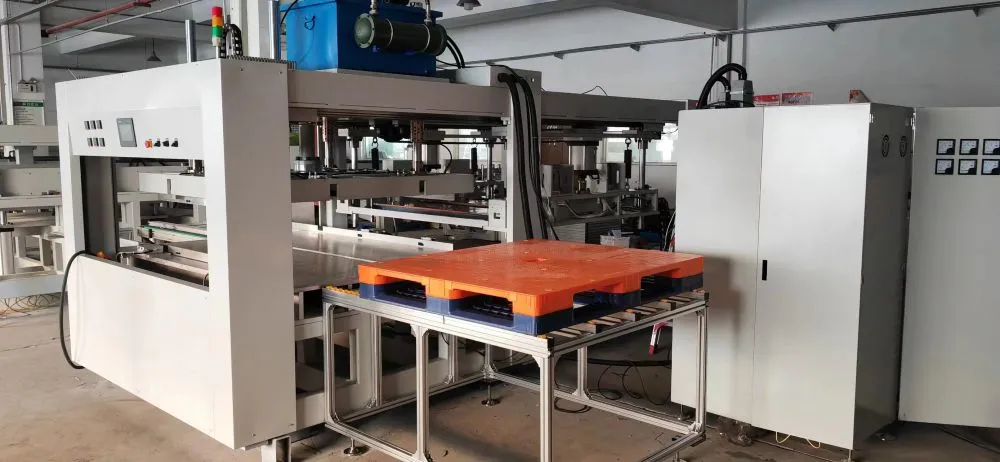

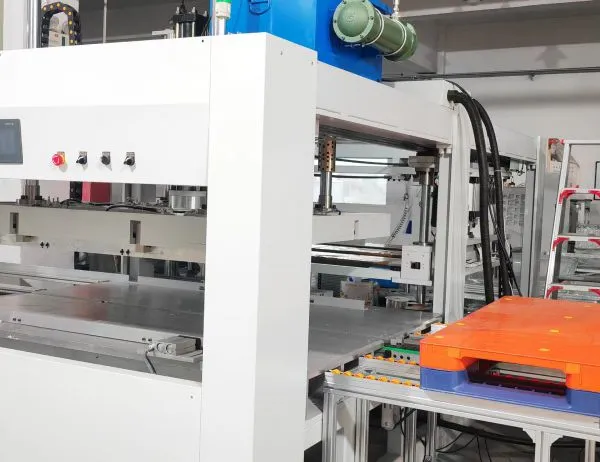

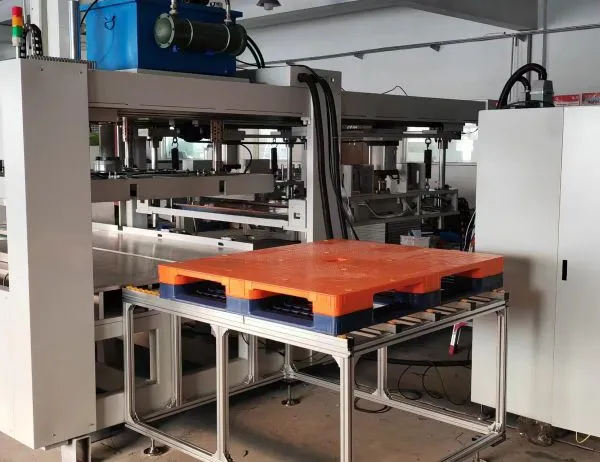

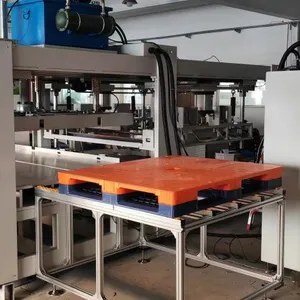

two operators will put the two pieces of plates together,putting on the automatically moving device , the equipment will automatically move the plates to the welding area .The sensor detects the workpiece, cold mould will automatic clamping workpiece, automatic moving device will stop .Under the cold die under cold mold, jig automatic clamping workpiece, upper and lower cold cavity and to position.Hot die move forward and to the bit, upper and lower cold die under the plastic part heating.To be heated to the set time, upper and lower cold die at the same time up and down in place, hot die back to in situ.Under the cold die, the workpiece on solidifying and cooling, cold die clamp automatic release, upper and lower cold die back.The welding process in the completion of the above, the operator can continue to the next welding workpiece into the device automatically moving frame.Mobile frame welded workpiece from the welding areas at the same time, the other a workpiece to be welded to the welding area. (move out the welding workpiece need to move to the specified location).Loop automatic completion next action.
