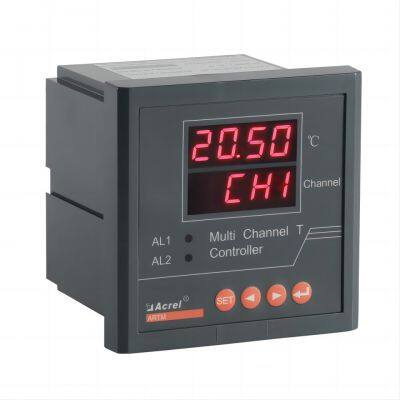

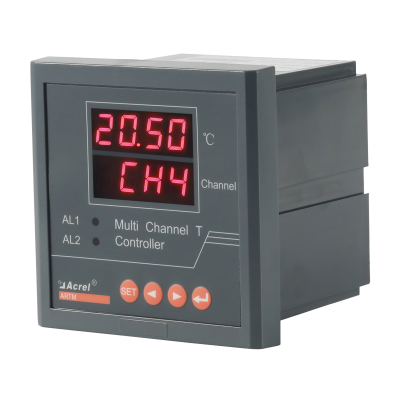

Acrel ARTM-8 Intelligent Temperature Control Meter Embedded Installation Can Enter up to 8 Channels of PT100 Sensors
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ATC600-C Wireless Temperature Measurement Transceiver, Installed on 35mm Rail, Can Receive 240 Sensor Data SimultaneouslyNegotiableMOQ: 1 Piece -
Acrel Relay ATC600-Z Used With ATC600-C for Relay Transparent Transmission 35mm Guide Rail InstallationNegotiableMOQ: 1 Piece
-
Acrel ATC600-M Can Receive 240 ATE300M Sensor Data 2-way DO Transceiver 1 RS485 Interface, Modbus ProtocolNegotiableMOQ: 1 Piece
-
Acrel Tied Type Passive Wireless Temperature Sensor ATE400 Working Power Supply CT Takes Power, and the Starting Current is 5ANegotiableMOQ: 1 Piece
-
Acrel ATE200 Belt Wireless Temperature Sensor Installed in Circuit Breaker Contacts and Bus Bar Sampling Period 25SNegotiableMOQ: 1 Piece

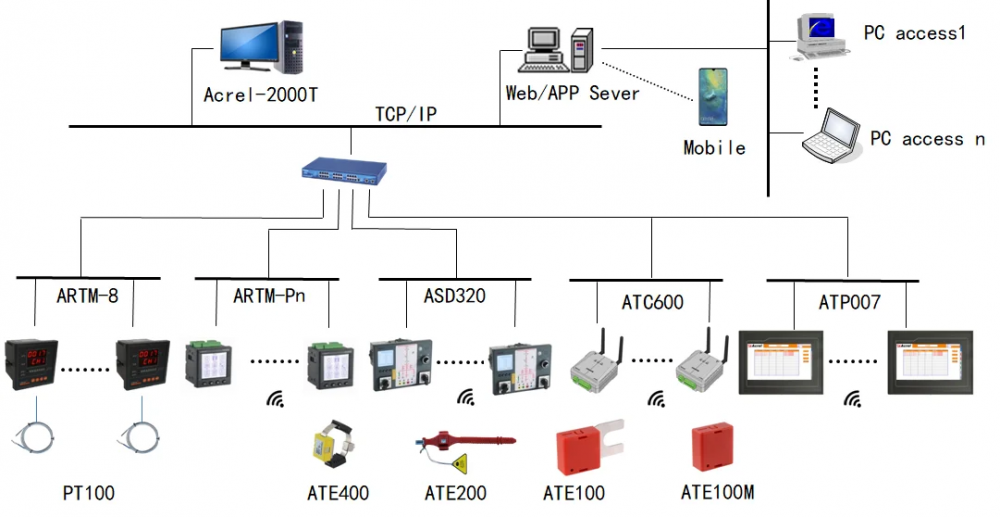

ARTM series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.
Acrel Model | ARTM-8 | |
Channels | 8 | |
Inputs | Thermal resistance: Pt100 | |
Accuracy | 0.5s | |
Power supply | Voltage | AC85~265V，DC 100~350V |
Consumption | ≤2W | |
Alarm | Channels | 2 groups normally open |
Capacity | AC250V/5A，DC30V/5A | |
Communication | Protocol | MODBUS-RTU |
Interface | RS485 | |
Speed | 1200 2400 4800 9600 19200 | |
Isolation | 2kV/1min Ac effective value | |
Environment | Temperature | Working: -10～+55℃, Storage: -25～+70℃ |
Humidity | ≤95%, No dew, no corrosive gas place | |
Altitude | ≤2000m | |
