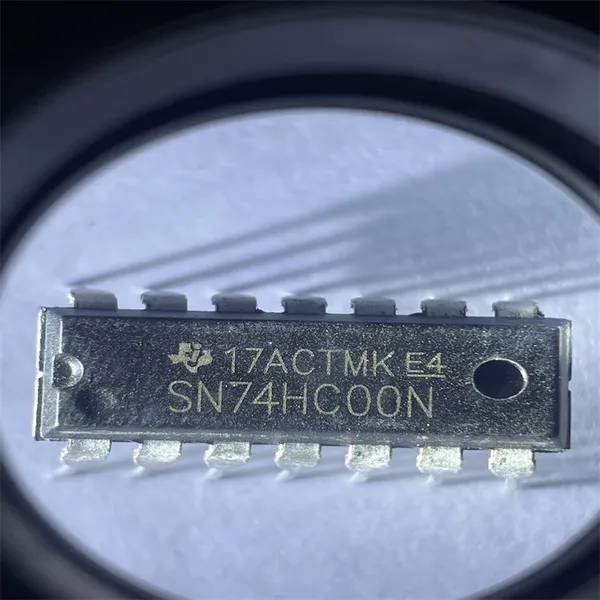

SN74HC00N
Manufacturer: Texas Instruments
Product Category: Logic Gates
RoHS: Details
Product: Single-Function Gates
Logic Function: NAND
Logic Family: HC
Number of Gates: 4 Gate
Number of Input Lines: 8 Input
Number of Output Lines: 4 Output
High Level Output Current: - 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 8 ns
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package / Case: PDIP-14
Packaging: Tube
Brand: Texas Instruments
Function: Quad 2-Input
Height: 4.57 mm
Input Type: Schmitt Trigger
Length: 19.3 mm
Logic Type: 2-Input NAND
Number of Bits: 4 bit
Operating Supply Current: 20 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: - 40 C to + 85 C
Output Type: CMOS
Product Type: Logic Gates
Series: SN74HC00
factory pack quantity: 25
Subcategory: Logic ICs
Width: 6.35 mm
Unit Weight: 0.032734 oz
Send Inquiry to This Supplier
