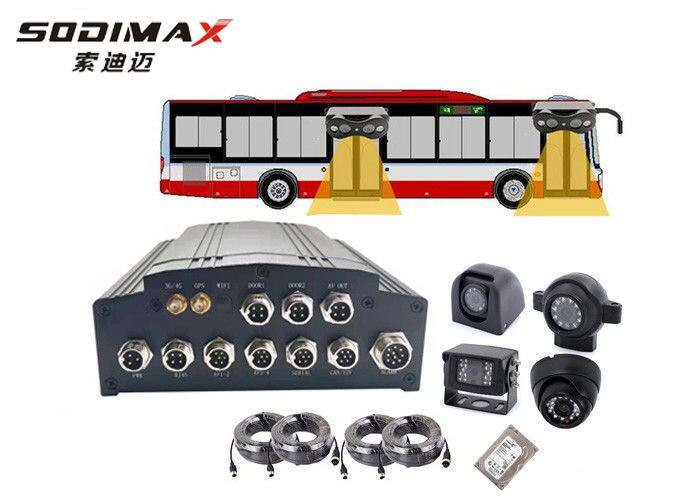

98% Precise digital Bus People Counter cameras passenger counting for Public Bus

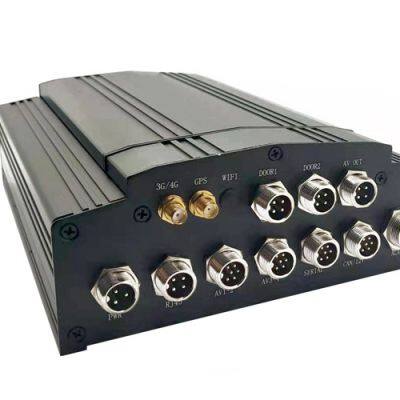

1. Main Unit(below)

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g

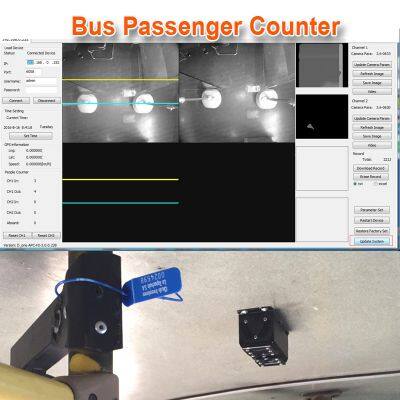

2. 2 Binocular Cameras for front and back door

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.

3. 4 CCTV Cameras

4. One car monitor for Option

Main Parameters
1.1 Counting camera
Image Sensor:1/3 SONY
CCD TV System: PAL/NTSC
TV Lines:700TVL
Image Output: Synchronous sampling
output Lens’ Spacing:5MM
Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
Viewing Angle:55 degree
Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),
2.3M~2.5M(4MM len)
Detecting Door Width Range:0.4M~1.2M
White Balance: Auto Shutter:1/50-
1/80000(s) 1/60-1/80000(s) Frame
rate:25 FTPS
Video Output Interface: Composite video output, 75Ω 1Vp-p
Aviation Gain: Auto
SNR:＞48db
Power Supply:DC12
V Power:≤1W
Working Temperature:-30～+55℃
Relative Humidity:10%～90% Not condensed
Cooling: no active cooling, passive structure with heat
dissipation Product Size:155(L)*50(W)*55(H)MM
Weight:0.32KG

The Vieo- Counting Bus People Counter(VPC) with binocular lens is developed based on advanced Video Counting&image analysis technoloy.

It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.

After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.

It can automatically filter backpack, luggage etc.

3G Flowing Statistics Bus Passenger Counter System can support 4 channels input video, AHD 720P or 2 channels AHD720P + 2 channels D1 cameras or all D1 cameras; GPS location tracking; 3G/4G live video streaming view; HDD (max 2TB)+SD(max 128GB), Counting people getting on and off the bus, alarm trigger like over speed,harsh brake, RS232/485 for extension functions like oil sensor, G-sensor, lan port, etc.

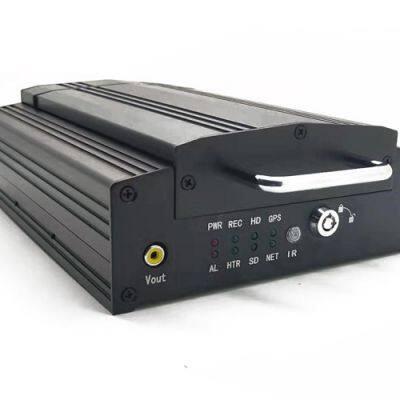

1.3 Main MDVR
