48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
- T/T L/C Credit Card PayPal
You May Like
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load Factor
-
Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load Factor
-
Acrel AMC16Z-FAK48 Electric Module Multi Channel Current Detection Module For Data Center Precision Cabinet
-
Acrel AIM-T300 Insulation Monitoring Device Multiple Fault Indication Function Mainly Used in IT Power Distribution Systems in i
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | AMC16Z-FAK | Operating Temperature | -10℃~45℃ | |

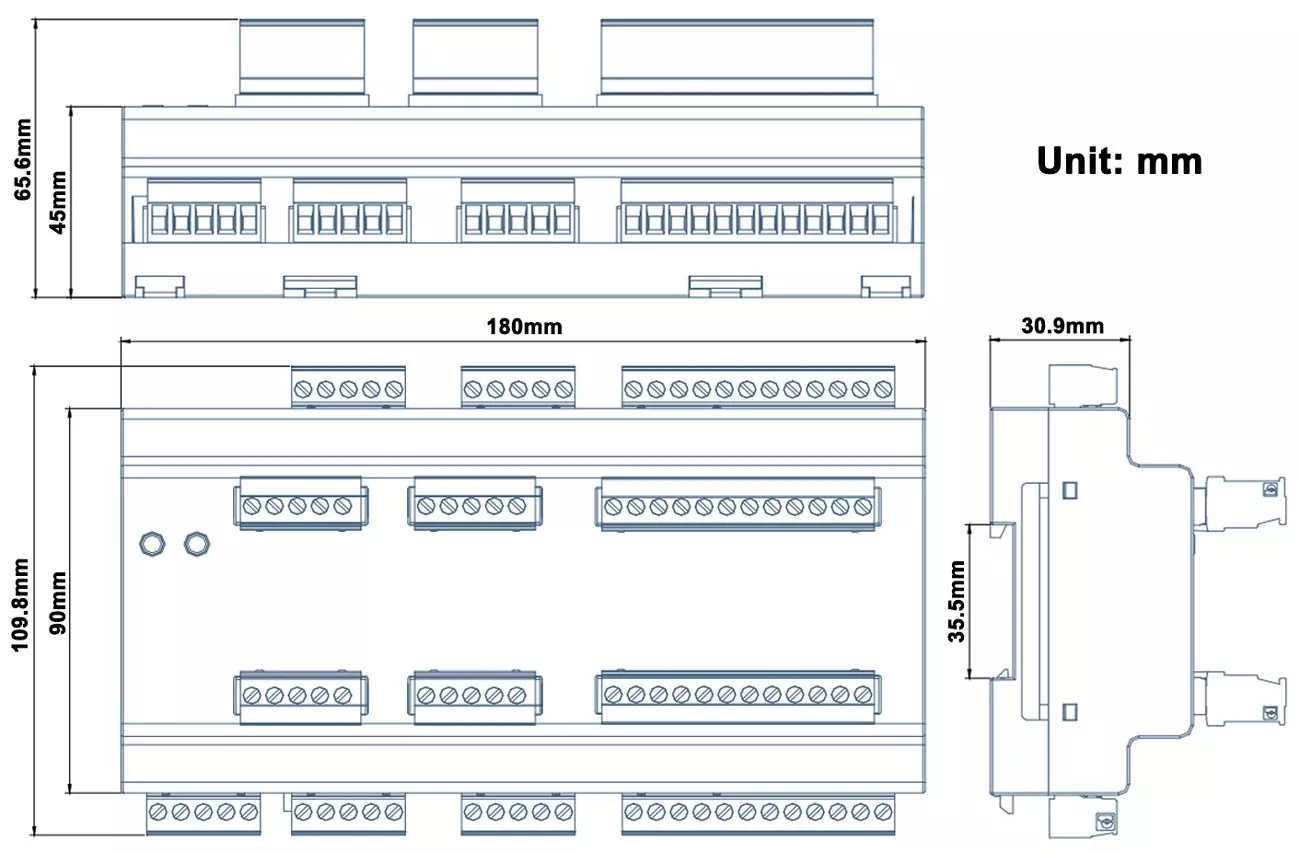

| Dimensions | 180*90*45mm | Measuring Capacitance Range | 0-999999 KWH | |
| Measuring Voltage Range | 220~264Vac L-N | Measuring Current Range | 50mA AC (via -/50mA CTs) |
Product Description

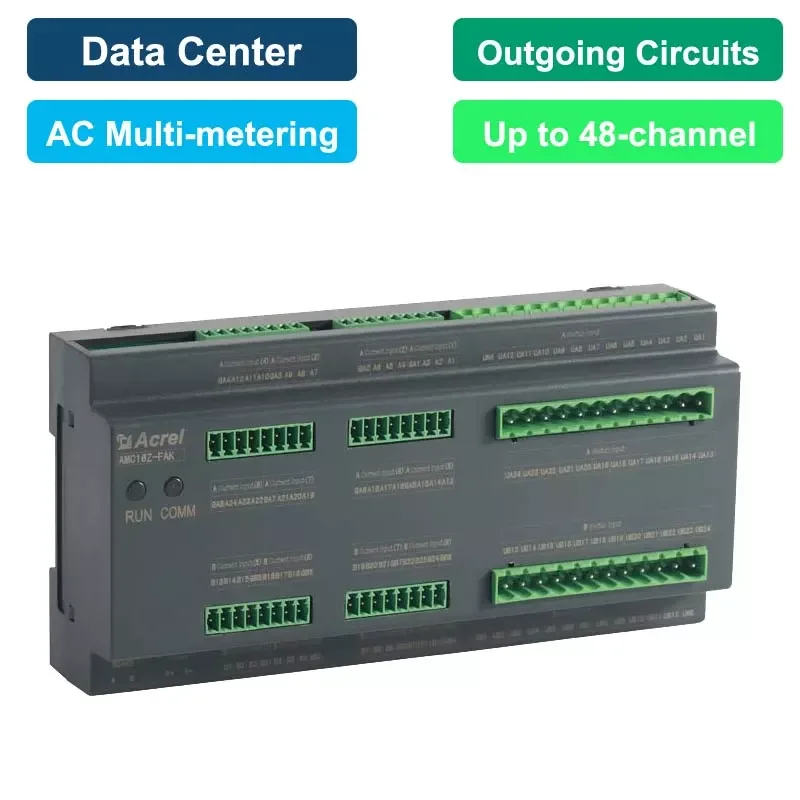

AMC16Z-FAK Multi-circuit AC Data Center Energy Meter

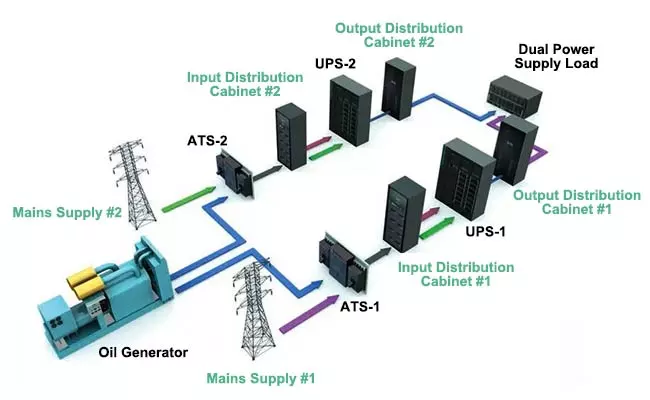

AMC16Z series AC precision power distribution monitoring device is specially designed for data center server power management. The device is designed exquisitely and can provide A + B 2 incoming and 96 outgoing electrical parameters, the input and output switch, and the state of the lightning protection device with real-time monitoring. All alarm thresholds of measurement channels can be set separately. Over-outgoing triggers system acoustical warning immediately. A highly integrated monitoring loop is realized in the volume of traditional instruments.
| ● Monitoring: AC Outgoing Branch Circuits Multi-metering (1-phase & 3-phase) ● Measurement: Voltage, Current, Frequency, Active Power, Reactive Power, Power Factor and etc ● Power Quality: 2nd~31st&Total Harmonic ● Communication: RS485 (MODBUS-RTU) ● Rated Voltage: 220~264Vac L-N ● Rated Current: 50mA AC (via -/50mA CTs) ● Standard&Certificate: CE; IEC; LVD |

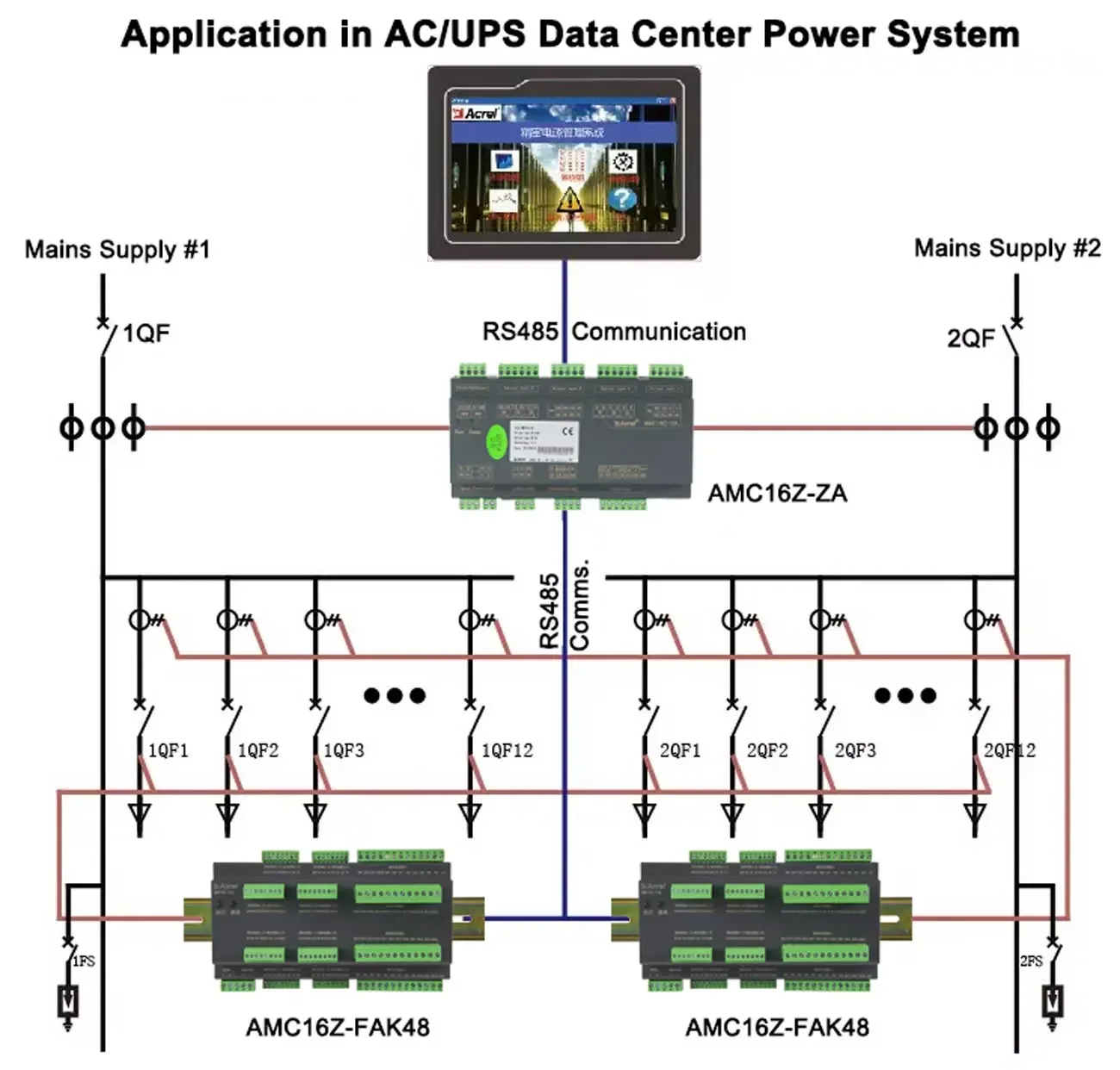

Dual AC Outgoing Circuits Monitoring ● A+B Dual-side independent AC Circuits Monitoring ● Full Electrical Parameters Monitoring ● Outgoing Branch Circuits Multi-metering | |

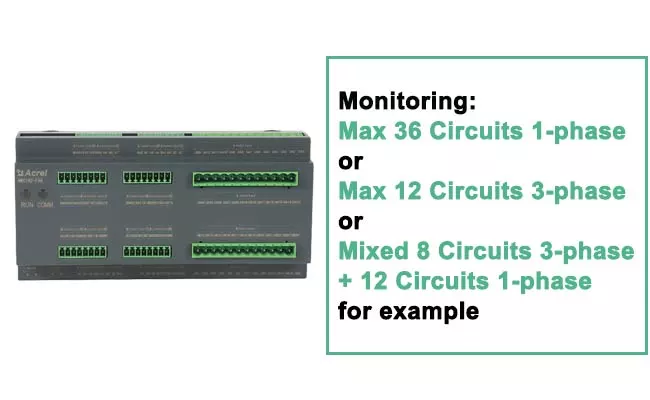

Multiple Branch Circuits Metering ● Both 1-phase&3-phase Metering ● Max 36 circuits 1-phase ● Max 12 circuits 3-phase ● Mixed 8 circuits 3-phase and 12 circuits 1-phase for example | |

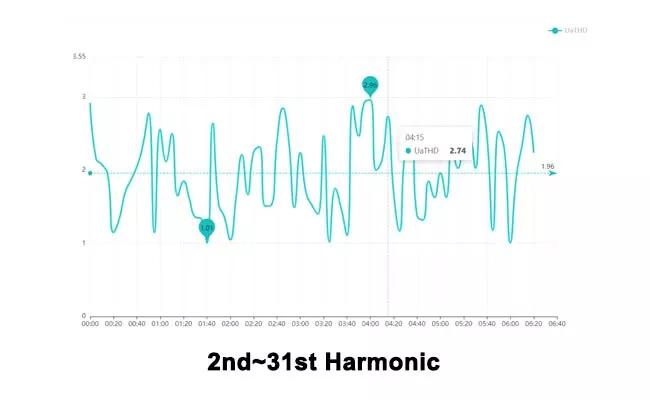

Power Quality Analysis ● 2nd~31st Harmonic ● Total Harmonic | |

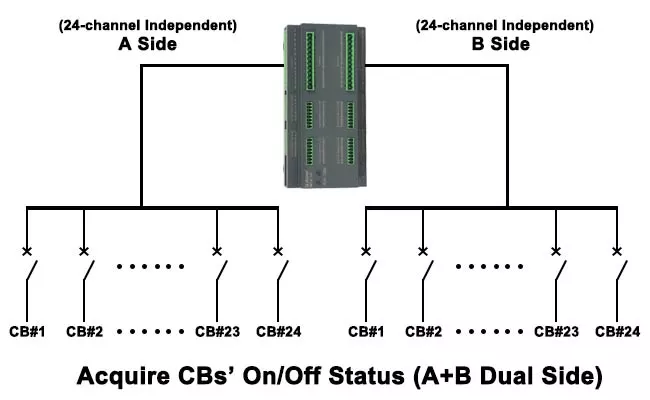

Switch On/Off Status Detection ● A+B Dual Side ● 48-channel of DI (Digital Input) |
|
1. Function Overview
| Function | Description |
| Measurement(Common) | AC kWh, kVarh, Active Power, Reactive Power, Current, Voltage, Power Factor, Apparant Power, Frequency, Zero ground voltage, neutral line current |
| Measurement(Power Quality) | total harmonic content (THD), 2-31 harmonics |
| Temp.&HumidityMonitoring | Tempeatrue Monitoring Range: -40℃～+99℃ Humidity Monitoring Range: 20%～90% |
| Accuracy | Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1 |

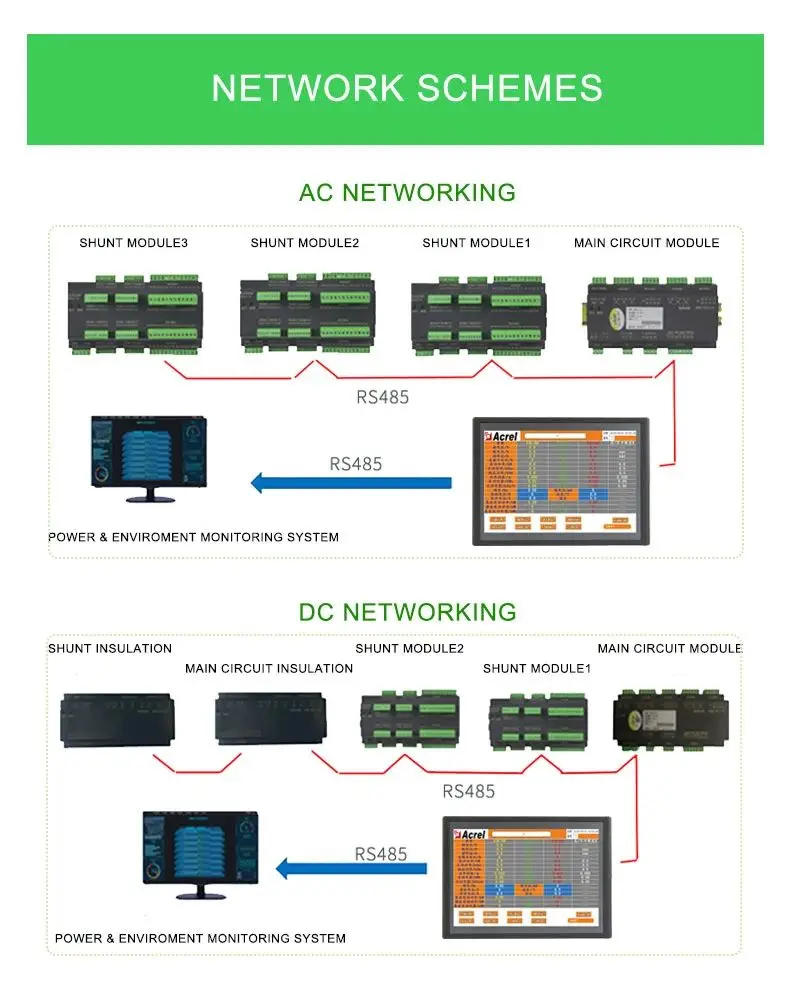

| Communication | RS485 Interface (MODBUS-RTU protocol) |
| DI(Swtich Input) | 48-channel DI (Digital Input); dry contact |
2. Main Parameters
| Parameter | Description&Value | |
Voltage Input | Rated Voltage | 3x220~264Vac L-N |
| Reference Frequency | 45~65Hz | |
Current Input | Rated Current | 50mA AC (via -/50mA CTs) |
Power Supply | Source from | Power supply by AMC16Z-ZA;DC 12-24V when used alone |
Installation | DIN-rail | 35mm standard DIN-rail Installation |
Phase Wiring | 1P2W&3P4W | 1-phase 2-wire&3-phase 4-wire |
Safety | Insulation | All terminals and the insulation resistance between the conductive pieces not less than 100MΩ |
| Withstand voltage | A-channel voltage and current signal // B-channel voltage and current signal // other ports meet AC2kV 1min between pairs, leakage current should be less than 2mA, no breakdown or flash over phenomenon. | |
3. Environment
| Condition | Description&Value |
| Temperature | Operating Temperature: -20℃～+55℃; Storage Temperature: -40°C ~+70°C |
| Humidity | ≤95%RH,no condensation,without corrosive gas |
| Altitude | ≤ 2000m |
|

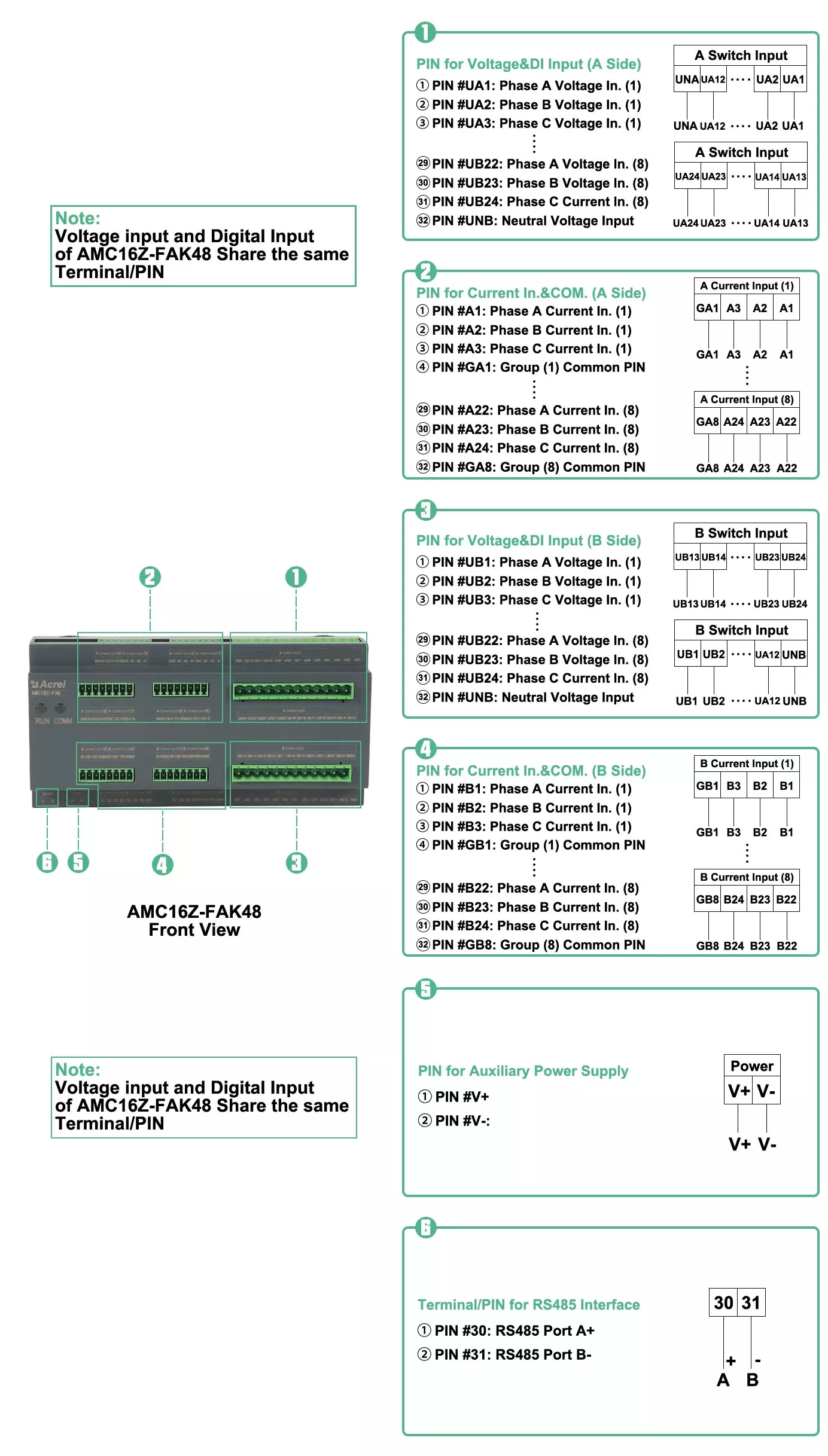

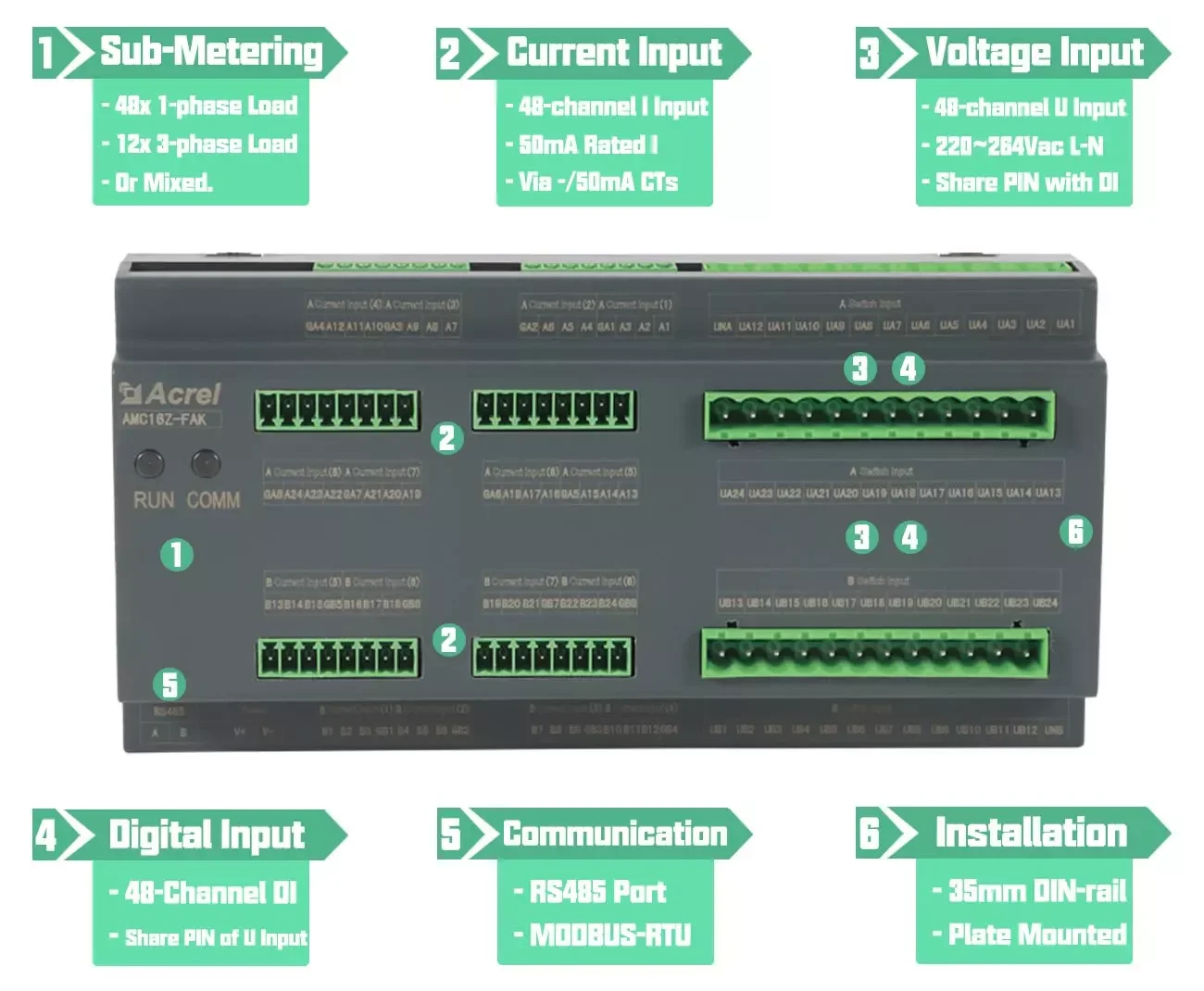

| PIN/Terminal Overview of AMC16Z-FAK48 |
|

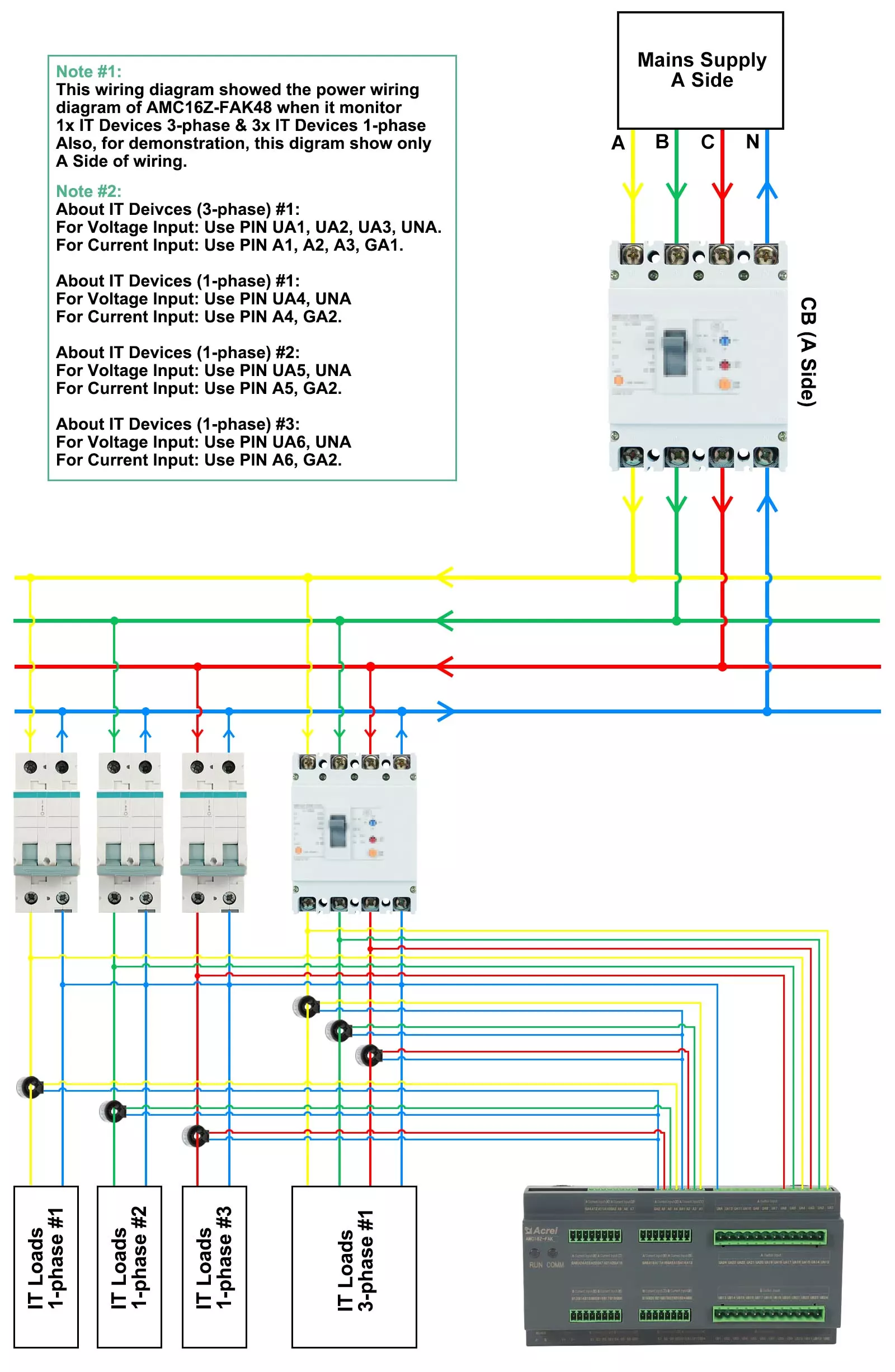

| Voltage&Current Input Wiring of AMC16Z-FAK48 (Demo for A side partial wiring) |
| |
