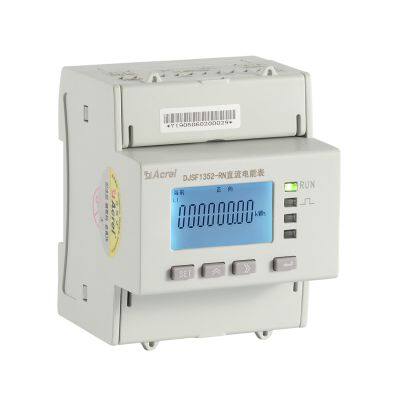

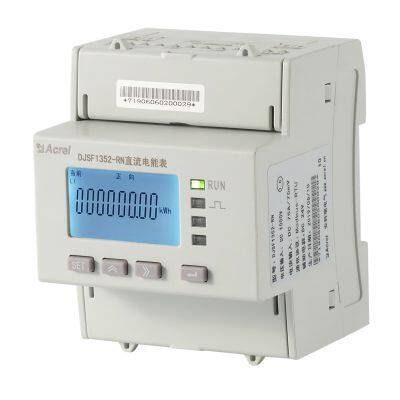

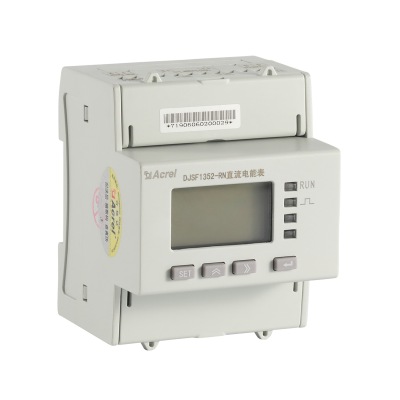

DIN Rail Power Meter DJSF1352-RN 0~1000V DC For DC Battery Charging Pile Solar PV LCD Display With RS485 CE Certificate
US$ 104 - 148
/ Piece
1 Piece(Min. Order)
- T/T L/C Credit Card PayPal
You May Like
-
Acrel AID150 Medical Digital Centralized Alarm Insulation Display Instrument Indicator Device for Hospital Operating Room
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load Factor
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | DJSF1352-RN | Phase | Single Phase | |
| Output Voltage | 1000V | Operating Temperature | -25 °C ~ +65 °C | |
| Dimensions | 72*71*87.8mm | Display Type | Digital Only | |
| Accuracy Class | 1 | Measuring Energy Range | 0-999999.99kwh |
Product Description
Solutions & Applications
Solor PV Power Distribution Monitoring Solution
Practical Application in Solar PV with Energy Storage Inverter
Practical Application in Solar PV with on-grid Inverter
Practical Application in Twin EV Charger
Products Description
DJSF1352-RNDC Dual-circuits Monitoring DIN Rail Energy Meter
DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.
The meter can have infrared communication interface and RS-485 communication interface, and supports Modbus-RTU protocol and DLT645-97 (07) protocol at the same time.The meter can have relay alarm output and digital input function;You can set the ratio, alarm, and communication through the meter panel keys according to different requirements.The meter can have event recording of switch (Modbus protocol), programming and event setting records (645 protocol), instantaneous and timing freeze function of data (645 protocol), maximum and minimum value recording function of voltage and current power.
● Measurement: kWh, kVarh, Power, Current, Voltage and etc
● Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor)
● Voltage Rating: 0~1000V DC
● Application: DC Battery; Charging Pile; Solar PV and etc
● Communication: RS485 (MODBUS-RTU)
● Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU); Built-in Bipolar Power Source (for Hall Sensors); DO/DI Function
● Display: LCD Display
● Dimension: 72*71*87.8mm (L*W*H)

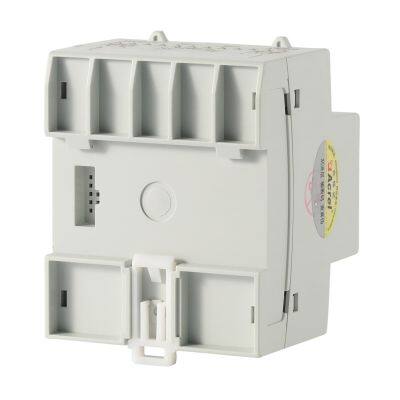

● Installation: 35mm DIN Rail
● Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC
● Standard&Certificate: CE
Dual Independent DC Circuits Monitoring
● For Twin EV Charger&Battery ● Voltage Input:DC 0~1000V ● Current Input (by Shunt): 0~75mV ● Current Input (by Hall Sensor): 0~5V, 0~10V, 0~20mA, 4~20mA
Built-in Bipolar Power Source
● Power Supply for Hall Effect CT
● Range: DC -12V ~ DC +12V
● Range: DC -12V ~ DC +12V
Optional Dual RS485 Communication
● Protocol: MODBUS-RTU
● 1 RS485 (standard)
● 1 RS485 (standard)
DO/DI Function
● 2 DO (2A/30V DC; 2A/250V AC)
● 2 DI (dry contact)
● 2 DI (dry contact)
LCD Display
● Parameter Display
● Programming Interface
● Programming Interface
Keypads HMI for Programming
● Parameter Display Setting
● Communication
● Communication
Function & Parameter
Dimension & Installation
