Home > Computer Products > Storage Device > Hard Disk > 4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card

4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card

4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card thumbnail-1
4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card thumbnail-2
4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card thumbnail-3
4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card thumbnail-4
4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card photo-1
4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card photo-2
4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card photo-3
4CH HDD GPS Basic Black Box Car Digital Video Recorder , Vehicle Mobile DVR SD Card photo-4
US$ 4 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
sodimax
Place of Origin:
China
Model Number:
SDM728-4G-GPS
Contact Supplier Request Quote Chat Now
Shenzhen Sodimax Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name sodimax
Place of Origin China
Model Number SDM728-4G-GPS
Video Format: H.264 Network Port: RJ45
Storage Card: Hard Disk 2TB+64GB SD Card Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
Resolution: 720P/D1/HD1/CIF G-Sensor: Support
Cameras: Sony CCD Or AHD Cameras 3G/4G GPS WIFI G-Sensor: Optional
High Light: mobile dvr with gps tracking, black box car digital video recorder

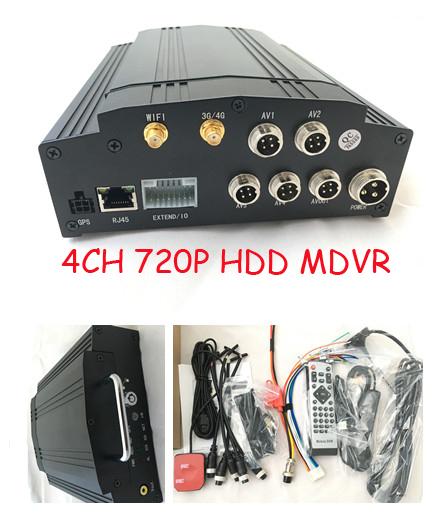

Product Description720P blackbox 4CH HDD GPS Basic MDVR build-in G-sensor Vehicle Mobile DVR

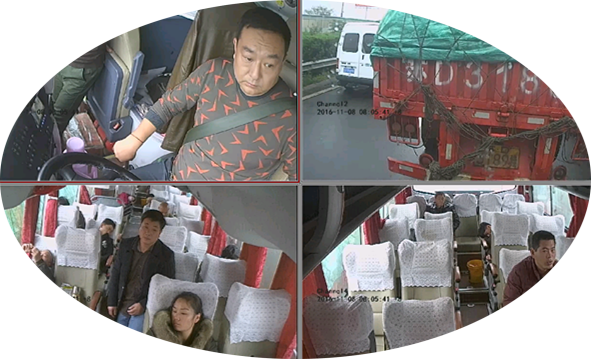

The DVR Black Box Recorder system records both the inside and outside of your vehicle to prove what really happened in any situation.



The 4 camera device uses 2 regular cameras as well as 2 night/day cameras, up to 28 days of footage can be saved to its hard drive to ensure a moment is never missed.



All video recorded is full 720P HD and 30 frames per second over 4 channels.



The DVR device is a power managed and wide voltage +8V~+36V DC.



Main Features

  • 4 Channel*720P or 1080P

  • H.264 compression format

  • 2.5“ SATA 1TB Hard disk

  • GPS tracking

  • 3G remote control

  • Built-in WIFI for option

  • 4CH full 720P/D1 recording

  • 6 alarm input, 2 alarm output

  • 2 way intercom

  • Remote oil&power cut-off

  • Mirror recording in SD card

  • Patent UPS continuously working to protect data upon sudden power-off

  • Customized GPS data format sending(optional)

  • Built-in Heater(optional)

  • Lockable, metal HDD handle, protect HDD efficiently

  • Watermark and Time/Date stamp in exported images

Specifications



Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

Resolution

4 channels x720P or 1080P

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting dual SD card, which supports up to 32G

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

Function Alarm

GPS overspeed alarm, acceleration alarm, motion detection alarm

Communication Ports

RS232, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

Compatible with GPRS, EDGE;

Embedded Wi-Fi module;

GPS (Optional)

Supporting external GPS

Remote Data Transmission Channel Selection

Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

PTZ Control

Supporting PTZ control realized by local ad client software;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Delayed shutdown

3. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@4*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

141(L)×133(W)×43(H)mm





Our Service

Server --- First year is free. We can also help to build up your own Server. Welcome to talk.
CMS Platform --- iFAR is our brand name of softwares. Copyright protection. Free platform. It can support PC and Mobile phone.
Player --- Free Player.
Software --- iFAR is free. Welcome OEM customized project.
Technology support --- We provide Installation guiding, Problem solving, Remote upgrading etc.
Warranty --- We provide 12 months quality warranty based on normal use


 VW619HD Series

  1. 4CH Basic HDD MDVR

  2. 4CH HDD MDVR+ GPS Tracking+G-sensor

  3. 4CH HDD MDVR+ 3G/4G+GPS Tracking+G-sensor

  4. 4CH HDD MDVR+3G+GPS Tracking+WIFI+G-sensor



4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card 0



4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card 1


Product Tags: 3g wifi gprs gps mobile dvr , 3g mobile dvr , mdvr gps 3g wifi , vehicle traveling data recorder , fleet management system , fleet management
