6205-H-T35D Low Temperature Bearing

Name: 6205-H-T35D Low Temperature Bearing
Brand: MONTON
Availability: InStock

FOB Price

US$ 1 - 1000 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MONTON	Place of Origin	China
Model Number	6205-H-T35D Low Temperature Bearing	Outside Diameter	,
Bore Size	,

Product Description

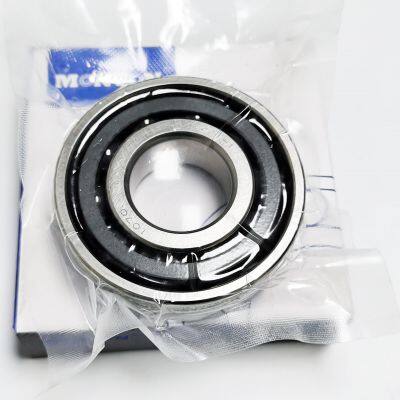

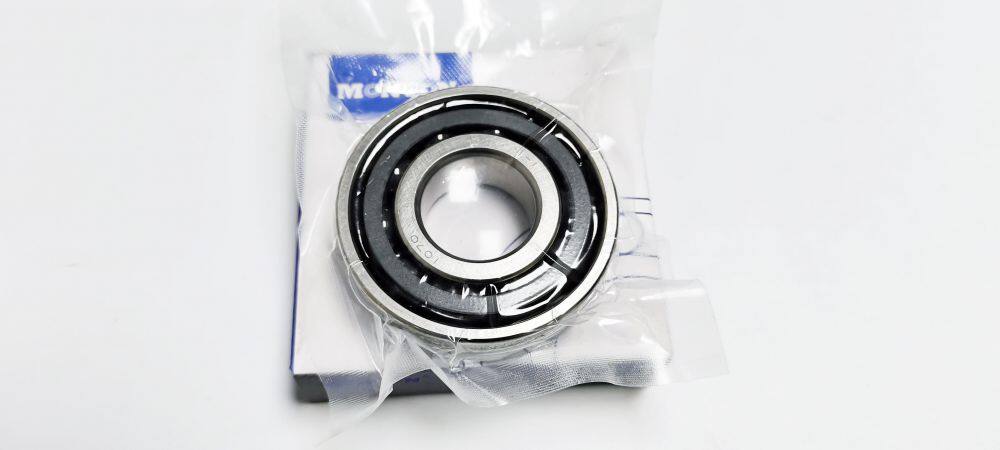

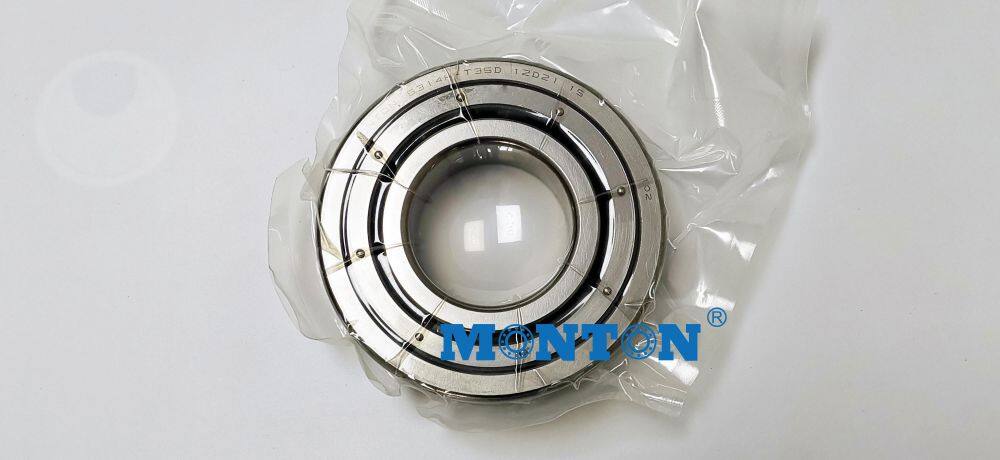

6205-H-T35D Low Temperature Bearing

Name	Deep Groove ball bearing
Seires	62 series
Brand	MONTON
Model	6205-H-T35D
d	25
D	52
B	15
Ring Material	440C Stainless Steel/ Cronidur30/G95Cr18/CrMoVN16
Cage Material	Special cage material
r	1
Load rating Cdyn	14.00kN
Load rating C0stat	7.8kN
Attainable speed /Grease	contact technical
Attainable speed /Oil	contact technical
Sealed	as customer requested
Weight	0.03KG
Bearing Arrangement
Design Structure	Deep groove
Precision	P4,P5 or as customer requested
Vibration	ZV1, ZV2, ZV3, or as customer requested
Clearance	C0, C2, C3, or as customer requested
Quality standard	ISO9001: 2000/SGS

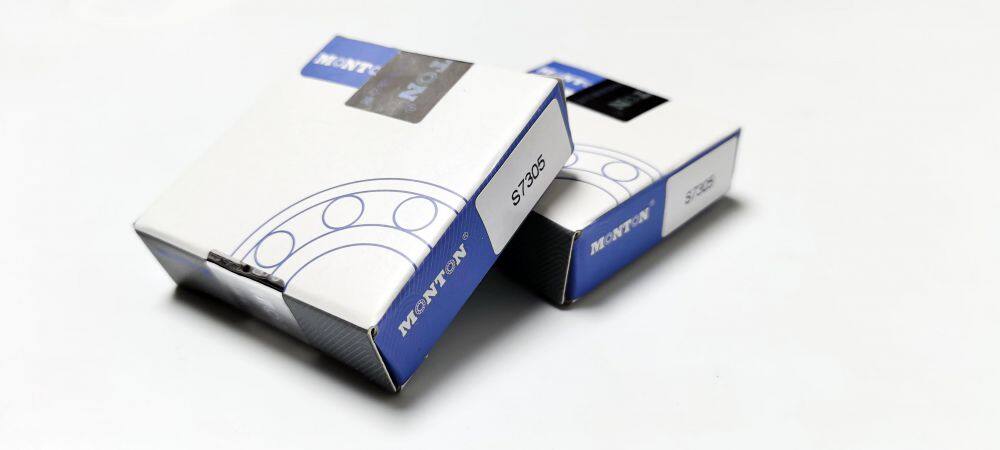

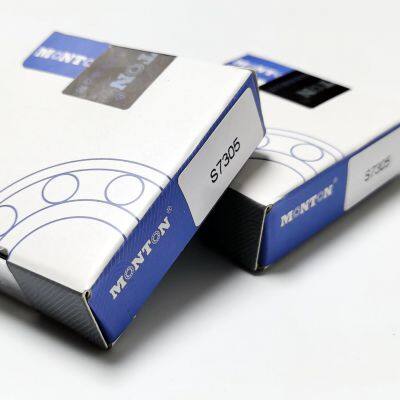

Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	LNG,CNG,LPG,LN2,LO2,LH2,LAr Liquified Gas Pump
Application	LNG,CNG,LPG,LN2,LO2,LH2,LAr Liquified Gas Pump

Feature:
Stainless steel rings
Ceramic balls
Ptfe cage
Long life

LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.

Operating Conditions:
› Speed: 1160 rpm - 3600 rpm
› Gas temperature: -196° C up to 0° C
› Mainly axial load
› Very poor lubrication

Condition Description
Arduous Environments
Corrosive Environment
High Speed
Low temperature
Industry
Chemical and Pharmaceutical
Petrochemical
Features
Stainless steel inner and outer rings
Stainless steel rolling elements
2 pieces riveted fluororesin cage
Benefits
Corrosion resistant
Self-lubricating cage
High speed (up to 3600 rpm)
Extended life
