Home > Products > CNC ROUTER > MISHI Small 3 Axis Cnc Milling Machine for Metal Mini 4040 6060 6090 Cnc Router Machine for Mould Engraving

MISHI Small 3 Axis Cnc Milling Machine for Metal Mini 4040 6060 6090 Cnc Router Machine for Mould Engraving

Name: MISHI Small 3 Axis Cnc Milling Machine for Metal Mini 4040 6060 6090 Cnc Router Machine for Mould Engraving
Brand: MISHI
Availability: InStock

FOB Price

US$ 1980 - 2450 / Set

1 Set(Min. Order)

Port Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen/Dalian
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MISHI	Place of Origin	China
Model Number	MSM6090	Certification	CE, EPR
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	3 years
Weight	700KGS	Dimension(LWH)	185015301290mm
Voltage	220V/380V	Condition	New
Power(W)	2.2KW	CNC or Not	CNC

Product Description

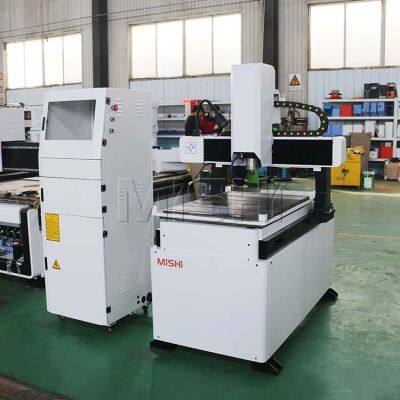

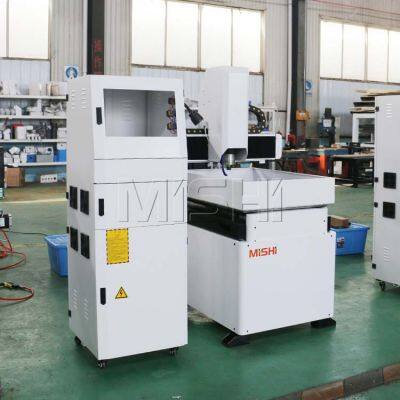

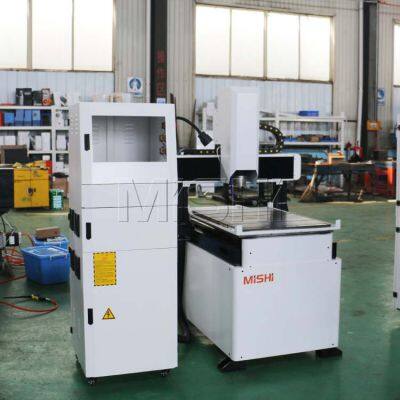

Product Show

Technical Parameters

MINI CNC ROUTER CNC MILLING MACHINE
Machine model	4040 CNC Router	6060 CNC Router	6090 CNC Router
Working area	400*400mm	600*600mm	600*900mm
Machine structure	Cast iron structure, table move on Y axis
Feeding height	150/200/300mm
Spindle	2.2kW water cooling spindle
Spindle speed	0~24000rpm
Control system	Weihong / DSP
Drive and motor	Leadshine stepper / servo driver and motor
X Y Z axis guide rail	Taiwan square linear rails
Transmission	X Y Z axis TBI ball screw driver
Coolant system	Including water sink and pump to cool down tool bits and working materials
Working voltage	AC220V/380V±10% / 50~60Hz
Working precision	0.05mm
Repeatability precision	0.01mm
Command code	G code
Compatible software	Type3/Artcam//Mastercam/Ucancam etc
Machine tool work light	LED machine light
*The size, color, configuration and design can all be customized according to customer's requirements.

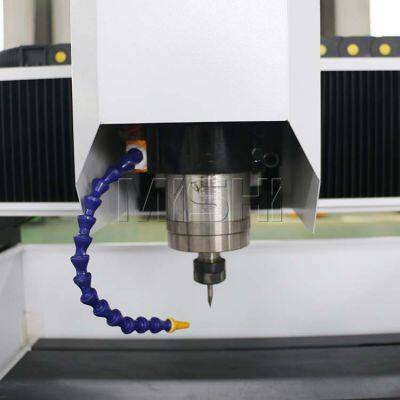

Detailed Images

Application

1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, aluminum, and plastics.

2.Our wood CNC milling machine can be widely applied to automotive, injection mold, ironware mold, and engrave mold industries.
3. Especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics, and words of the three-dimensional and outside surfaces sleeking of large size.

High Precision MINI CNC ROUTER

1. Ball screws transmission with reasonable structure , stable performance ,and good performance of loading.
2. Adopt water cooling spindle wit high rotary speed and low noise, ensure long life running.
3. Cast iron lathe bed, ensure machine to have excellent rigidity and high precision.
4. Can support many kinds of design software.
5. Induction limit switch can ensure the machine to safely travel .
6. Cast iron machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.

After sales service

We have professional pre-sales and after sales service Mingshi CNC team

1. 24/7 online service .
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free online technical support and install train.

Company Introduction

Shipping and Packing

Packaging Details1. Outside package: Standard export plywood case for CNC Router for advertising. 2. Inner package: Stretch film and plastic film for humidity.PortQingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen

FAQ

Q: How to install and maintain the machine? A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.

Q: What are the machine working environment requirements? A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.

Q: How many days do the goods ready to ship?A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.

Q: What is the mode of transportation of the products?A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.

Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 12 years
The response will be within 1 minute during working time, And within 6 hours during off duty time.

you haven't found the machine you need, don't hesitate to contact us too. We will do our best to give you the best suggestion. We can also supply products related to our machines
