Home > Products > disperser > AMM-MDS30 Research and development of commonly used pipeline circulation emulsifier - stainless steel material vacuum environment

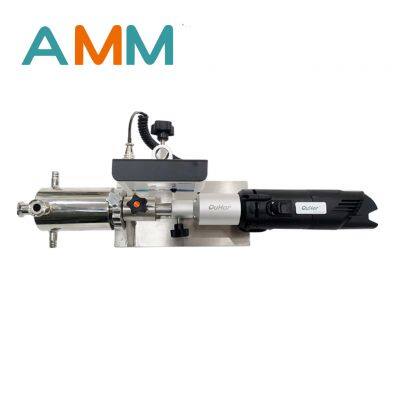

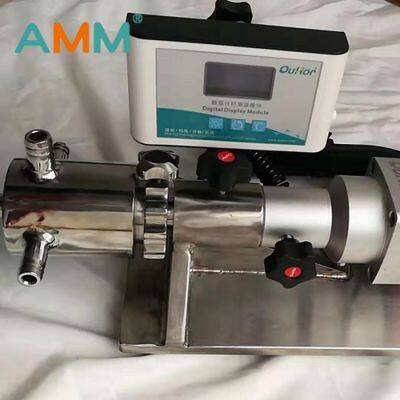

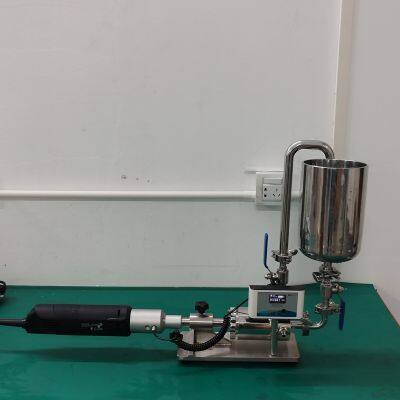

AMM-MDS30 Research and development of commonly used pipeline circulation emulsifier - stainless steel material vacuum environment
- T/T
You May Like
-
AMM-M25-Digital High shear digital emulsification machine - a commonly used high shear equipment in university research laboratories
-
AMM-M25 High shear emulsification homogenizer - stainless steel sanitary grade cream lotion dispersion preparation
-
AMM-M30-Digital High shear emulsification homogenizer - for emulsion polymer homogenization - can be used with vacuum environment
-
AMM-M30 Laboratory emulsifying machine - can be used with a variety of working heads - stirring ultrasonic vacuum
-
AMM-M90 Pilot scale agitated emulsifying homogenizer - used for mixing and dispersing cream emulsion in pharmaceutical industry
-
AMM-M60 Homogenizer for large capacity production in laboratory - customized emulsifying machine electric lift frequency conversion speed regulation system
Product Details
| Brand Name | AMM | Place of Origin | China | |
| Model Number | MDS30 | Certification | Provided | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 YEAR | |
| Dimension(L*W*H) | 540*120*190mm | Condition | New | |
| Product Type | Cosmetic | Voltage | 220V/50Hz | |
| Application | Liquid | Power(W) | 1050W | |
| Max. Loading Capacity | 1-30L/min | Additional Capabilities | Coating | |
| Mixer Type | Agitator |
Product Description
Application
Laboratory in-line stepless speed regulating high shear emulsifier/online high shear emulsification dispersing machine MDS30: high efficiency, lightweight, whole machine module structure, easy to operate, can run for a long time, easily meet a variety of high requirements of dispersion emulsification experiments. It can simulate online working conditions in the laboratory for cycle or online continuous processing, with the characteristics of efficient homogenization and dispersion
Features
High-speed motor imported from Germany, long-life design, can run stably for a long time for 4 hours and more
Infinitely variable speed control system, the speed can reach 28000rpm, providing you with a shear line speed of 27m/s
The whole machine has reasonable structural design, excellent material selection, light use and handheld operation
Highly modular design: in-line head wall design
Overload protection, double protective insulation, give you safety
The working head is made of stainless steel, which is reusable and can be flexibly assembled
Technical Data
Model: MDS30
Power 220V/50Hz |
Motor power 1050W |
Speed range 10000~28000rpm |
Volume range(H2O) 1-30L/min |
Viscosity max. 10000CP |
Speed control Electronic Stepless |
Standard working cavity Stainless steel jacketless working chamber |
Speed display Scale display (optional digital display) |
Standard Dispersing tool 25BCS |
Medium-contact material SUS316L |
Stirring element fastening Chuck |
Mechanical seal material SiC, FKM, ceramic |
Hygiene standard GMP medical standard |
Inlet and outlet diameter 14 (hose connection) |
Carton Dimensions 540*120*190mm |
Stand type Stainless steel standard |
Weight 10KG |
